YDT-35 Operating and Servicing Manual

18 HL066(EN) ISSUE 1, 05/2015

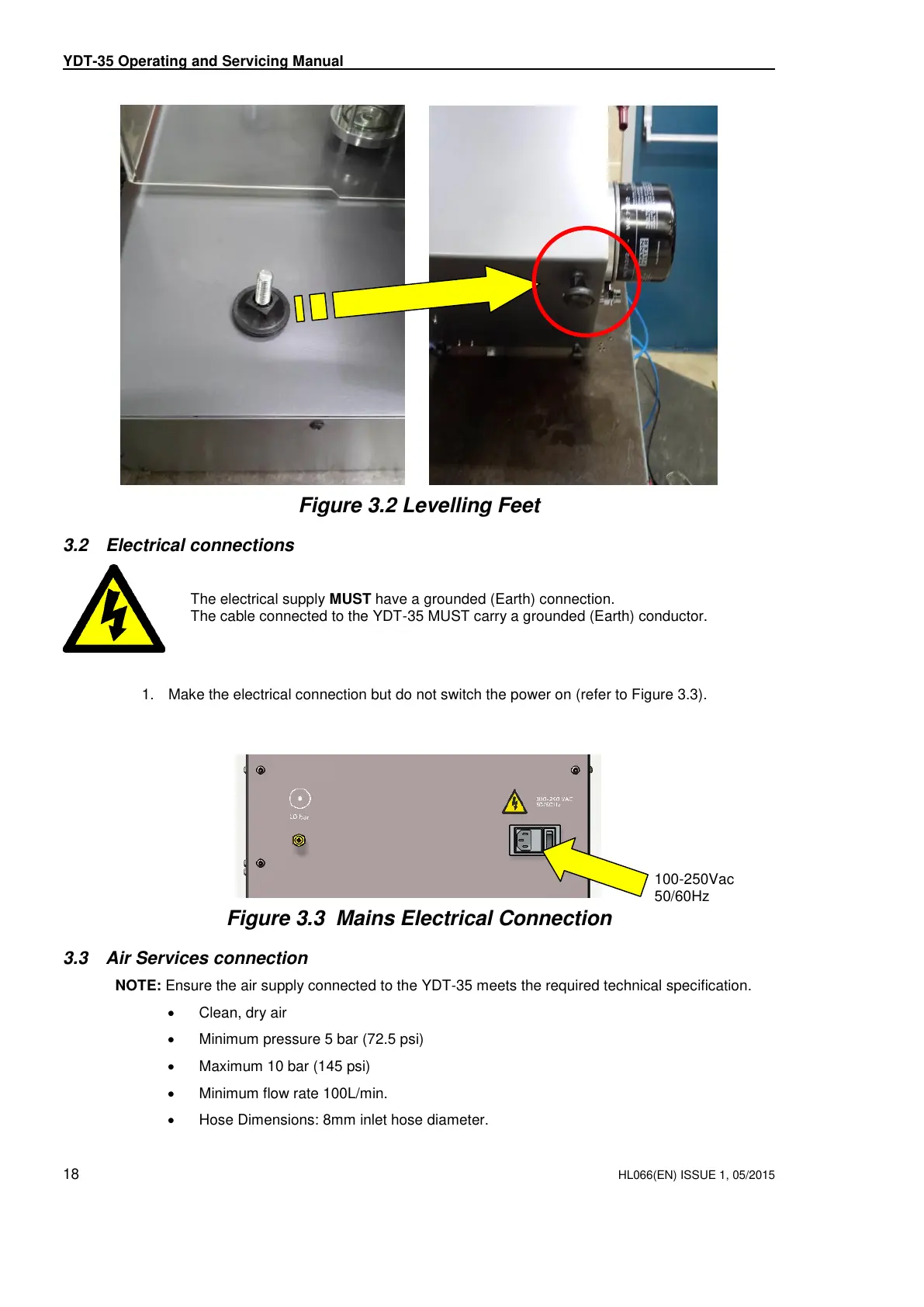

Figure 3.2 Levelling Feet

3.2 Electrical connections

The electrical supply MUST have a grounded (Earth) connection.

The cable connected to the YDT-35 MUST carry a grounded (Earth) conductor.

1. Make the electrical connection but do not switch the power on (refer to Figure 3.3).

Figure 3.3 Mains Electrical Connection

3.3 Air Services connection

NOTE: Ensure the air supply connected to the YDT-35 meets the required technical specification.

 Clean, dry air

 Minimum pressure 5 bar (72.5 psi)

 Maximum 10 bar (145 psi)

 Minimum flow rate 100L/min.

 Hose Dimensions: 8mm inlet hose diameter.

100-250Vac

50/60Hz

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
