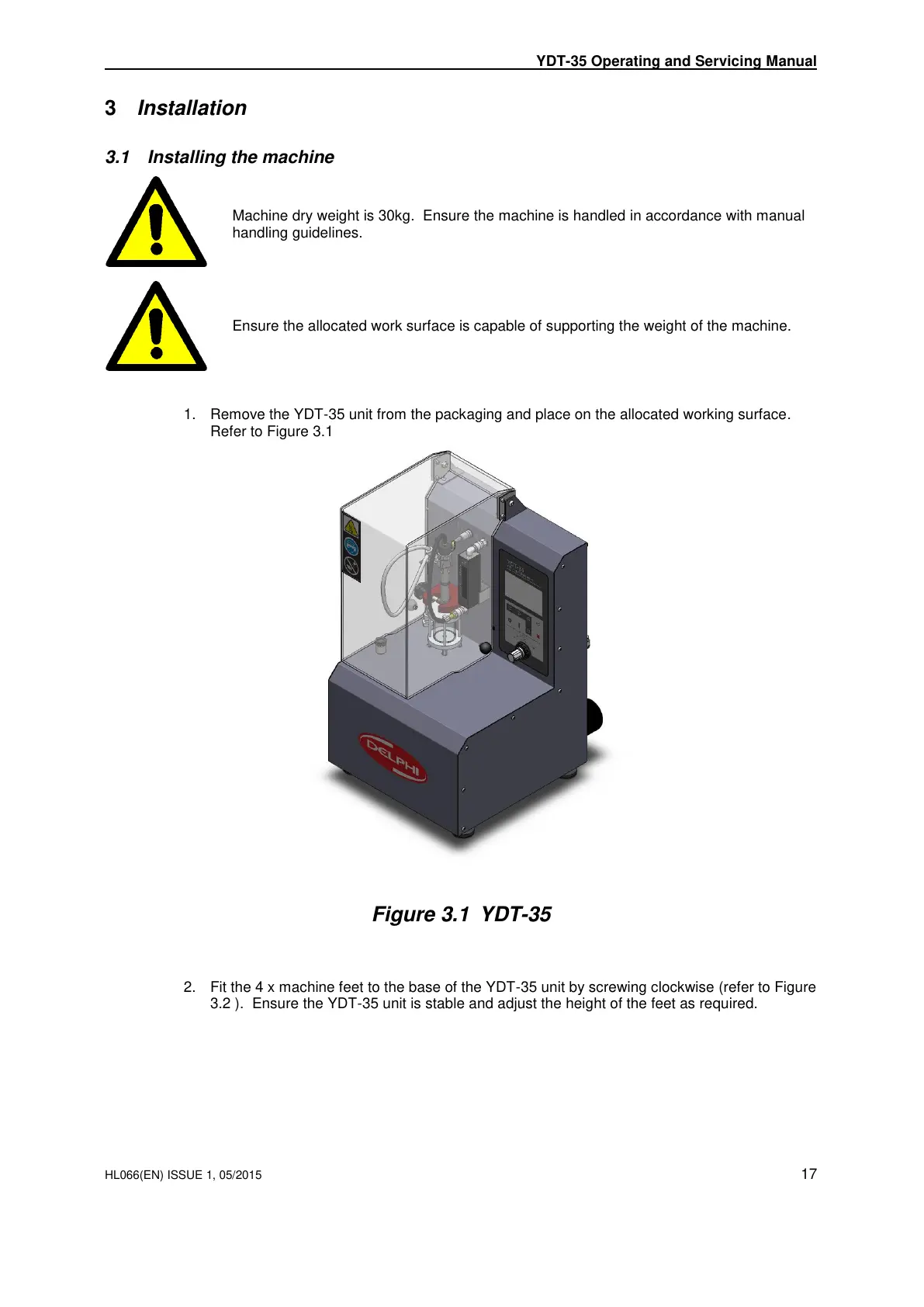

YDT-35 Operating and Servicing Manual

HL066(EN) ISSUE 1, 05/2015 17

3 Installation

3.1 Installing the machine

Machine dry weight is 30kg. Ensure the machine is handled in accordance with manual

handling guidelines.

Ensure the allocated work surface is capable of supporting the weight of the machine.

1. Remove the YDT-35 unit from the packaging and place on the allocated working surface.

Refer to Figure 3.1

Figure 3.1 YDT-35

2. Fit the 4 x machine feet to the base of the YDT-35 unit by screwing clockwise (refer to Figure

3.2 ). Ensure the YDT-35 unit is stable and adjust the height of the feet as required.

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
