YDT-35 Operating and Servicing Manual

20 HL066(EN) ISSUE 1, 05/2015

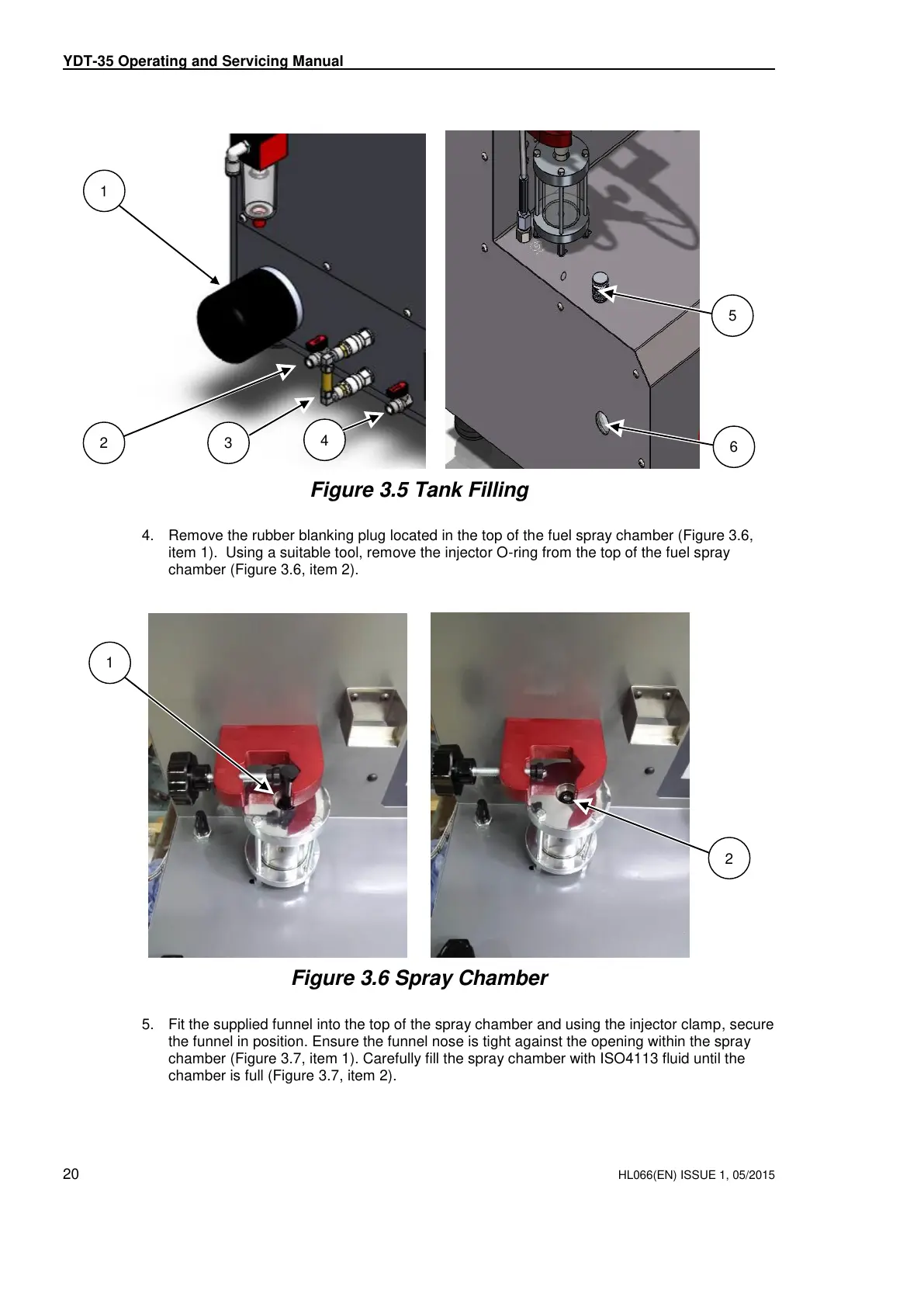

Figure 3.5 Tank Filling

4. Remove the rubber blanking plug located in the top of the fuel spray chamber (Figure 3.6,

item 1). Using a suitable tool, remove the injector O-ring from the top of the fuel spray

chamber (Figure 3.6, item 2).

Figure 3.6 Spray Chamber

5. Fit the supplied funnel into the top of the spray chamber and using the injector clamp, secure

the funnel in position. Ensure the funnel nose is tight against the opening within the spray

chamber (Figure 3.7, item 1). Carefully fill the spray chamber with ISO4113 fluid until the

chamber is full (Figure 3.7, item 2).

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
