YDT-35 Operating and Servicing Manual

HL066(EN) ISSUE 1, 05/2015 21

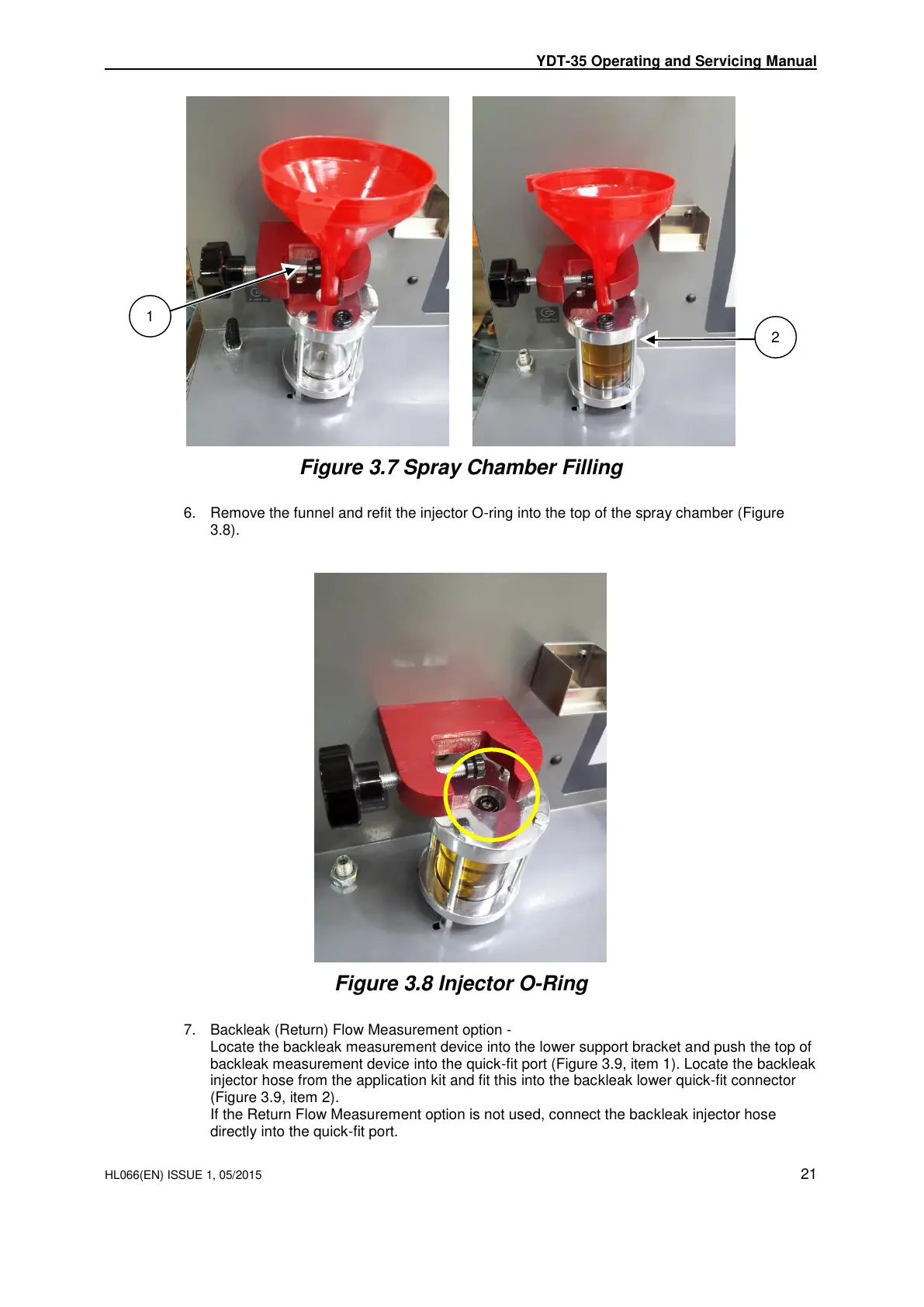

Figure 3.7 Spray Chamber Filling

6. Remove the funnel and refit the injector O-ring into the top of the spray chamber (Figure

3.8).

Figure 3.8 Injector O-Ring

7. Backleak (Return) Flow Measurement option -

Locate the backleak measurement device into the lower support bracket and push the top of

backleak measurement device into the quick-fit port (Figure 3.9, item 1). Locate the backleak

injector hose from the application kit and fit this into the backleak lower quick-fit connector

(Figure 3.9, item 2).

If the Return Flow Measurement option is not used, connect the backleak injector hose

directly into the quick-fit port.

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
