YDT-35 Operating and Servicing Manual

HL066(EN) ISSUE 1, 05/2015 31

4.3 Control Panel

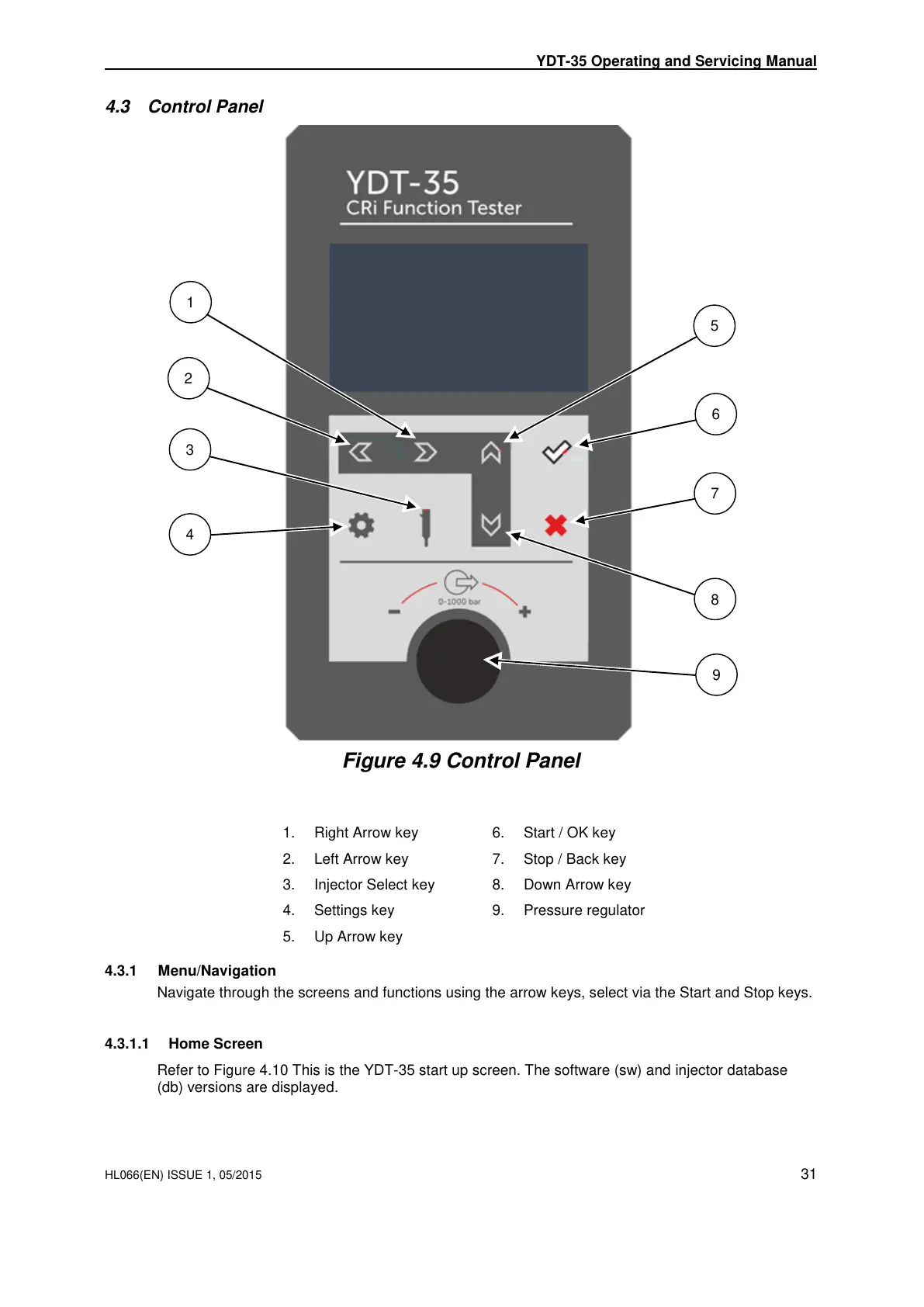

Figure 4.9 Control Panel

1. Right Arrow key

2. Left Arrow key

3. Injector Select key

4. Settings key

5. Up Arrow key

6. Start / OK key

7. Stop / Back key

8. Down Arrow key

9. Pressure regulator

4.3.1 Menu/Navigation

Navigate through the screens and functions using the arrow keys, select via the Start and Stop keys.

4.3.1.1 Home Screen

Refer to Figure 4.10 This is the YDT-35 start up screen. The software (sw) and injector database

(db) versions are displayed.

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
