Delta AH Series Hardware Manual

Chapter 2 System Configuration
2-3
2
_

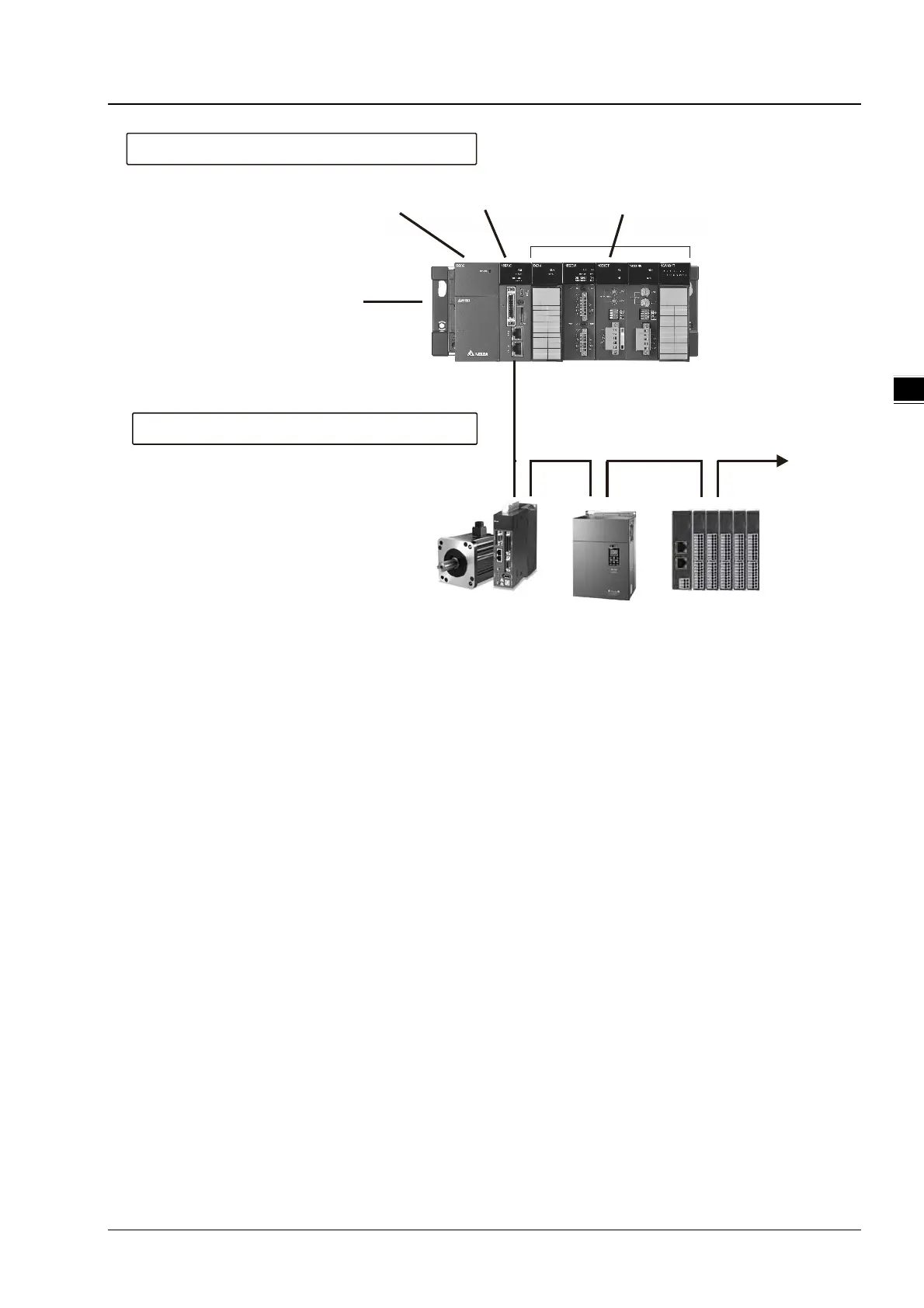

AH500 Series Module Configuration
Power supply module
AH Motion CPU
Digital I/O, Special I/O
Motion backplane
AH Motion CPU Network Configuration
EtherCAT network
configuration(AH10EMC)
Servo Drives
Inverters General-prupose slaves
EtherCAT slaves
b
C
2.1.1. AH Motion CPU Network Configuration
AHxxEMC – EtherCAT
The EtherCAT network configuration includes AHxxEMC which is the core motion CPU, an AH motion backplane*, and an
AH500 series power supply module. You can connect the built-in EtherCAT master port to the EtherCAT slave devces.
The AHxxEMC can also be used as a motion control module in an AH500 series PLC configuration. You can install it onto
the AH500 series main backplane to perform motion control function.
For more information about this application, refer to AH500 Motion Control Module Manual.
*Note: The AH motion backplane must be used together with AHxxEMC when you use AHxxEMC as a motion CPU.
