Delta AH Series - Installing a Module

Chapter 4 Installation and Wiring
4-9
4
_
 Removing a DIN rail

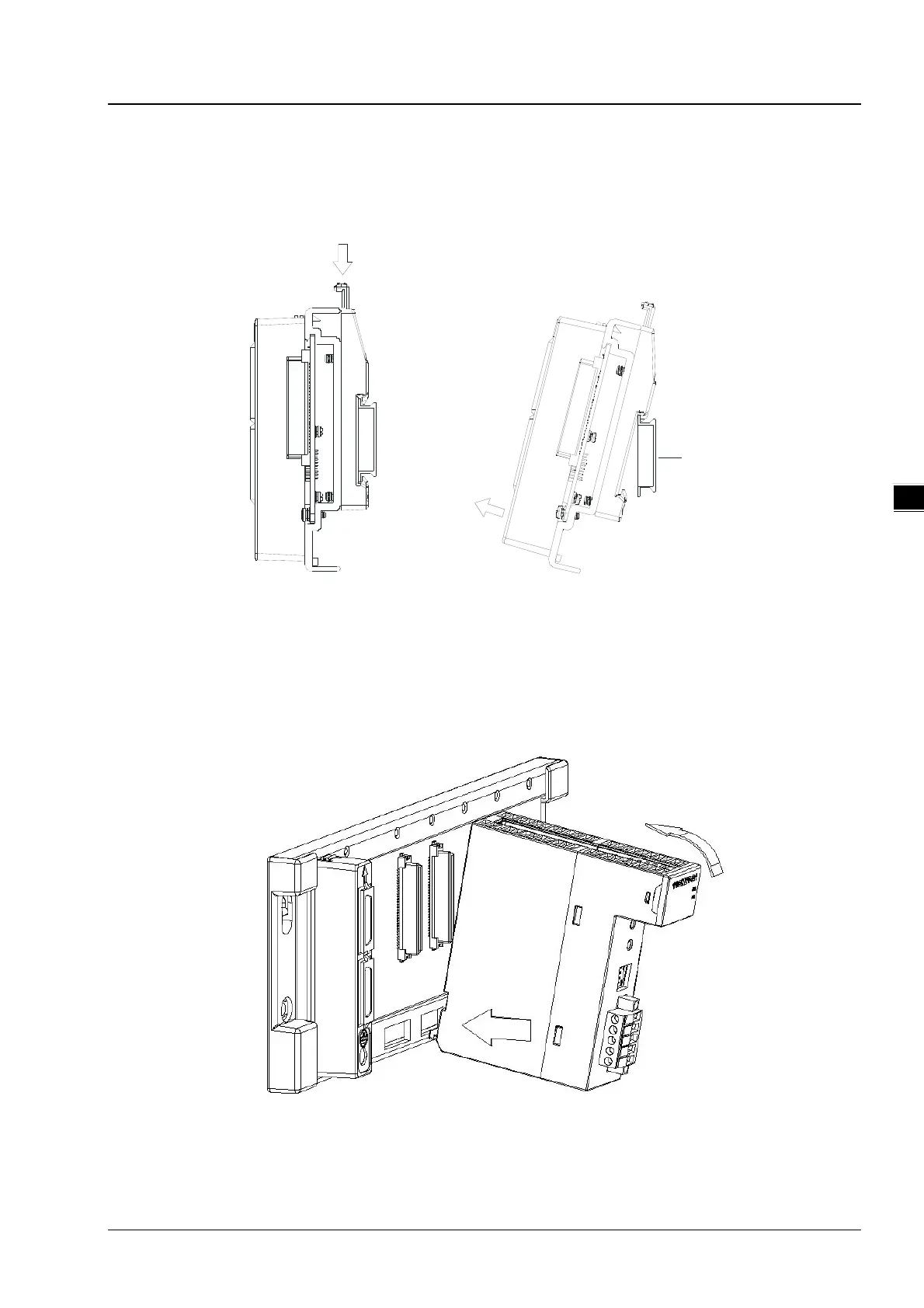

Step 1: Press the hook in the direction indicated by the arrow.
Step 2: Remove the backplane.
DIN rail
1
2
4.3.3 Installing a Module
Insert a module into a slot, make sure that the module is installed on the backplane properly, and tighen the the screw, as
illustrated below.
1. Insert the hook under the module into the hole in the backplane.
2. Push the module in the direction indicated by the arrow until it clicks.
