Chapter 3 Wiring ASDA-A2R Series
3-54 Revision December. 2014

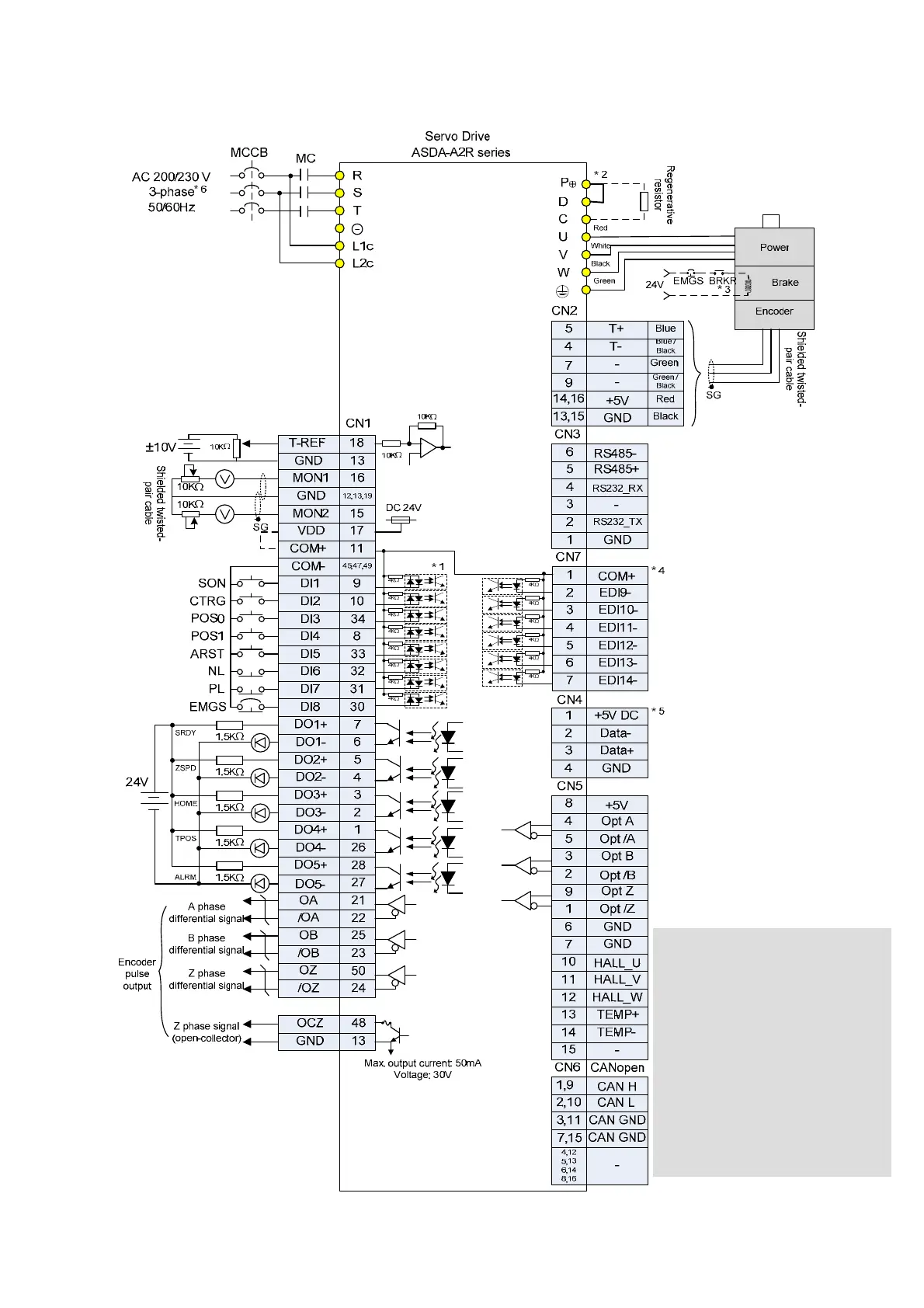

3.10.2 Position (PR) Mode Standard Wiring
Note:
*1: Please refer to section 3.3.3 for the
wiring of C9~C12 SINK / SOURCE
mode.
*2: No built-in regenerative resistor for
100W, 200W (or below) servo drives.
*3: Brake wiring has no polarity.
*4: Extension DI (selective)
*5: For USB connection. It connects to
personal computer.
*6: Model that below 1.5kW can apply
single-phase power.
To Next Page
