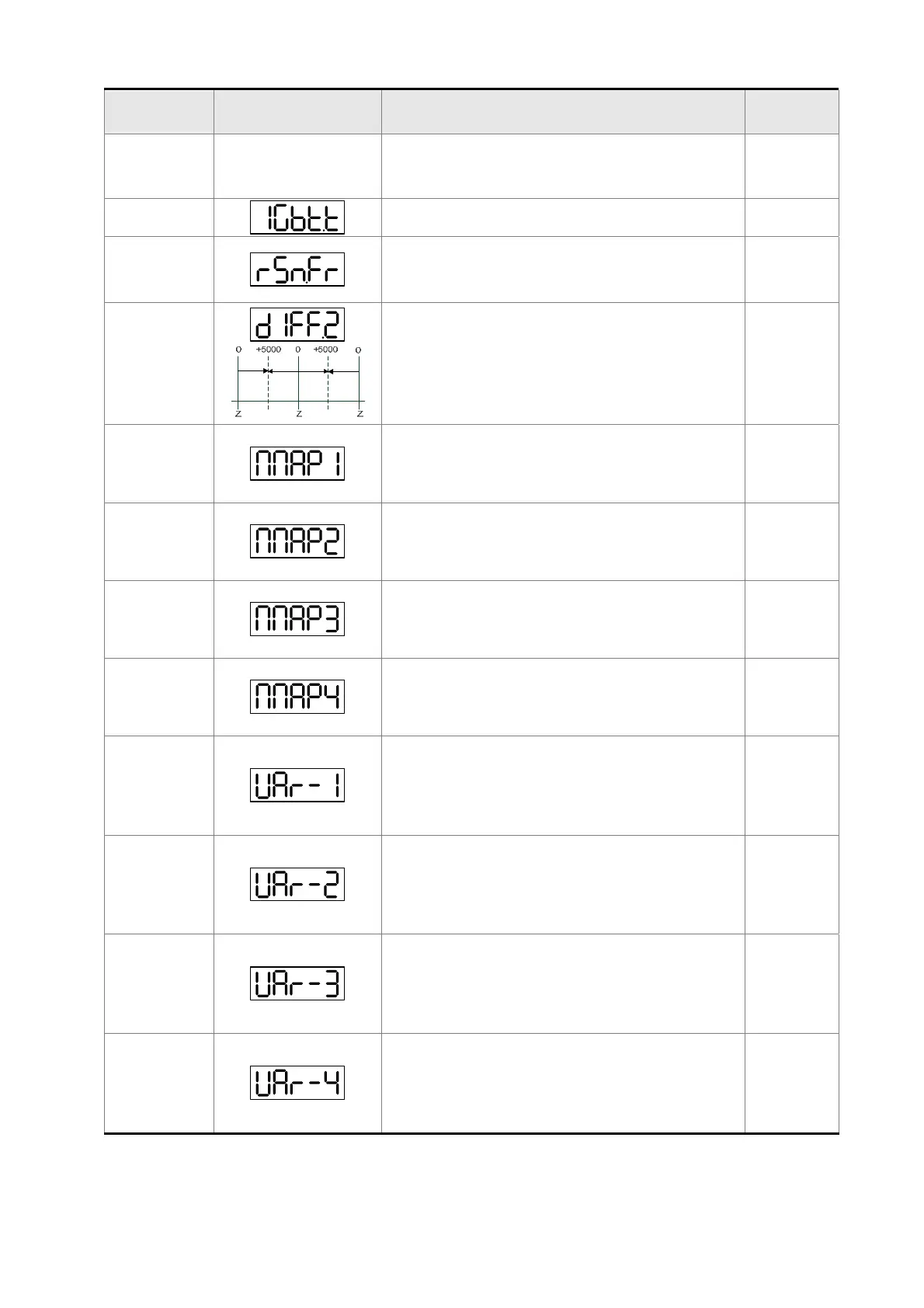

P0-02
Setting Value
Monitor Displayed
Symbol
Description Unit
(Note: If it shows 130, it means the actual
inertia is 13.0 and the actual weight is
13kg)
Linear
motor
[0.1Kg]
16 IGBT temperature
[℃]
17
Resonance frequency (Low byte is the first
resonance and high byte is the second
one).
[Hz]
18
The absolute pulse number of encoder Z
phase equals to the homing value, 0. It will
be +5000 or -5000 pulse when rotating in
forward or reverse direction.
-
19
Mapping parameter #1: shows the content
of parameter P0-25
(specify the mapping target by P0-35)
-
20
Mapping parameter #2: shows the content
of parameter P0-26
(specify the mapping target by P0-36)
-
21
Mapping parameter #3: shows the content
of parameter P0-27
(specify the mapping target by P0-37)
-
22
Mapping parameter #4: shows the content
of parameter P0-28
(specify the mapping target by P0-38)
-
23
Monitor variable #1: shows the content of
parameter P0-09
(specify the monitor variable code by
P0-17)
-
24
Monitor variable #2: shows the content of
parameter P0-10
(specify the monitor variable code by
P0-18)
-
25
Monitor variable #3: shows the content of
parameter P0-11
(specify the monitor variable code by
P0-19)
-
26
Monitor variable #4: shows the content of
parameter P0-12
(specify the monitor variable code by
P0-20)
-
