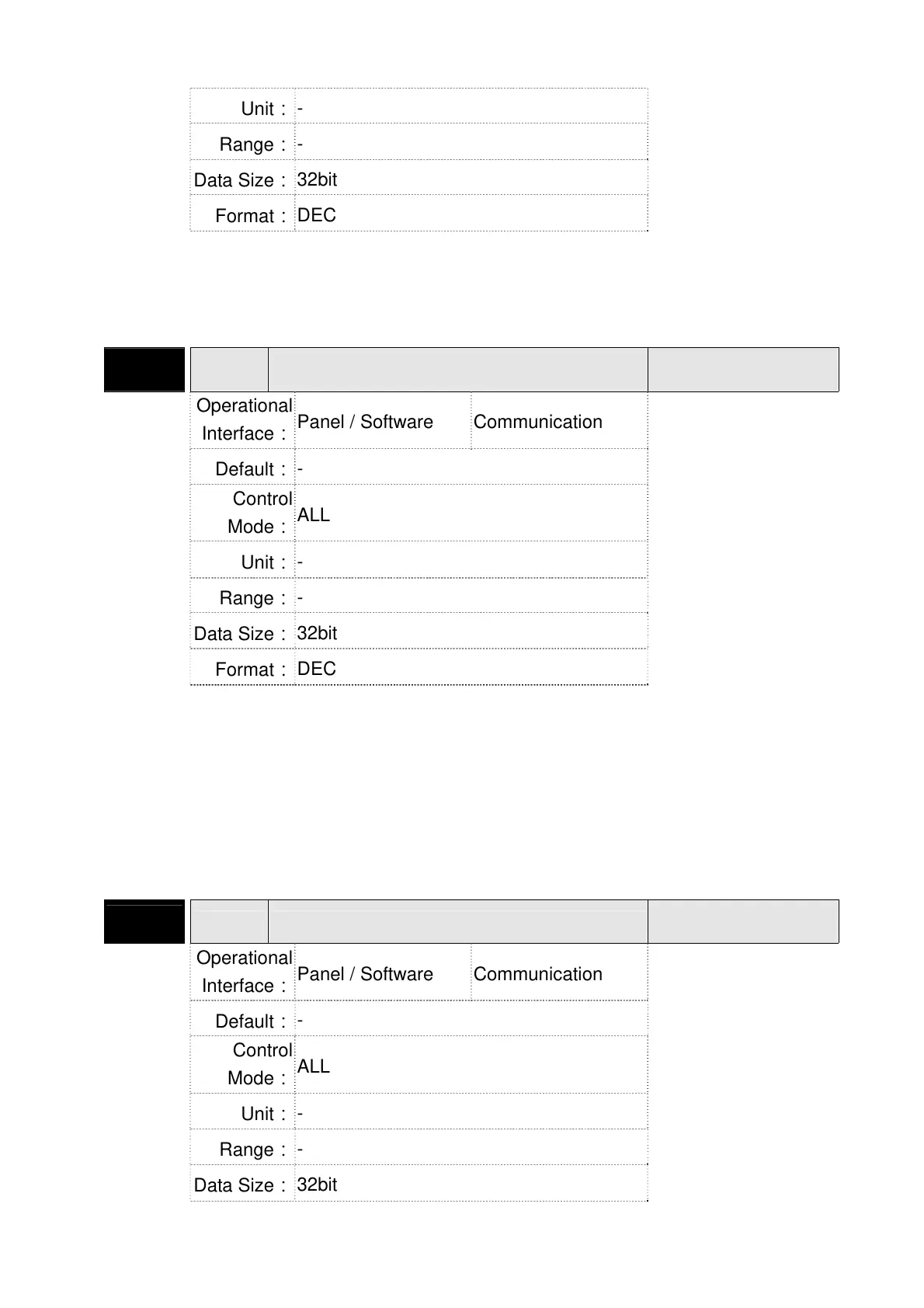

Chapter 8 ParametersASDA-A2R Series
8-24 Revision December, 2014
Unit
-
Range
-
Data Size
32bit
Format
DEC
Settings
The setting value which is set by P0-19 should be monitored via
P0-11. (Please refer to Chapter 7.2.1, Description of Monitor
Variable for the setting value.) Set P0-02 to 25, the panel displays
VAR-3 first, and then shows the content of P0-11.
P0-12
CM4 Status Monitor Register 4
Address: 0018H
0019H
Operational
Interface
Panel / Software Communication
Related Section:
4.3.5
Default
-
Control
Mode
ALL
Unit
-
Range
-
Data Size
32bit
Format
DEC
Settings
The setting value which is set by P0-20 should be monitored via
P0-12. (Please refer to Chapter 7.2.1, Description of Monitor
Variable for the setting value.) Set P0-02 to 26, the panel displays
VAR-4 first, and then shows the content of P0-12.
P0-13
CM5 Status Monitor Register 5
Address: 001AH
001BH
Operational
Interface
Panel / Software Communication
Related Section:
4.3.5
Default
-
Control
Mode
ALL
Unit
-
Range
-
Data Size
32bit
