Chapter 8 ParametersASDA-A2R Series
8-144 Revision December, 2014

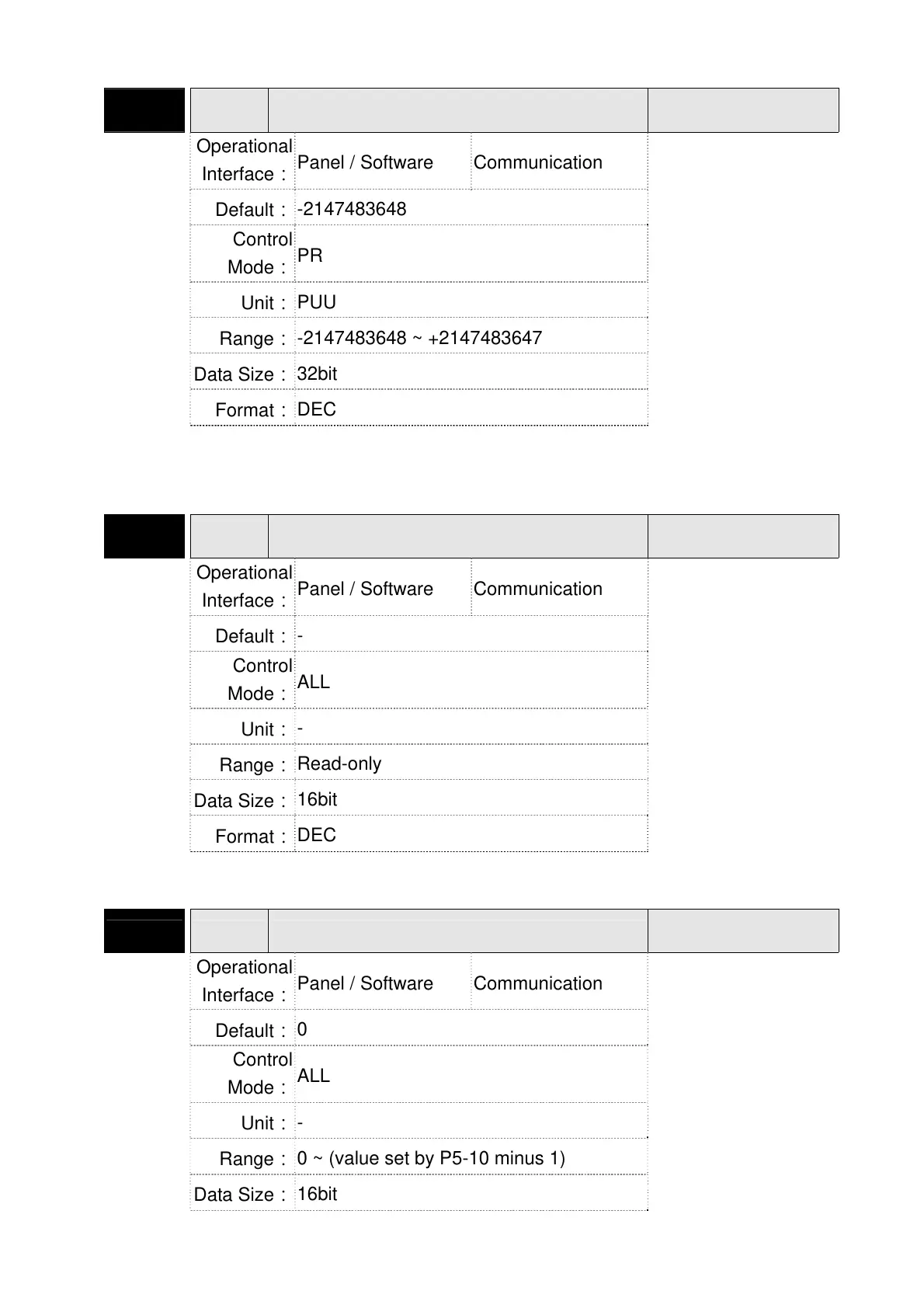

P5-09 SWLN Reverse Software Limit
Address: 0512H
0513H
Operational
Interface
Panel / Software Communication
Related Section: -
Default
-2147483648
Control
Mode
PR
Unit
PUU
Range
-2147483648 ~ +2147483647
Data Size
32bit
Format
DEC
Settings
In PR mode, if the motor rotates in reverse direction and its
command position exceeds the setting value of P5-09, it will
trigger AL.285.
P5-10
AYSZ
Data ArrayData Size
Address: 0514H
0515H
Operational
Interface
Panel / Software Communication
Related Section:
7.2
Default
-
Control
Mode
ALL
Unit
-
Range
Read-only
Data Size
16bit
Format
DEC
Settings
Data size (N x 32 bits) means size N of data array
P5-11
AYID Data Array - Address of Reading / Writing
Address: 0516H
0517H
Operational
Interface
Panel / Software Communication
Related Section:
7.2
Default
0
Control
Mode
ALL
Unit
-
Range
0 ~ (value set by P5-10 minus 1)
Data Size
16bit
