Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-163

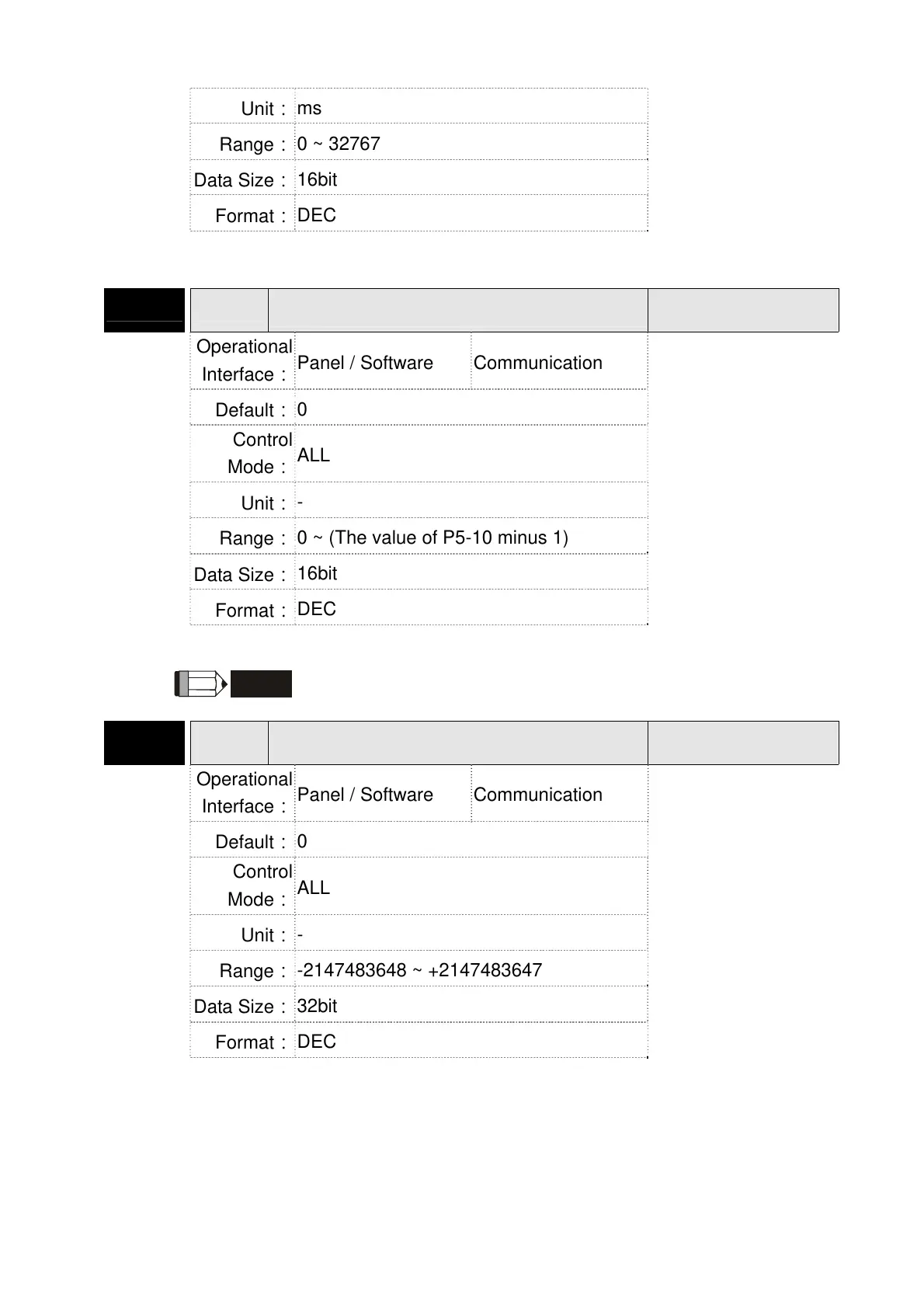

Unit：
ms
Range：
0 ~ 32767
Data Size：
16bit
Format：
DEC
Settings：
The 16
th
Delay Time of PR mode
P5-56 CMST
COMPARE－Start Address of Data Array
Address: 0570H
0571H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11.2
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
0 ~ (The value of P5-10 minus 1)
Data Size：
16bit
Format：
DEC
Settings：
The first COMPARE data is saved in the address of data array.
NOTE
It is writable only when COMPARE stops (please refer to P5-59)
P5-57■
CMAX
COMPARE－Axis Position
Address: 0572H
0573H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11.2
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
-2147483648 ~ +2147483647
Data Size：
32bit
Format：
DEC
Settings：
The axis position of COMPARE pulse source is displayed here.
It is writable only when COMPARE stops (please refer to P5-59)
