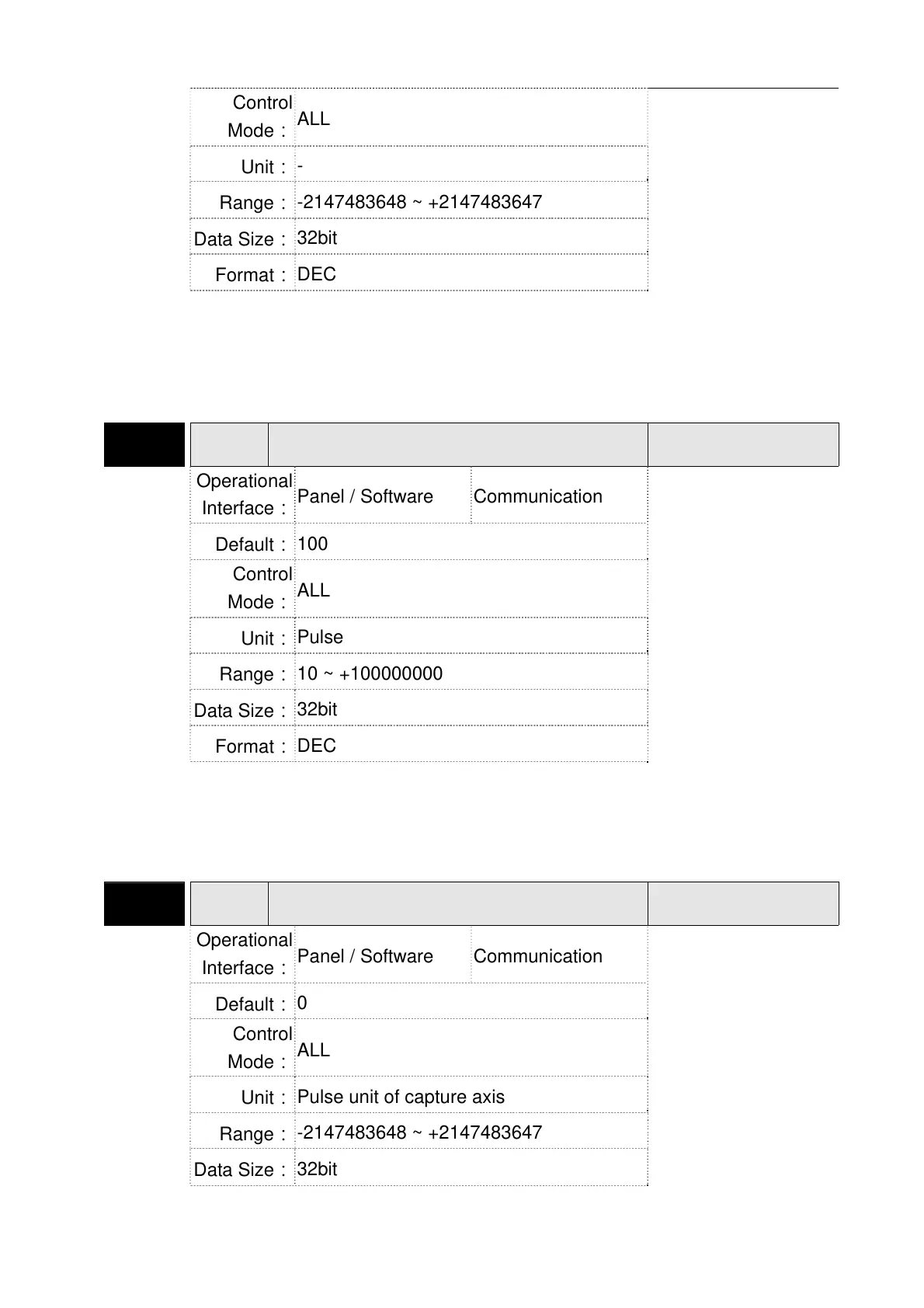

Chapter 8 ParametersASDA-A2R Series
8-178 Revision December, 2014
Control
Mode
ALL
Unit
-
Range
-2147483648 ~ +2147483647
Data Size
32bit
Format
DEC
Settings
The position of this axis will synchronize with CAP signal. That is
to say, when activating CAP every two times, the motor moving
distance of this axis is the value of P5-78. (There is no
accumulative error and only in single-way operation) The
synchronous capture axis can be the source of Master.
P5-78 CSDS
The Interval Pulse Number between Each
Synchronous Capture Axis
Address: 059CH
059DH
Operational
Interface
Panel / Software Communication
Related Section: -
Default
100
Control
Mode
ALL
Unit
Pulse
Range
10 ~ +100000000
Data Size
32bit
Format
DEC
Settings
It is the moving distance of synchronous capture axis between
two CAP actions.
The new value can be written into the parameter not until CAP is
disabled (P5-39, X0=0).
P5-79
CSDS
Error Pulse Number of Synchronous
Capture Axis
Address: 059EH
059FH
Operational
Interface
Panel / Software Communication
Related Section: -
Default
0
Control
Mode
ALL
Unit
Pulse unit of capture axis
Range
-2147483648 ~ +2147483647
Data Size
32bit
