Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-259
The filter setting of AB pulse from signal converter box:
0 = BYPASS
1 = 16M
2 = 8M
3 = 3M

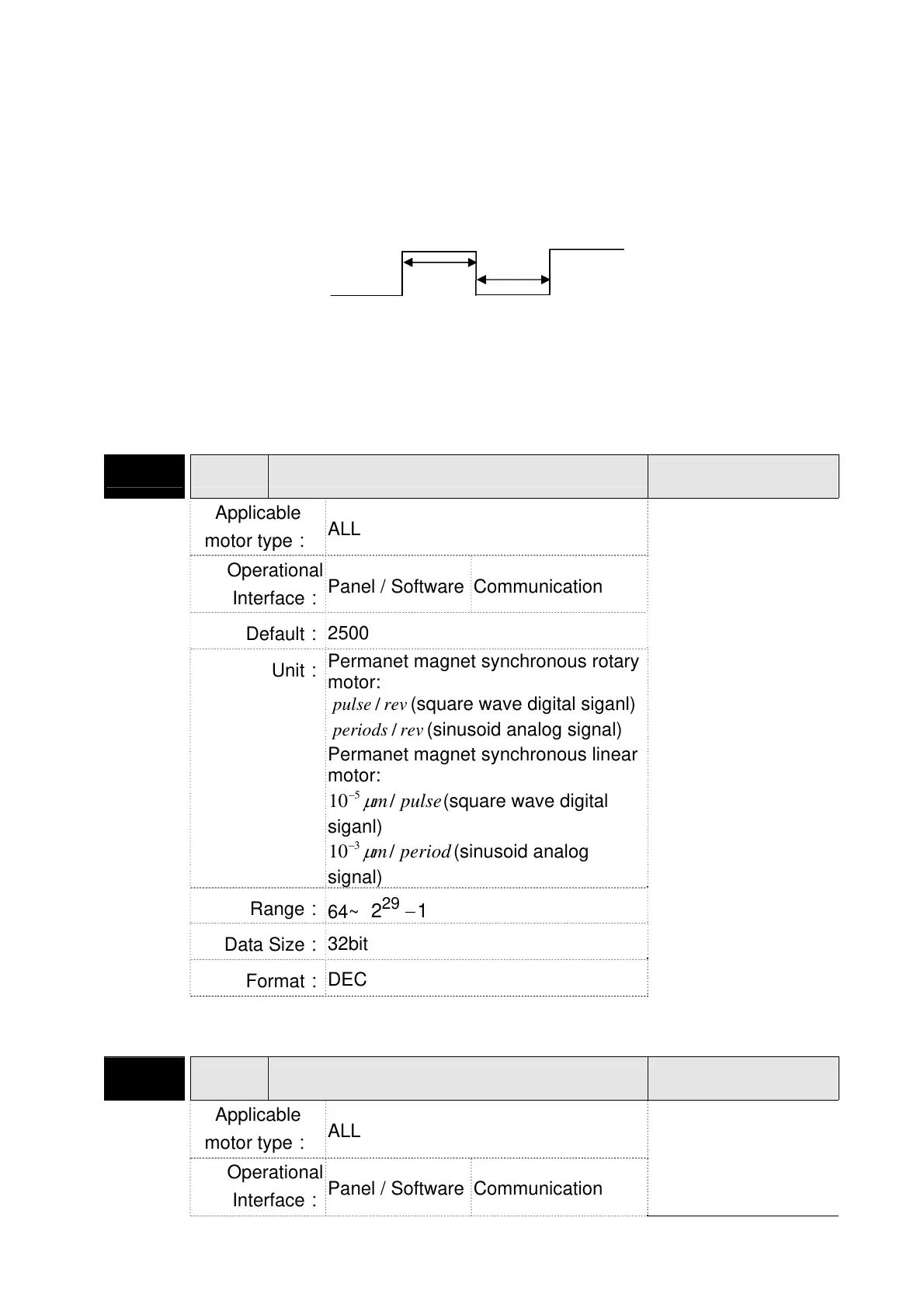

Take pulse width 16Mhz(62.5ns) as the example,
When the width of single-phase pulse is smaller than 62.5ns,
the signal will be filtered.
The setting of signal source:
0 = comes from CN2
1 = comes from CN5
PM-04 Encoder Resolution
Address:
Applicable
motor type：
ALL
Related Section: -
Operational
Interface：
Panel / Software Communication
Default：
2500
Unit：
Permanet magnet synchronous rotary
motor:
revpulse /
(square wave digital siganl)
revperiods /
(sinusoid analog signal)
Permanet magnet synchronous linear
motor:
pulsem/10
5


(square wave digital
siganl)
periodm/10
3


(sinusoid analog
signal)
Range：
64~
12
29

Data Size：
32bit
Format：
DEC
Settings：
PM-05 The Interpolation of Signal Converter Box
Address:
Applicable
motor type：
ALL
Related Section: -
Operational
Interface：
Panel / Software Communication
62.5ns
62.5ns
