Delta C2000 Plus Series User Manual

Chapter 16 PLC Function ApplicationsC2000 Plus
16-9

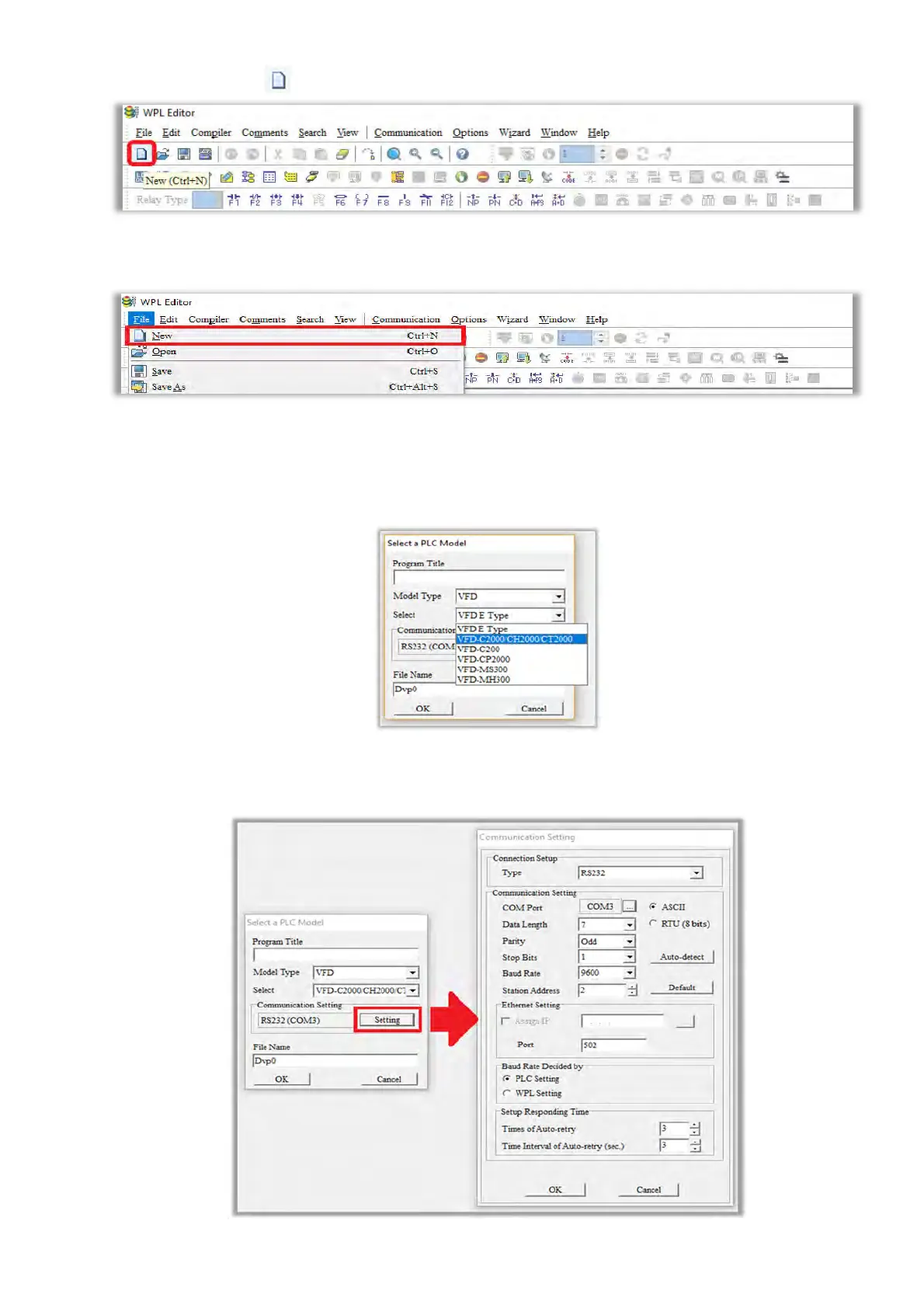

Step 3: Click on the icon on the toolbar: opens new file (Ctrl+N), see figure 16-4 below
Figure 16-4
NOTE: You can also find “New file (N) (Ctrl+N)” in the "File (F)", as shown in figure 16-5 below.
Figure 16-5
Step 4: The "Device settings" window will appear after clicking, see figure 16-6 below. You can now
enter the project title and filename, and select the device and communication settings to be
used.
Figure 16-6
Communications settings: Perform settings in accordance with the desired communications method.
See figure 16-7 below.
Figure 16-7

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
