Delta C2000 Plus Series User Manual

Chapter 16 PLC Function ApplicationsC2000 Plus
16-138
Special D Description of Function R/W
D1074
Error code of master error
0: No error
1: Slave station setting error
2: Synchronizing cycle setting error (too small)
R
D1075 Reserved -
D1076 SDO error message (main index value) R
D1077 SDO error message (secondary index value) R
D1078 SDO error message (error code L) R
D1079 SDO error message (error code H) R

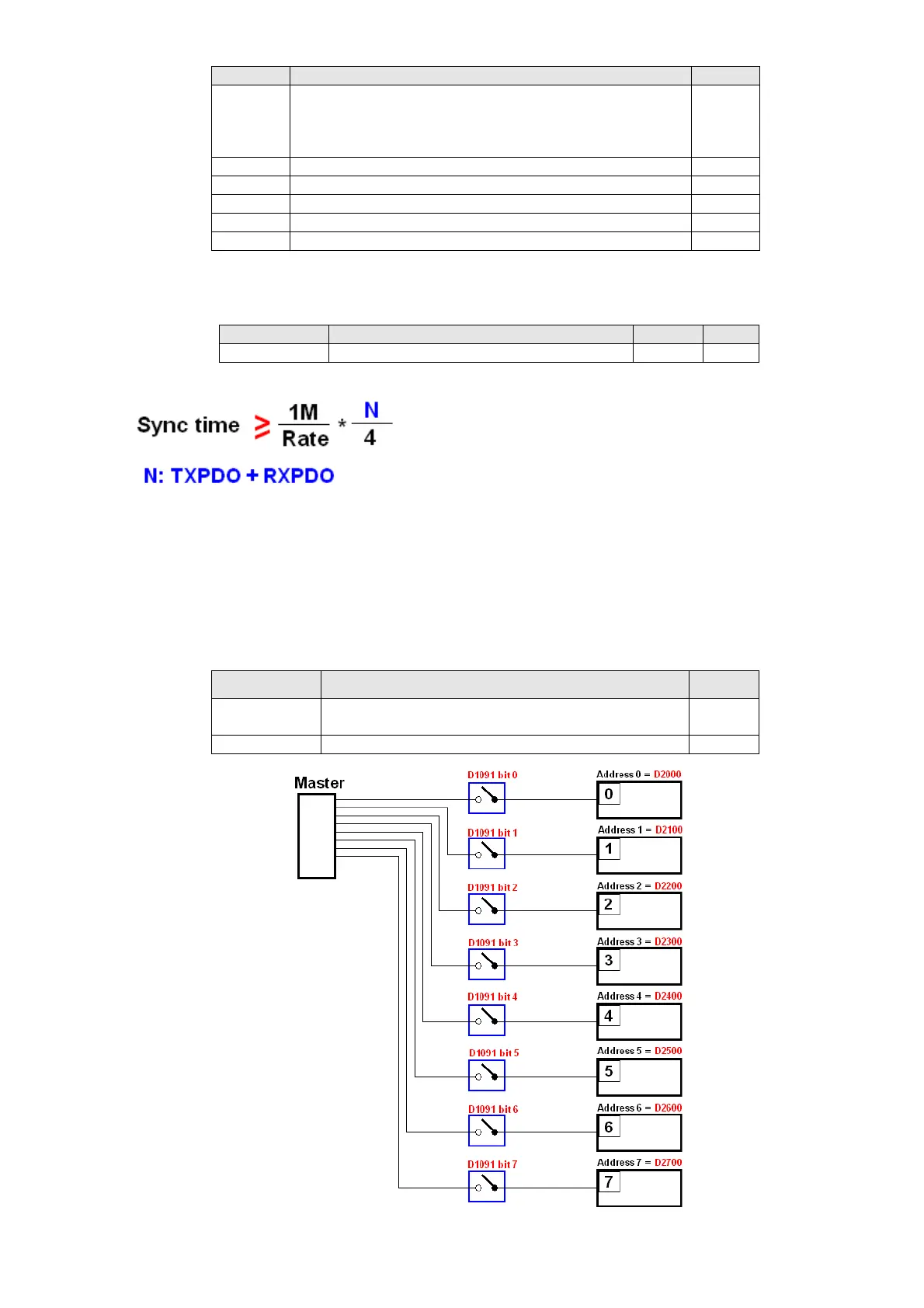

The second area is for basic CANopen settings: (the PLC must have stopped when this area
is used to make settings)
We must set the information exchange time for the master and slave station,
Special D Description of Function Default: R/W
D1090 Synchronizing cycle setting 4 RW
Use D1090 to perform settings; setting time relationships include:
For instance, when communications speed is 500K, TXPDO + RXPDO have 8 sets, and
synchronizing time will require more than 4 ms
We must also define how many slave stations will be opened. D1091 is the channel for defining
station opening, and D2000+100*n is the station number defining this channel. See the detailed
explanation below.
Slave station number n=0–7
Special D Description of Function R/W
D1091
Sets slave station On or Off (bit 0-bit 7 correspond to
slave stations number 0-7)
RW
D2000+100*n Slave station number RW

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
