Frame H
Applicable models: VFD2800C43A-00; VFD3150C43A-00; VFD3550C43A-00; VFD4000C43A-00;
VFD4500C43A-00; VFD5000C43A-00; VFD5600C43A-00; VFD5000C43C-21; VFD5600C43C-21
Model『MKC-HN1CB』
ITEM Description Qty.
1 Screw M6*1.0*25L 8
2 Screw M8*1.25*30L 3
3 NUT M8 4
4 NUT M10 4
5 Bushing Rubber 28 4
6 Bushing Rubber 44 2
7 Bushing Rubber 102 4
8 Bushing Rubber 130 4
9 Conduit box cover 1 1
10 Conduit box cover 2 2
11 Conduit box cover 3 2
12 Conduit box cover 4 2
13 Conduit box base 1
14 Accessories 1 2
15 Accessories 2 1
ITEM 15
ITEM 7
ITEM 11
ITEM 5
ITEM 8
ITEM 8
ITEM 5
ITEM 8
ITEM 8
ITEM 7
ITEM 6
ITEM 7
ITEM 11
ITEM 6
ITEM 5
ITEM 5
ITEM 10
ITEM 14
ITEM 7
ITEM 12
ITEM 12
ITEM 13
ITEM 9
ITEM 14
ITEM 10

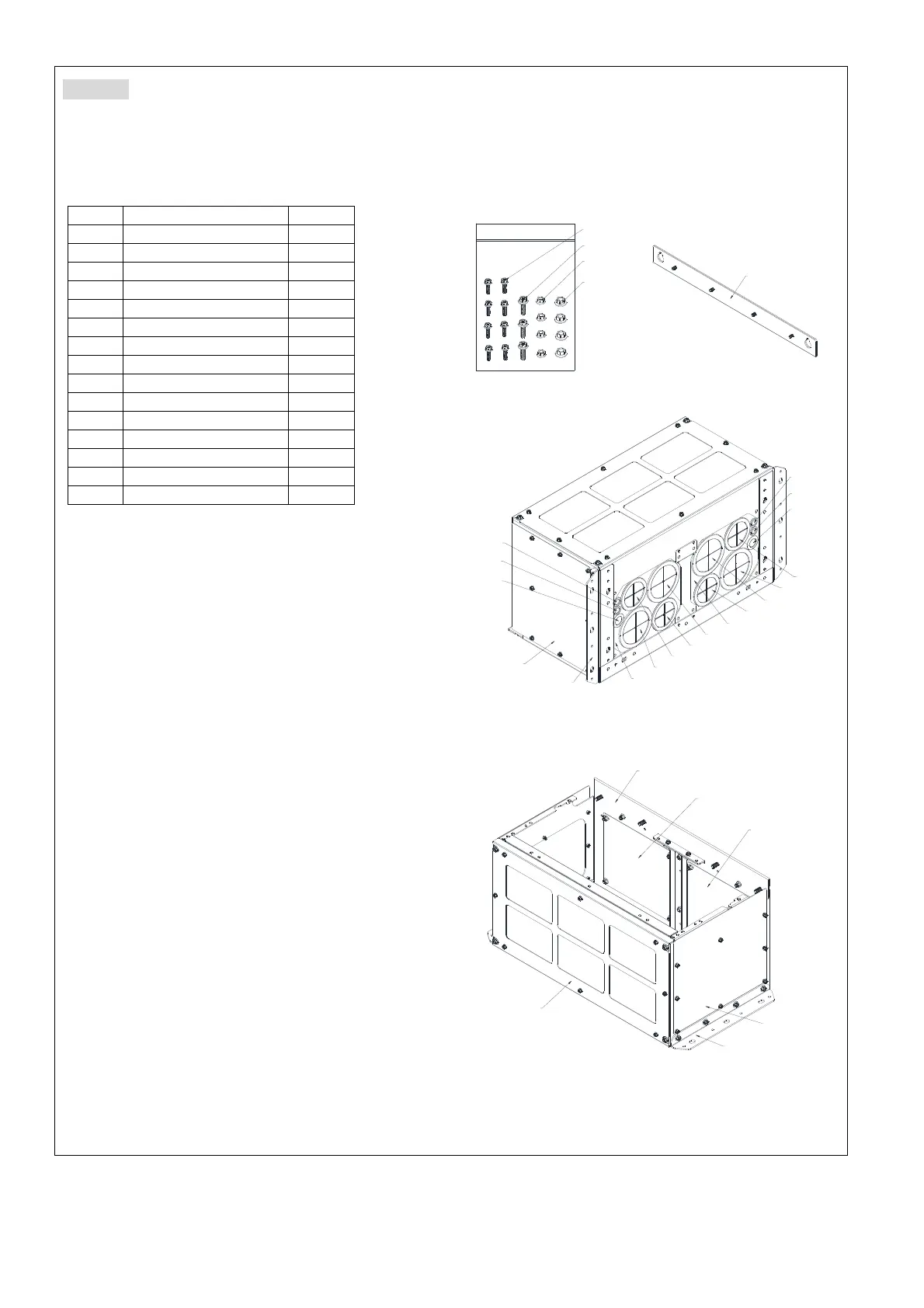

Figure 7-92
Table 7-92
ITEM 2
ITEM 1
ITEM 4
ITEM 3
