Chapter 7 Optional AccessoriesC2000 Plus
7-124

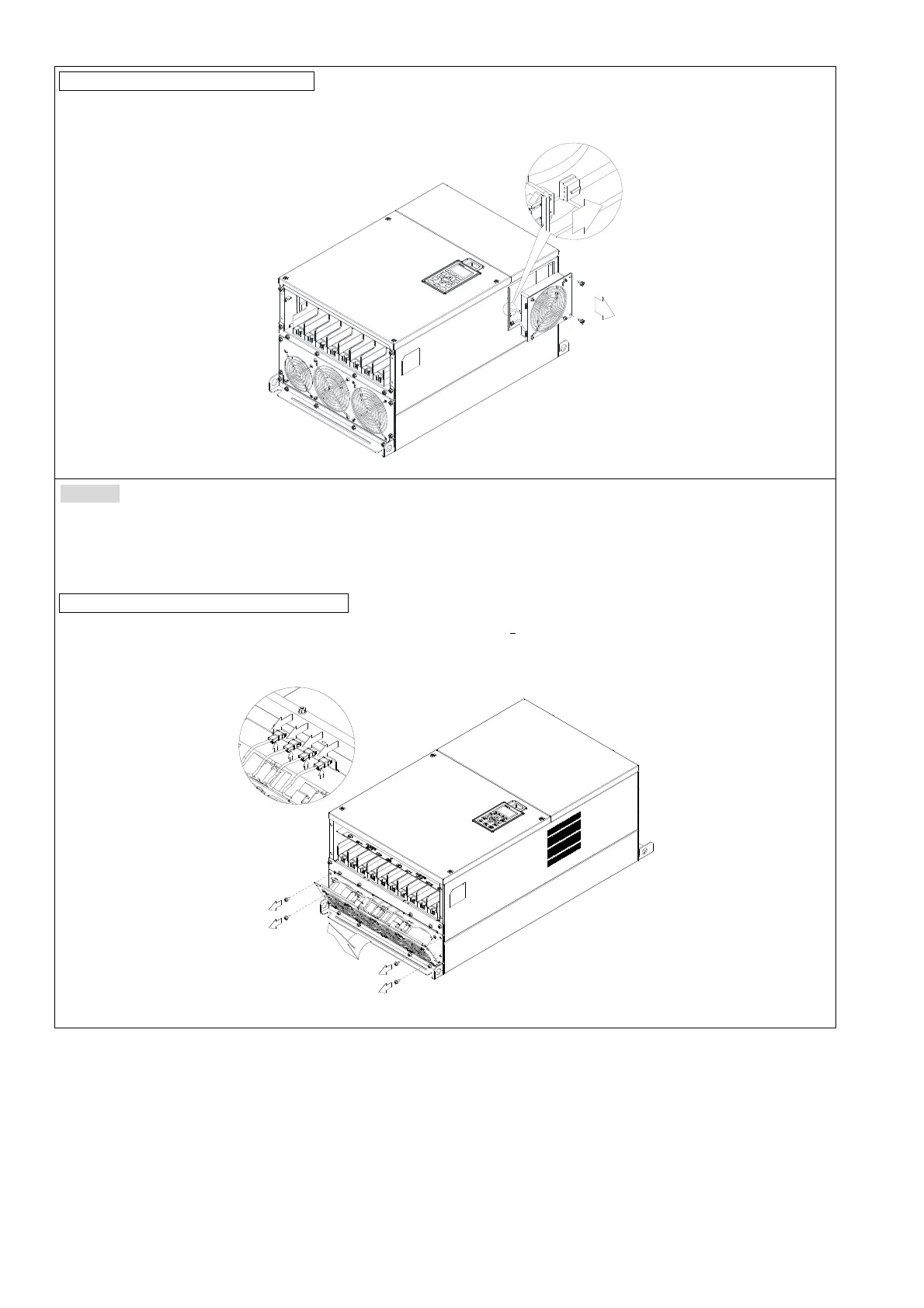

Model “MKC-EFKB” Capacitor Fan
1. Loosen screw 1–2 and disconnect fan power and pull out the fan. (As shown in the enlarged picture).
Screw 1–2 Torque: 24–26 kg-cm / (20.8–22.6 lb-in.) / (2.4–2.5 Nm)
Figure 7-167
Frame F
Applicable models
VFD900C23A-00; VFD900C23A-21; VFD1320C43A-00; VFD1600C43A-00; VFD1320C43A-21;
VFD1600C43A-21; VFD1600C63B-00; VFD2000C63B-00; VFD1600C63B-21; VFD2000C63B-21
Fan model “MKC-FFKM” Heat Sink Fan
Loosen the screws and plug out the power of fan before removing).
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
1
4
3
2
Figure 7-168
1
2
To Next Page
