Delta C2000 Plus Series User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-125

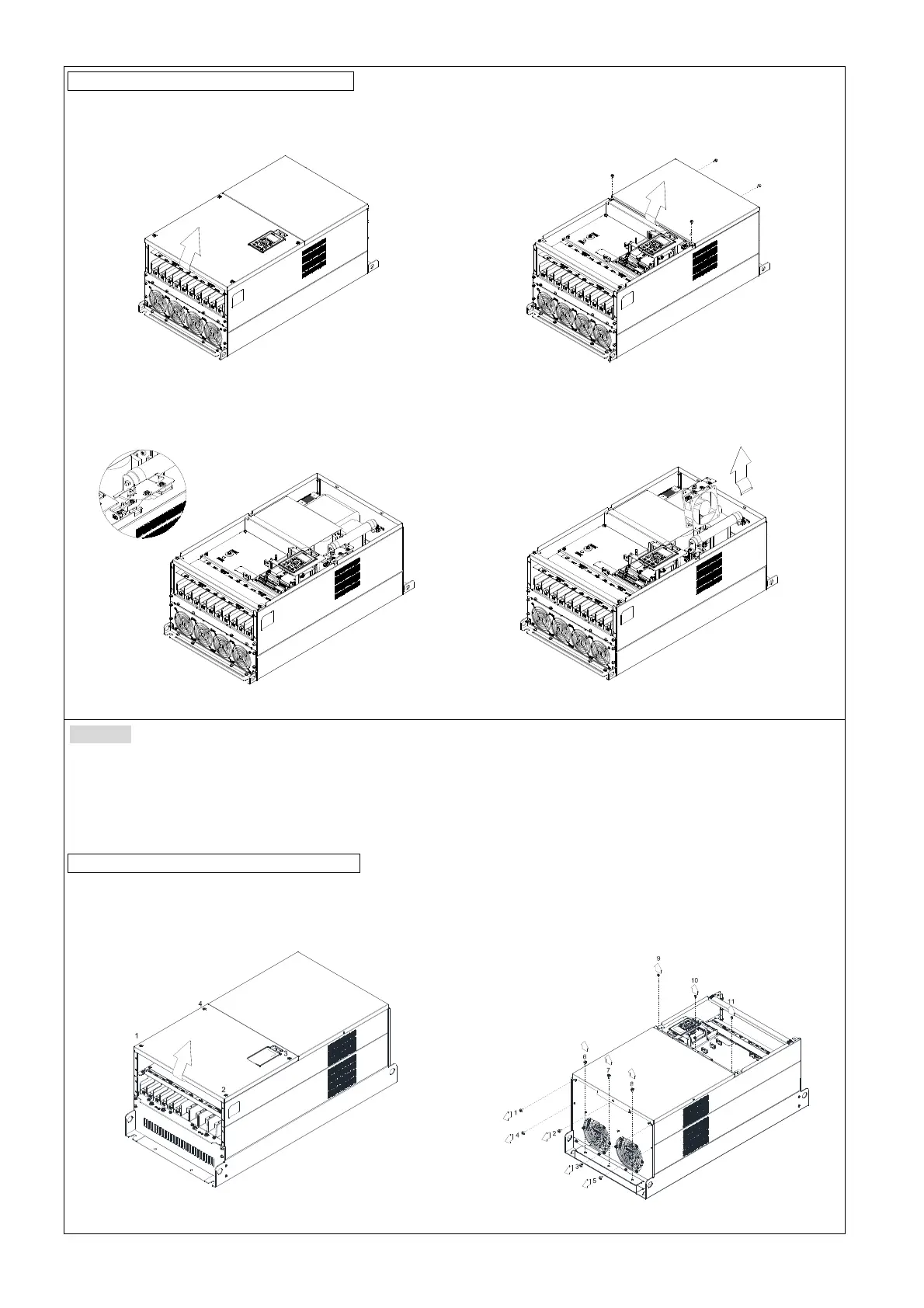

Fan model “MKC-FFKB” Capacitor Fan
1. Loosen the screw and remove the cover.
Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) /
(1.2–1.5 Nm)
1
3
2
4
Figure 7-169
2. Loosen the screw and remove the cover.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
8
7
6
5
Figure 7-170
3. Loosen the screws and remove the fan.
Screw torque: 12–15 kg-cm / (10.4–13.0 Ib-in.) / (1.2–1.5 Nm)
11
10
9
11
10
9
Figure 7-171
Figure 7-172
Frame G
Applicable models
VFD1850C43A-00; VFD2000C43A-00; VFD2200C43A-00; VFD2500C43A-00; VFD1850C43A-21;
VFD2000C43A-21; VFD2200C43A-21; VFD2500C43A-21; VFD2500C63B-00; VFD3150C63B-00;
VFD2500C63B-21; VFD3150C63B-21
Fan model “MKC-GFKM” Heat Sink Fan
1. Loosen the screw and remove the cover.
Screw torque: 12–15 kg-cm / (10.4–13.1 Ib-in.) /
(1.2–1.5 Nm)
Figure 7-173
2. For 1–8 shown below: Loosen the screws
Screw M6 torque: 35–40 kg-cm / (30.4–34.7 Ib-in.)
/ (3.4–3.9 Nm)
3. For 9–11 shown below: Loosen the screws and
remove the cover. Screw M4 torque: 14–16 kg-cm
/ (12.2–13.9 Ib-in.) / (1.4–1.6 Nm)
Figure 7-174

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
