Frame H
Applicable models
VFD2800C43A-00; VFD3150C43A-00; VFD3550C43A-00; VFD2800C43C-21; VFD3150C43C-21;
VFD3550C43C-21
Fan model “MKC-HFKM” Heat Sink Fan
1. Loosen the screw 1–4 and remove the top cover.
Screw torque: 14–16 kg-cm / (12.2–13.9 Ib-in.) /
(1.4–1.6 Nm)
1
2
4
3

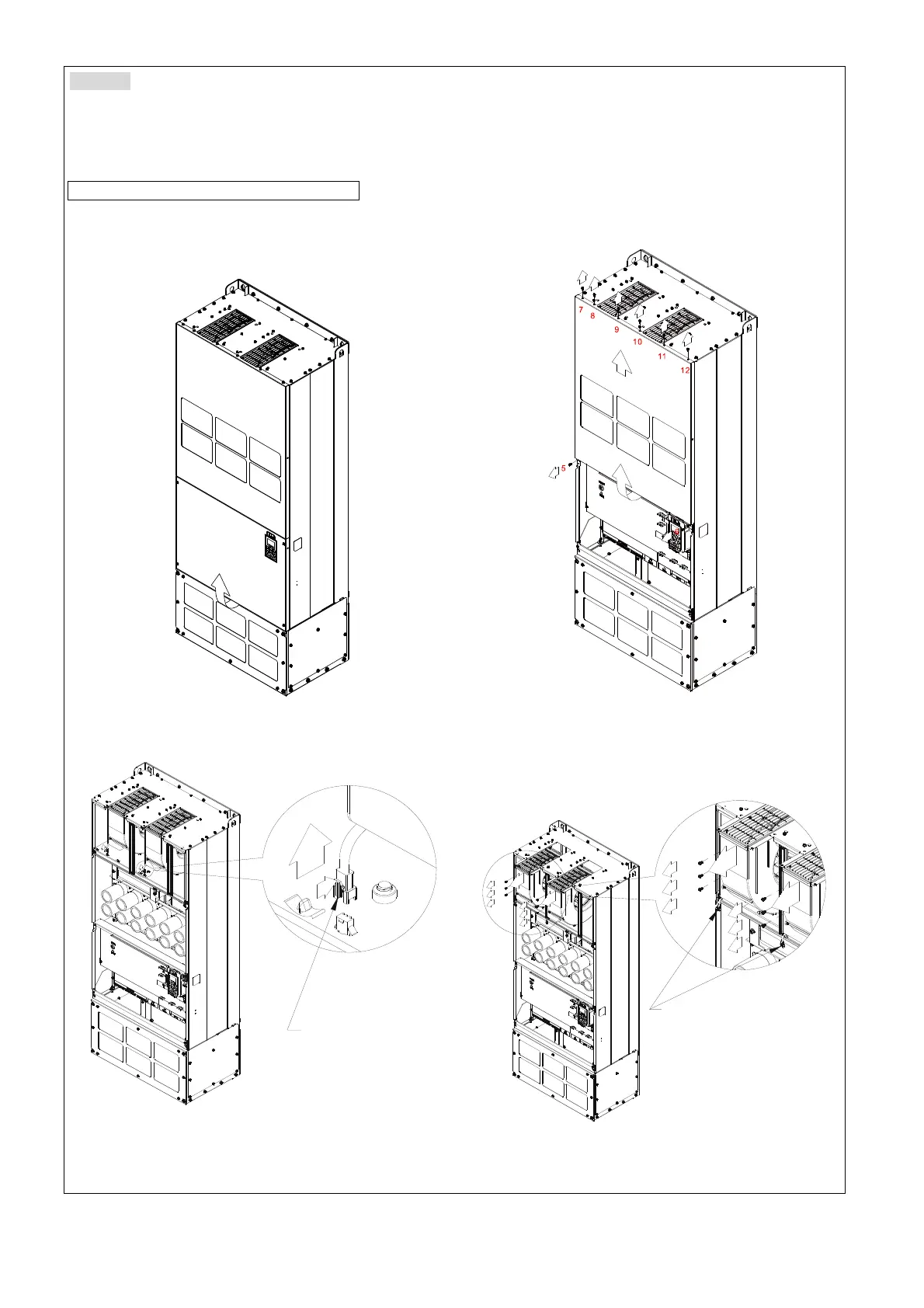

Figure 7-179
2. Loosen the screw 5–12 and remove the top cover.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
Figure 7-180
3. Press the latch to disconnect fan power.
Figure 7-181
4. Loosen the screw 13–18 and remove the fan.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm) (figure 4)
15
14
18
13
17
16
18
17
16
15
14
13
Figure 7-182
Pay attention to
direction of the latch
during the installation
Make sure the power is
properly disconnected
before removal.
