Delta C2000 Plus Series User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-130

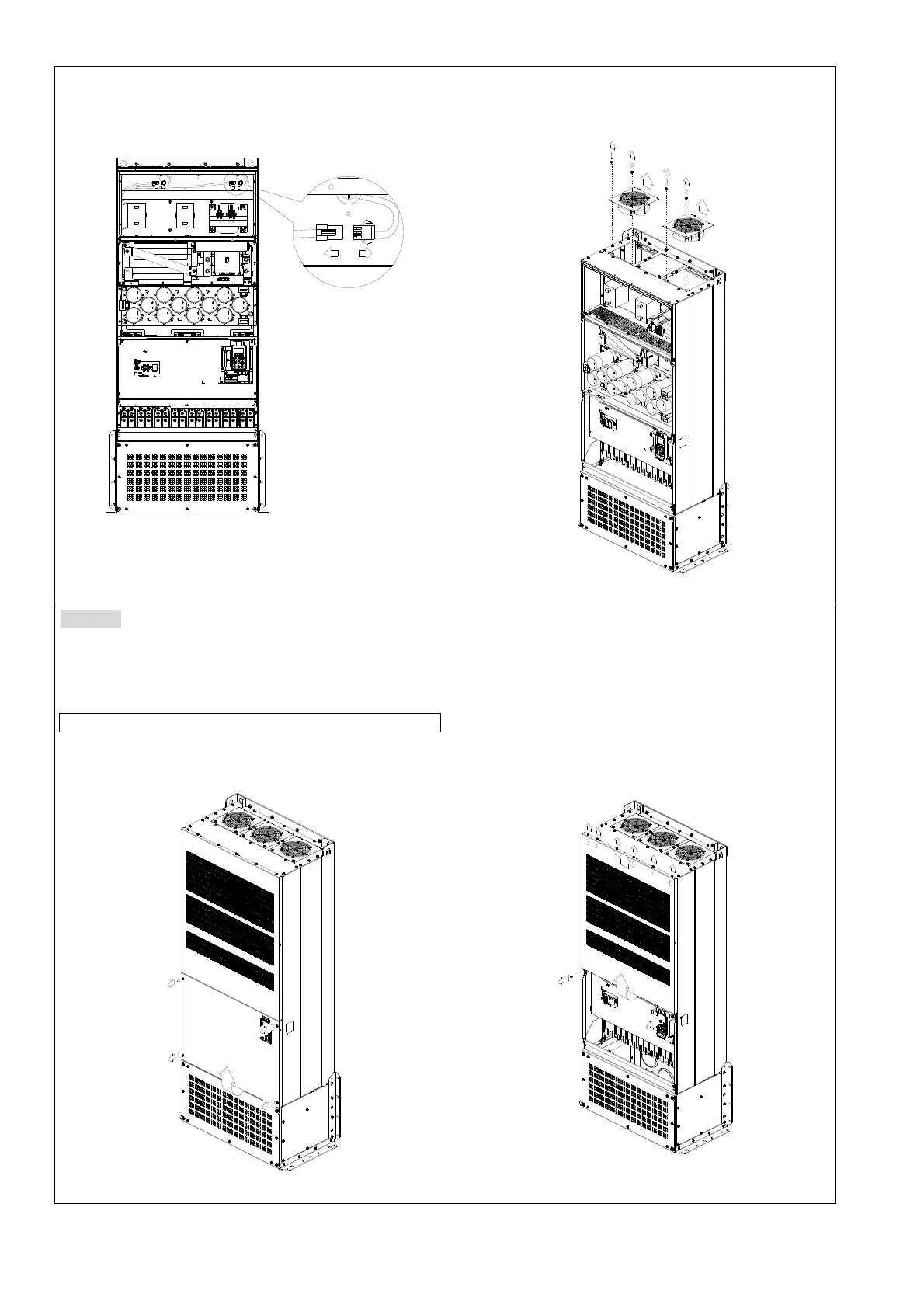

3. Disconnect the fan connector.


Figure 7-189
4. Loosen screws 1–4 (as shown below) and remove
the fan. Make sure the fan is disconnected when
removing. Screw torque: 24–26 kg-cm / (20.8–22.6
Ib-in.) / (2.4–2.5 Nm)


Figure 7-190
Frame H
Applicable models
VFD4500C63B-00; VFD5600C63B-00; VFD6300C63B-00; VFD4500C63B-21; VFD5600C63B-21;
VFD6300C63B-21
Fan model “MKC-HFKM1” Heat Sink Fan, Three sets
1. Loosen the screw 1–4 and remove the top cover.
Screw torque: 14–16 kg-cm / (12.2–13.9 Ib-in.) /
(1.4–1.6 Nm)


Figure 7-191
2. Loosen the screw 1–8 and remove the top cover.
Screw torque: 24–26kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)


Figure 7-192

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
