Delta C2000 Plus Series User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-129
4. Two sets of fans: Loosen the screw 13–16 / 21–24 and remove the fan A and C.
Three sets of fans: Loosen the screw 13–24 and remove the fan A, B, and C.
Screw torque: 35–45 kg-cm / (30.4–39.1 Ib-in.) / (3.4–4.4 Nm)
C
A
B
取出風扇時,
請先確認電源接頭已移除
16
15
17
24
14
22
19
20
21
13
23
18

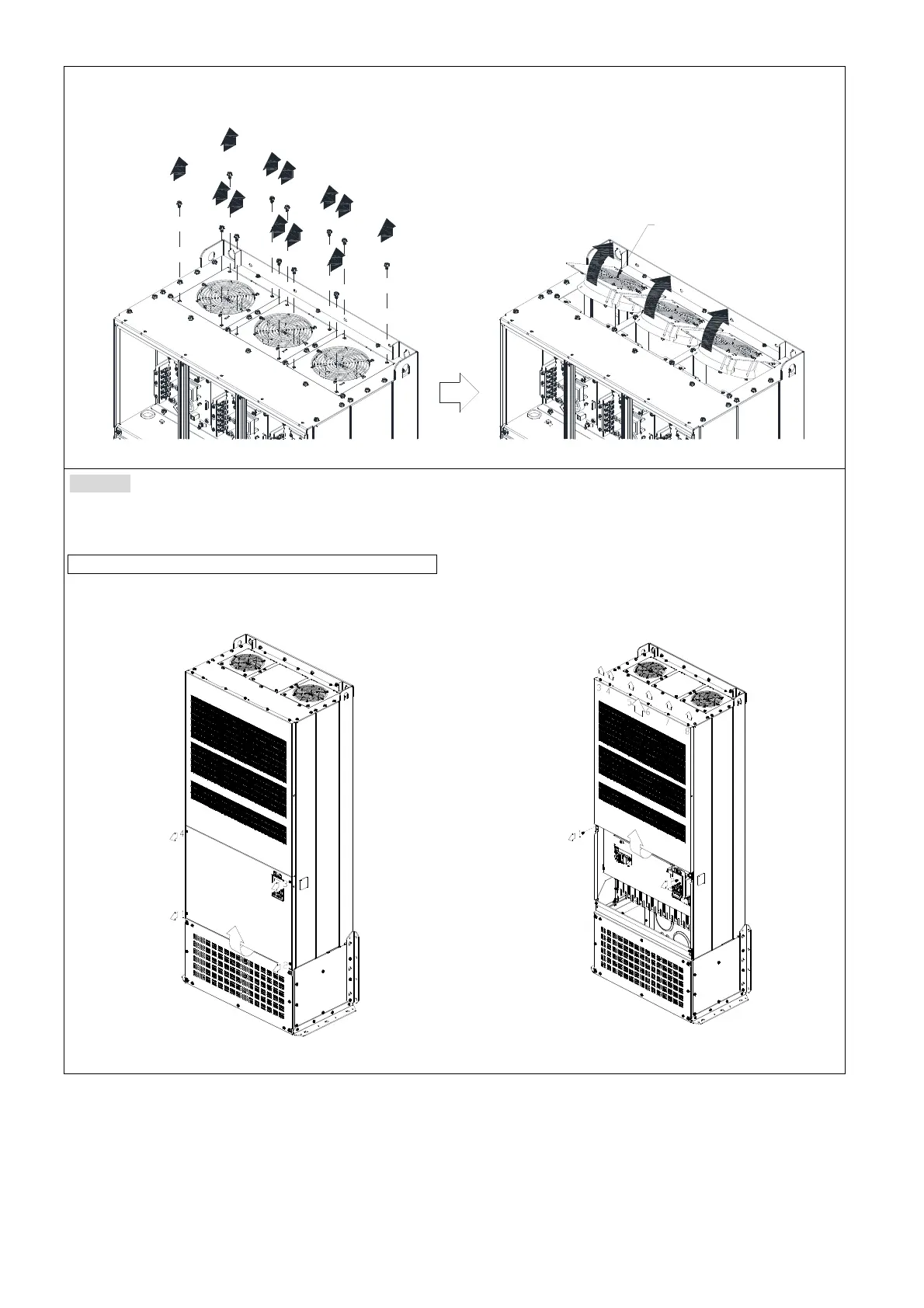

Figure 7-186
Frame H
Applicable models
VFD4000C63B-00; VFD4000C63B-21
Fan model “MKC-HFKM1” Heat Sink Fan, Two sets
1. Loosen the screw 1–4 and remove the top cover.
Screw torque: 14–16 kg-cm / (12.2–13.9 Ib-in.) /
(1.4–1.6 Nm)


Figure 7-187
2. Loosen the screw 1–8 and remove the top cover.
Screw torque: 24–26kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)


Figure 7-188
Make sure the power is
disconnected before
removing the fan.

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
