Chapter 7 Optional AccessoriesC2000 Plus
7-141

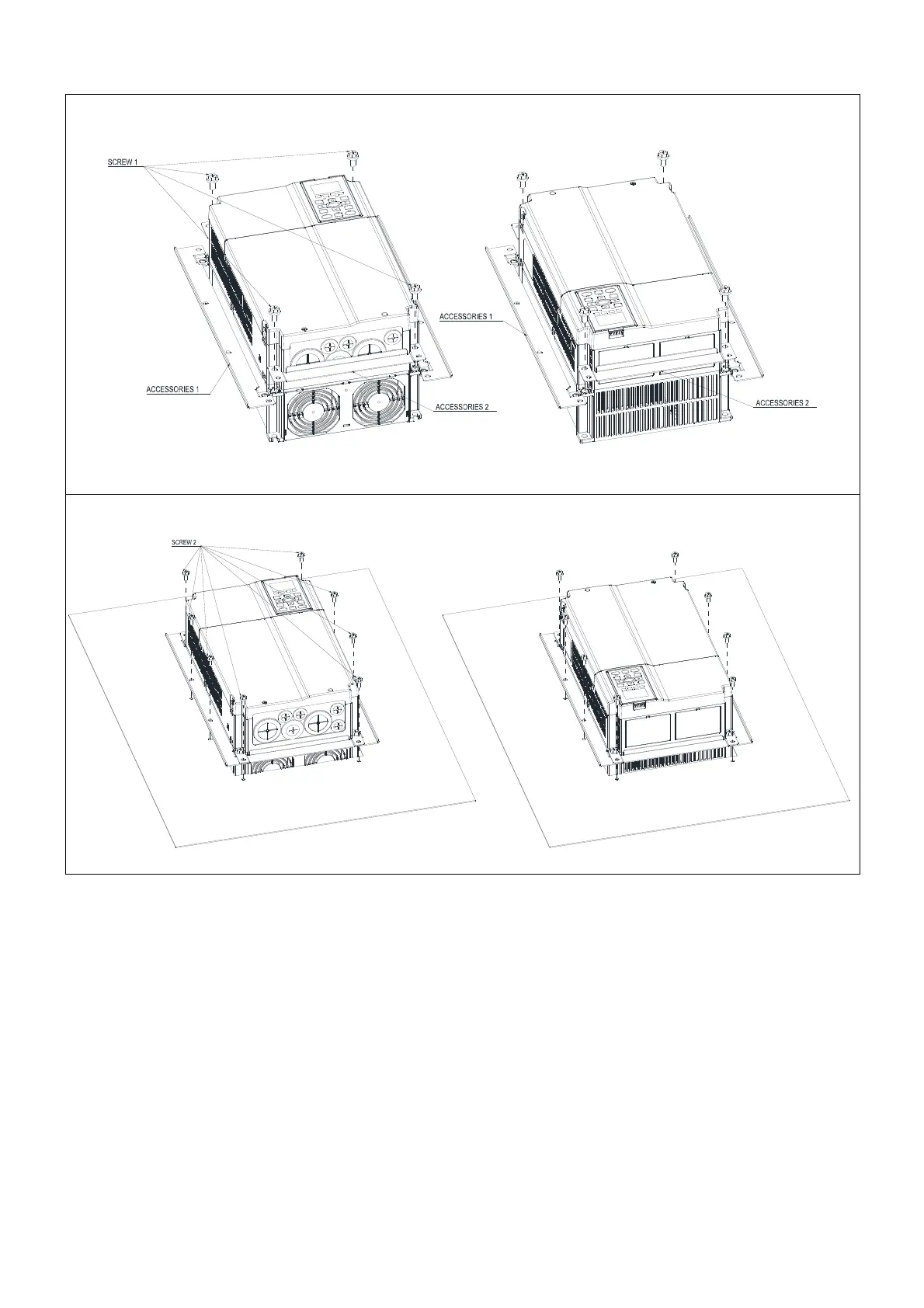

“MKC-CFM” Installation
1. Install accessory 1& 2 by tightening 4 of the screw 1(M8). Screw torque: 50–55 kg-cm / (43.4–47.7 Ib-in.) /
(4.9–5.4 Nm) (as shown in the figure below)
Figure 7-210
2. Plate installation, place 8 of the screw 2 (M6) through Accessory 1 & 2 and the plate then tighten the screws.
Screw torque: 25–30 kg-cm / (21.7–26 Ib-in.) / (2.5–2.9 Nm) (as shown in the figure below)
Fi
ure 7-211
