Chapter 7 Optional AccessoriesC2000 Plus
7-142
Frame D0
Applicable models
VFD370C43S-00; VFD370C43S-21; VFD450C43S-00; VFD450C43S-21

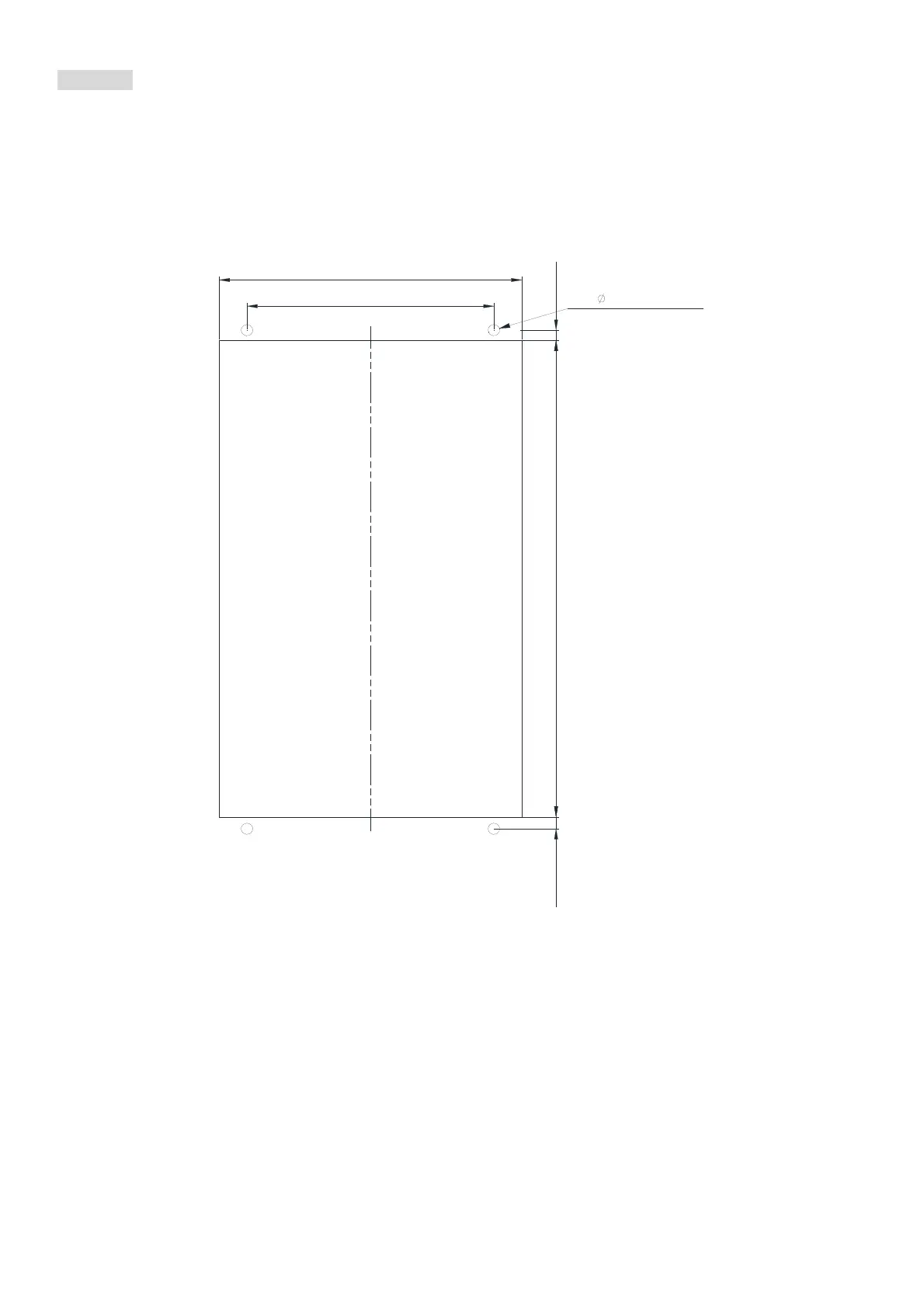

Hole sites and dimension Unit: mm (inch)
456.5 [17.97] 10 [0.39]
288 [11.34]
M10*P1.5(4X)
OR
11.0[0.43](4X)
235 [9.25]
11.5 [0.45]
Figure 7-212
