Delta C2000 Plus Series - Page 253

Chapter 7 Optional AccessoriesC2000 Plus
7-144
Frame E
Applicable models
VFD450C23A-00; VFD450C23A-21; VFD550C23A-00; VFD550C23A-21; VFD750C23A-00;
VFD750C23A-21; VFD750C63B-00; VFD750C63B-21; VFD900C43A-00; VFD900C43A-21;
VFD900C63B-00; VFD900C63B-21; VFD1100C43A-00; VFD1100C43A-21; VFD1100C63B-00;
VFD1100C63B-21; VFD1320C63B-00; VFD1320C63B-21

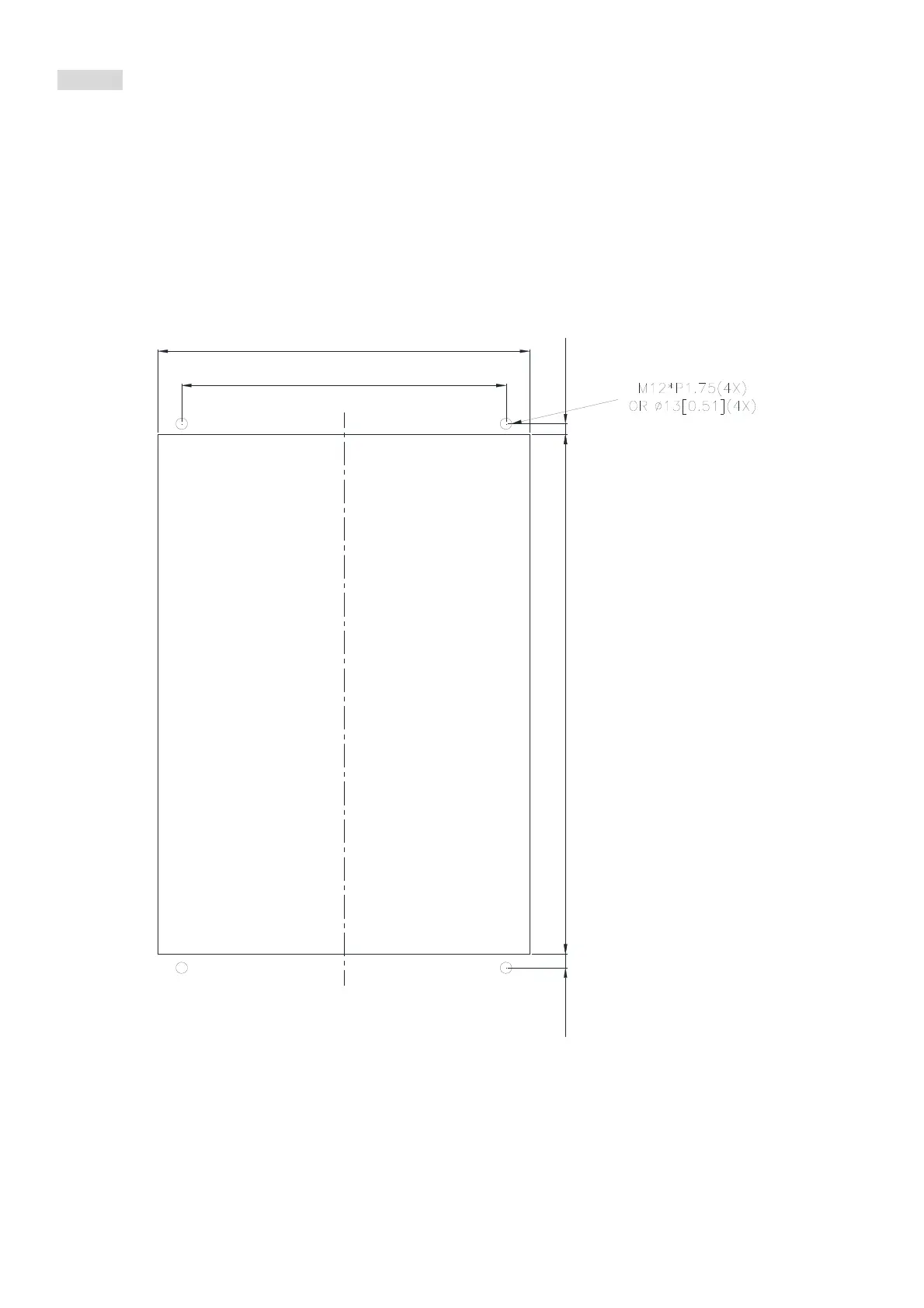

Hole sites and dimension Unit: mm (inch)
335 [13.19]
14.6 [0.58]
384 [15.12]
539.7 [21.25]
UNIT:mm[inch]
11.2 [0.44]
Figure 7-214
