Chapter 7 Optional AccessoriesC2000 Plus
7-145
Frame D0, D and E installation

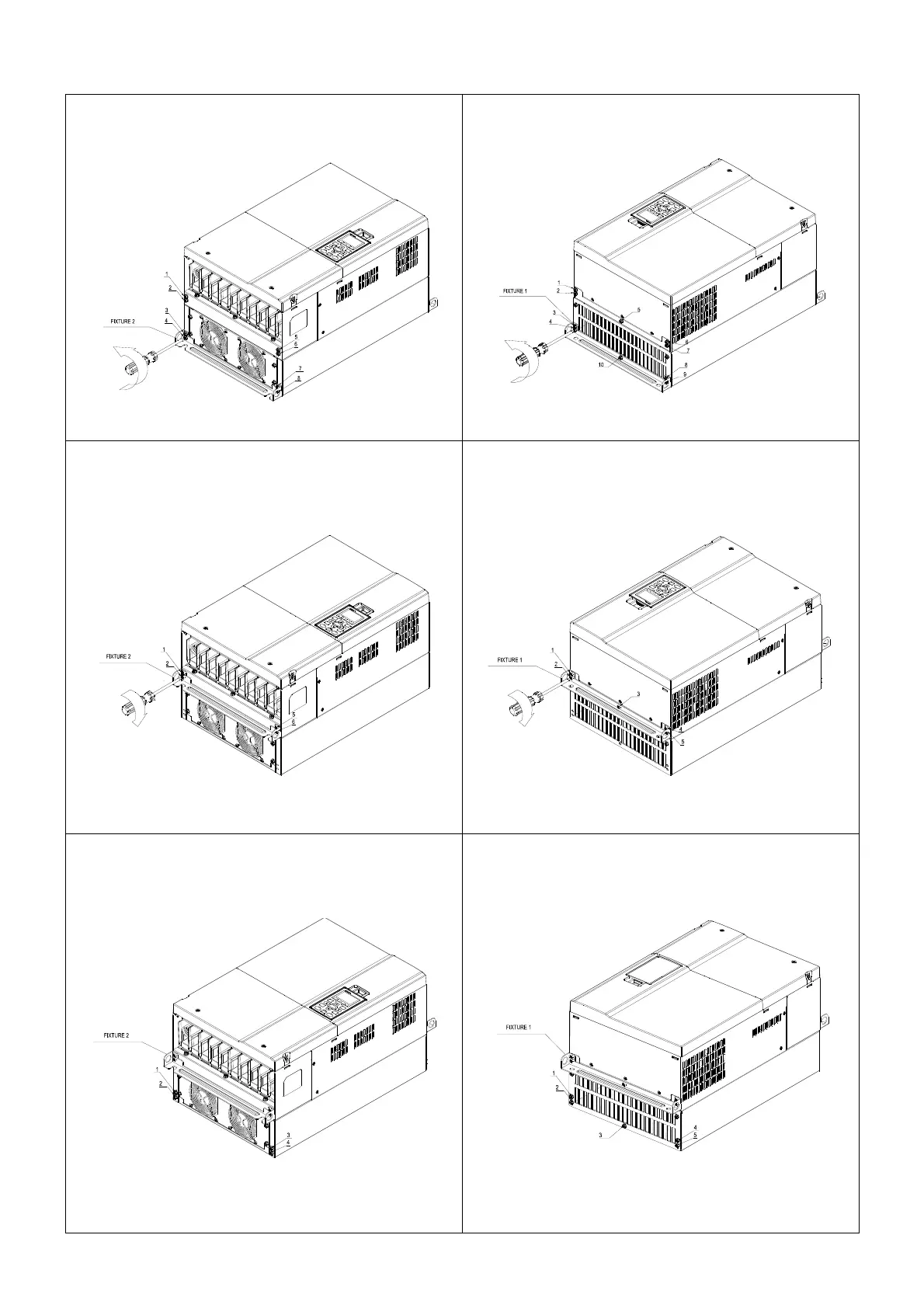

1. Loosen 8 screws and remove Fixture 2 (as shown in
the figure below).
Figure 7-215
2. Loosen 10 screws and remove Fixture 1 (as shown
in the figure below).
Figure 7-216
3. Tighten 4 screws (as shown in the figure below).
Screw torque: 30–32 kg-cm / (26.0–27.8 Ib-in.) /
(2.9–3.1 Nm).
Figure 7-217
4. Tighten 5 screws (as shown in the figure below).
Screw torque: 30–32 kg-cm / (26.0–27.8 Ib-in.) /
(2.9–3.1 Nm)
Figure 7-218
5. Tighten 4 screws (as shown in the figure below).
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
Figure 7-219
6. Tighten 5 screws (as shown in the figure below).
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
Figure 7-220
