Chapter 7 Optional AccessoriesC2000 Plus
7-151

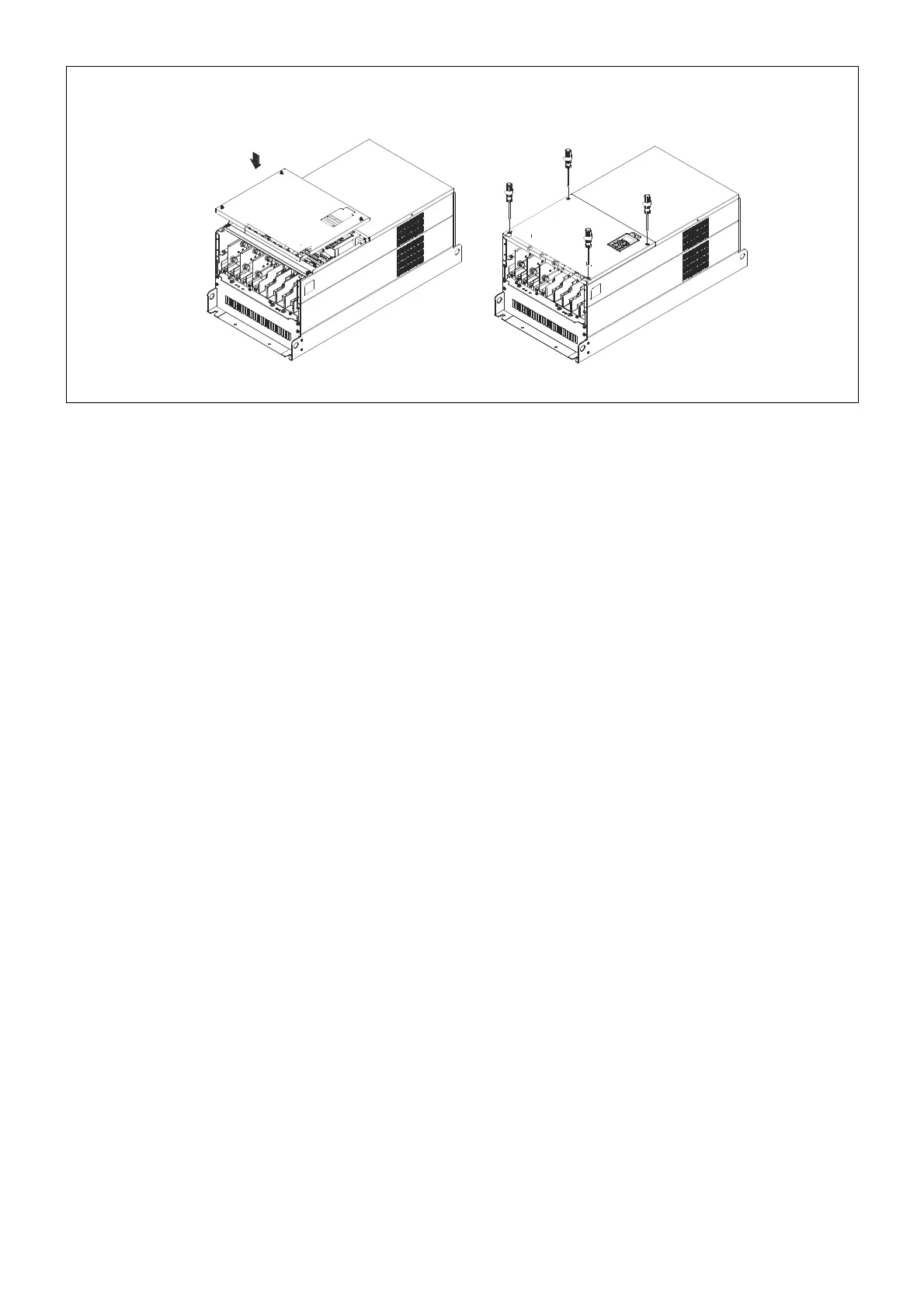

5. Put the cover back and tighten the screws as shown in the figure below. Screw Torque: 12–15 kg-cm /
(10.4–13 lb-in) / (1.2–1.5 Nm)
Figure 7-237
