Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-01-40

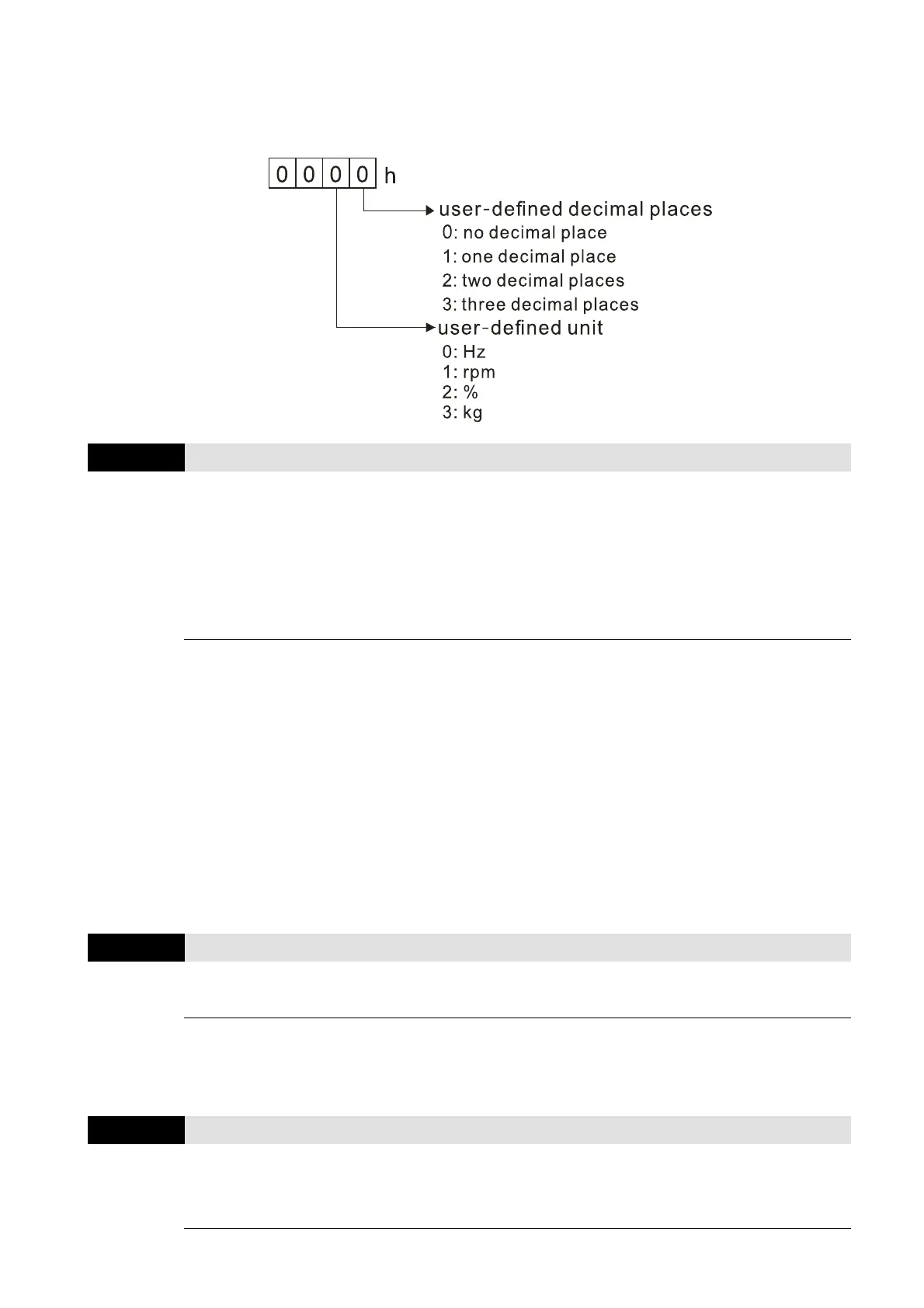

 bit 4–15:
The displayed units for the control frequency F page, user-defined (Pr.00-04 = d10, PID feedback)
and Pr.00-26.
00-26
Maximum User-Defined Value
Default: 0
Settings 0: Disabled
0–65535 (when Pr.00-25 is set to no decimal place)
0.0–6553.5 (when Pr.00-25 is set to 1 decimal place)
0.00–655.35 (when Pr.00-25 is set to 2 decimal places)
0.000–65.535 (when Pr.00-25 is set to 3 decimal places)
 When Pr.00-26 is NOT set to 0, the user-defined value is enabled. After selecting the displayed
unit and number of decimal places with Pr.00-25, the setting value of Pr.00-26 corresponds to
Pr.01-00 (drive’s maximum operating frequency), and then the motor operation frequency has a
linear relationship with the displayed value on the digital keypad.
Example:
When the frequency set in Pr.01-00 = 60.00Hz, the maximum user-defined value for Pr.00-26 is
100.0%. This also means Pr.00-25 is set at 0021h to select % as the unit.
NOTE:
Set Pr.00-25 before using Pr.00-26. After you finish setting, when Pr.00-26 is not 0, the displayed
unit on the keypad shows correctly according to Pr.00-25 settings.

00-27
User-Defined Value
Default: Read only
Settings Read only
 Pr.00-27 displays the user-defined value when Pr.00-26 is not set to 0.
 The user-defined function is valid only when Pr.00-20 (frequency source) is set to digital keypad
or RS-485 communication.
00-29
LOCAL / REMOTE Selection
Default: 0
Settings 0: Standard HOA function
1: When switching between LOCAL and REMOTE, the drive stops.

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
