Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-06-6

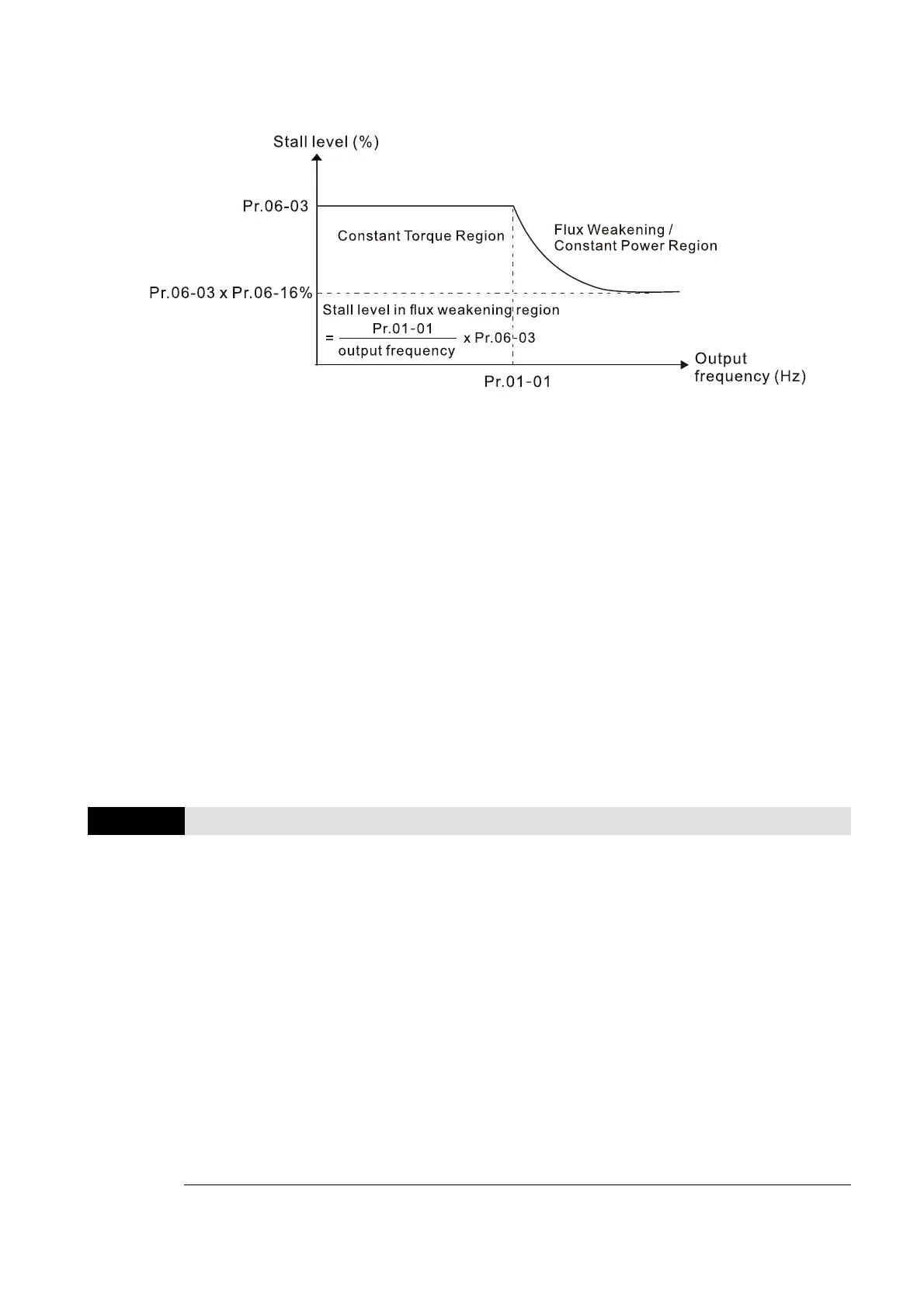

 Refer to Pr.06-16 for more details of stall level in flux weakening region. The protection curve is
as follows:
 When you enable the over-current stall prevention, the drive’s acceleration time is longer than the
setting.
 When the over-current stall prevention occurs because the motor capacity is too small or operates
in the default, decrease the Pr.06-03 setting value.
 If you encounter any problem with the acceleration time, refer to the following guides for
troubleshooting.
1. Increase the acceleration time to a proper value.
2. Set Pr.01-44 Auto Acceleration and Auto-Deceleration Setting to 1, 3 or 4 (auto-
acceleration).
3. Related parameters:
 Pr.01-12, Pr.01-14, Pr.01-16, Pr.01-18 Acceleration Time 1–4
 Pr.01-44 Auto Acceleration and Auto-Deceleration Setting
 Pr.02-13–02-14 Multi-function Output 1 (Relay 1 and Relay 2)
 Pr.02-16–02-17 Multi-function Output (MO1 and MO2)

06-04
Over-Current Stall Prevention during Operation
Default:
Settings 230V / 460V models
Heavy duty: 0–195% (100% corresponds to
the rated current of the drive)
150
Super Heavy duty: 0–210% (100%
corresponds to the rated
current of the drive)
120
575V / 690V models
Light duty: 0–125% (100% corresponds to
the rated current of the drive)
120
Normal duty: 0–150% (100% corresponds to
the rated current of the drive)
150
 100% corresponds to the rated current of the drive (Pr.00-01).
 This parameter only works in VF, VFPG, and SVC control modes.

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
