Delta C2000 Plus Series - Page 62

Chapter 3 UnpackingC2000 Plus
3-19

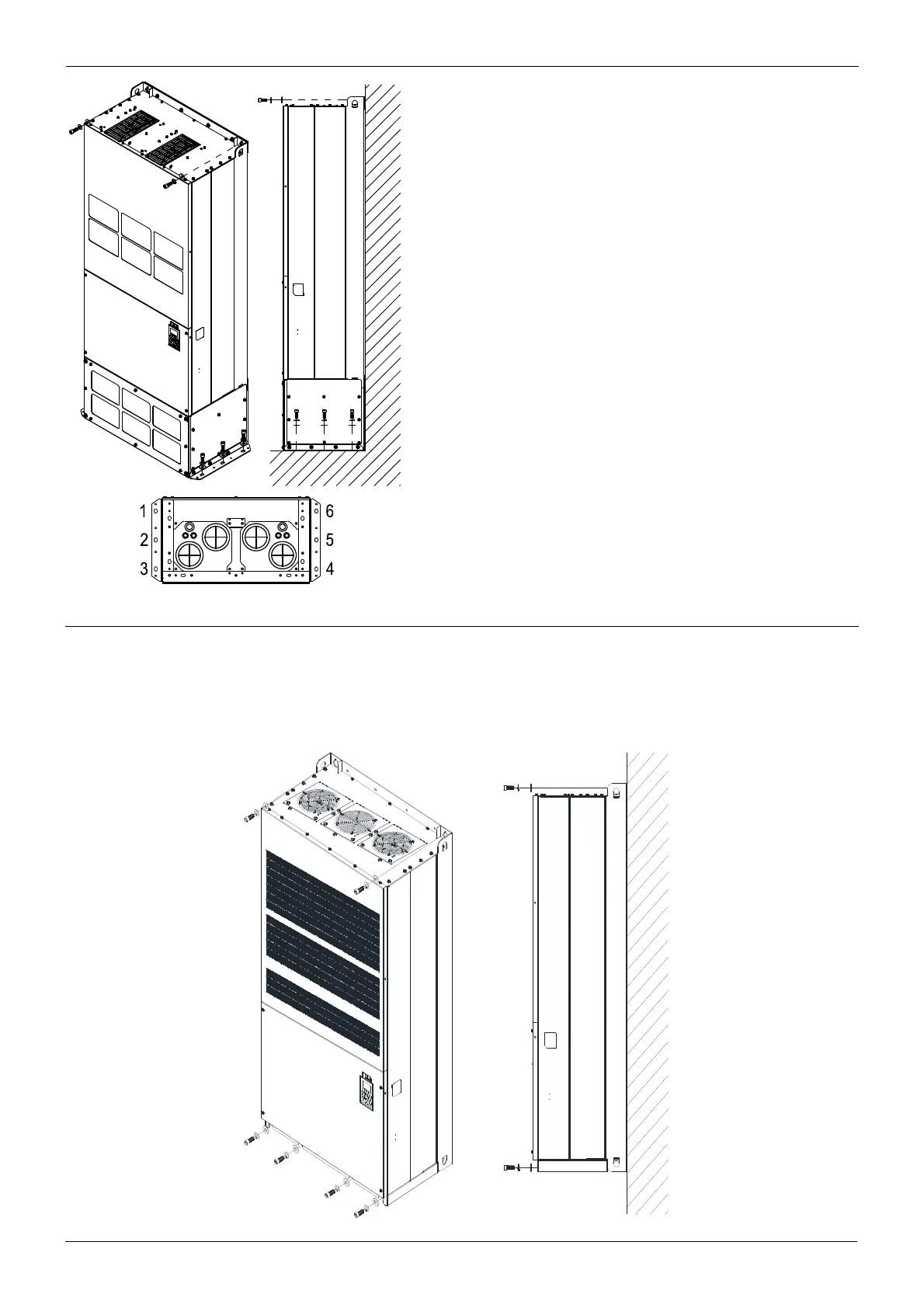

Fix the drive from the outside.
Screw: M12*8
Torque: 340–420 kg-cm / (295.1–364.6 lb-in.) /
(33.3–41.2 Nm)
VFDXXXC63B
Screw M 12*6
Torque: 340–420 kg-cm / (295.1–364.6 lb-in.) /
(33.32–41.16 Nm)
Figure 3-56
Figure 3-55
