Chapter 3 UnpackingC2000 Plus
3-20

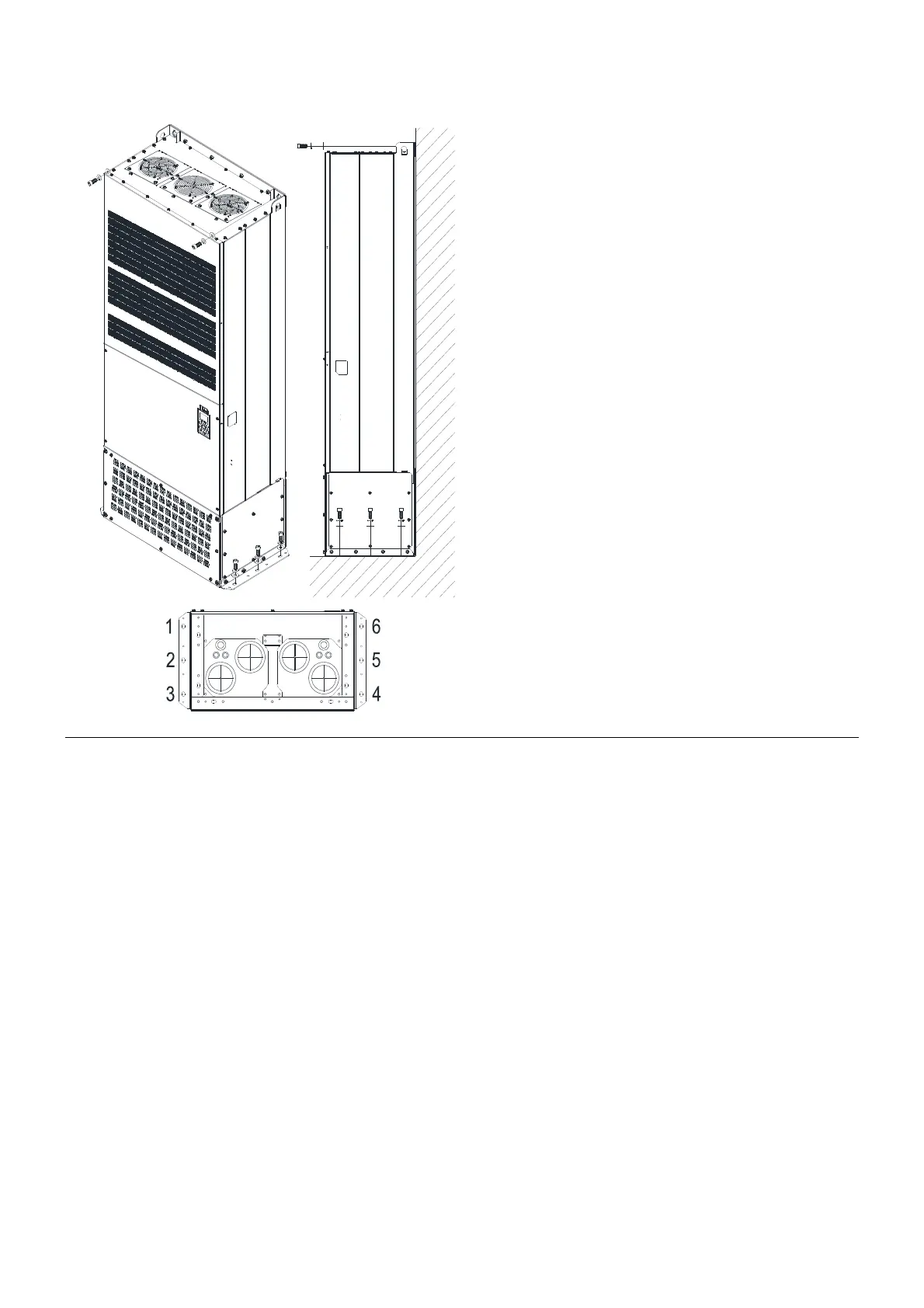

VFDXXXC63B-21
Fix the drive from the outside.
Screw: M12*8
Torque: 340–420 kg-cm / (295.1–364.6 lb-in.) /
(33.32–41.16 Nm)
Figure 3-57
