Delta C2000 Plus Series User Manual

Chapter 12 Description of Parameter SettingsC2000 Plus
12.2-20

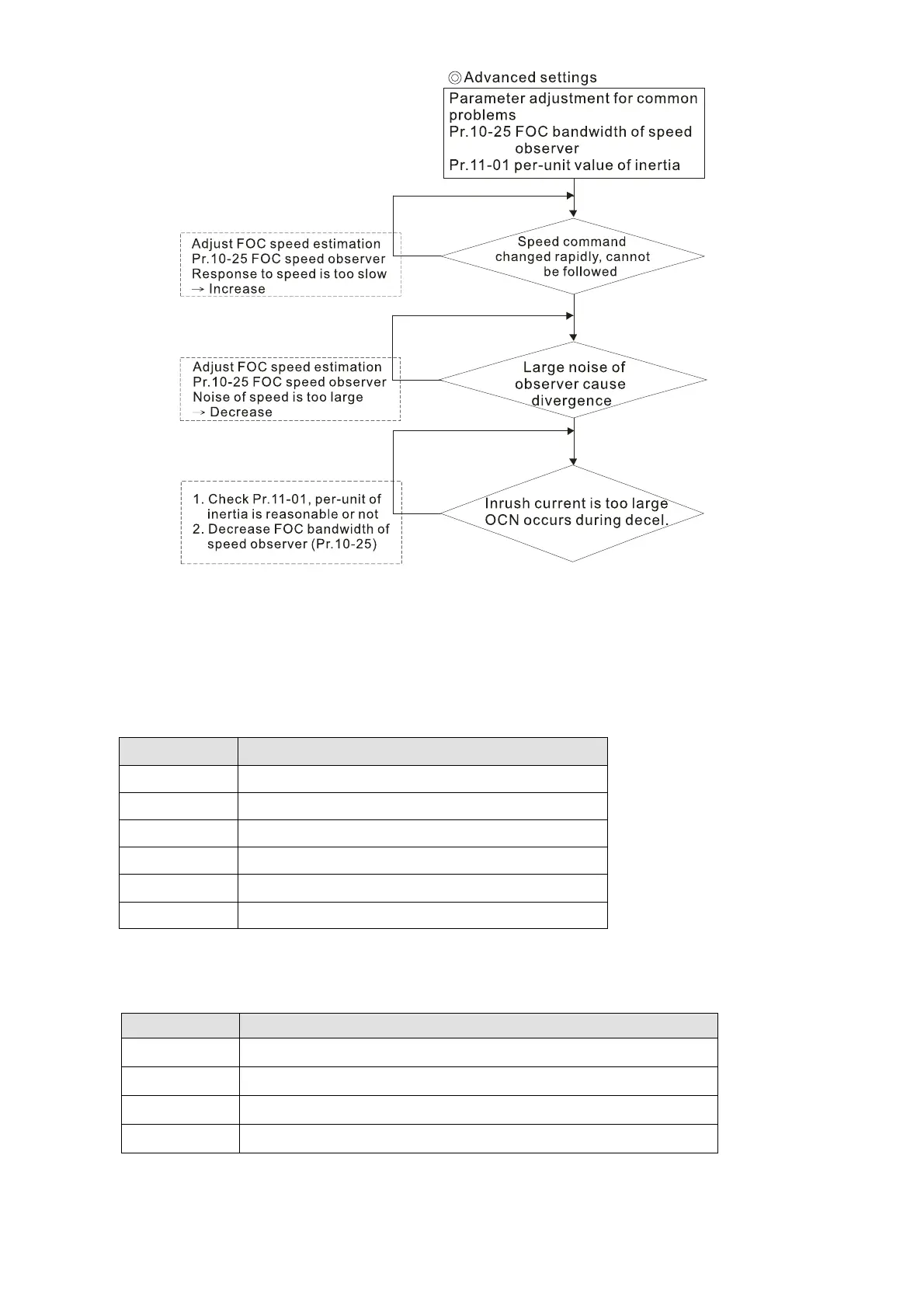

 Basic motor parameters adjustment
1. Parameter reset:
Reset Pr.00-02 = 9 (50 Hz) or 10 (60 Hz) to the default value.
2. Select PM motor type:
Pr.05-33 = 0 (IM)
3. Motor nameplate parameter setting:
Parameter Description
Pr.01-01 Rated frequency (Hz)
Pr.01-02 Rated voltage (V
AC
)
Pr.05-01 Full-load current for induction motor 1 (A)
Pr.05-02 Rated power for induction motor 1 (kW)
Pr.05-03 Rated speed for induction motor 1 (rpm）
Pr.05-04 Number of poles for induction motor 1 (poles)
4. Press RUN to start auto-tuning of IM magnetic flux curve dynamic test for Pr.05-00 = 1 or 6 (motor
is running). Make sure the motor executes auto-tuning under break-away load condition. Check if
there are motor parameters after auto-tuning.
Parameter Description
Pr.05-06
Stator resistance (Rs) for induction motor 1 (Ω)
Pr.05-07
Rotor resistance (Rr) for induction motor 1 (Ω)
Pr.05-08 Magnetizing inductance (Lm) for induction motor 1 (mH)
Pr.05-09
Stator inductance (Lx) for induction motor 1 (mH)

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
