Delta C2000 Plus Series User Manual

Chapter 5 Main Circuit TerminalsC2000 Plus
5-12

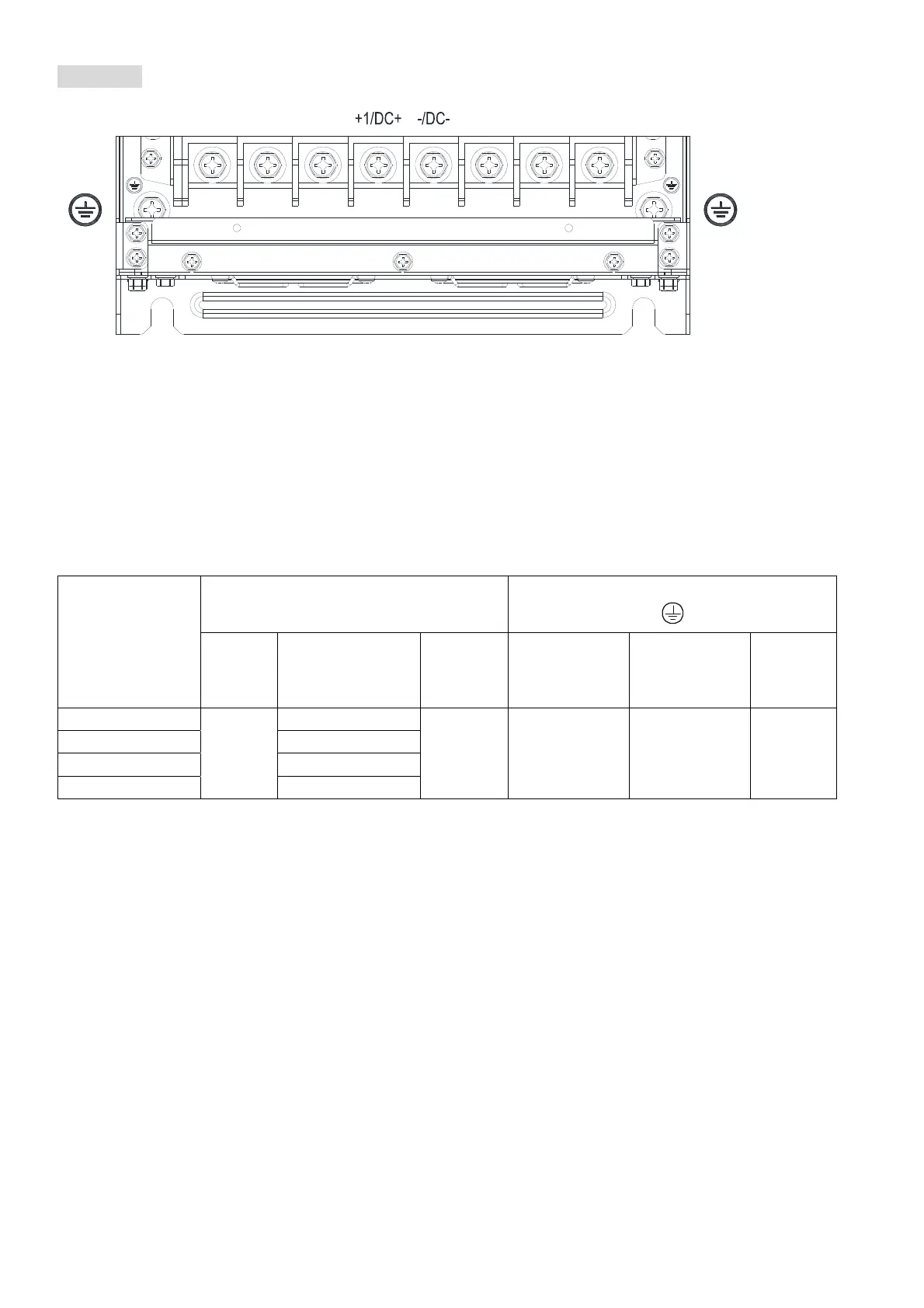

Frame D0
V/T2R/L1 T/L3 U/T1 W/T3S/L2
 If you install at Ta 40°C (for model names with last digit -21) / 50°C (for model names with last digit
-00) environment, use copper wires have a voltage rating of 600V and are temperature resistance
to 75°C
or 90°C.
 If you install at Ta 40°C (for model names with last digit -21) / 50°C (for model names with last digit
-00)
above environment, use copper wires have a voltage rating of 600V and are temperature
resistant ntance to 90°C or above.
 To be UL installation compliant, you must use copper wires when installing. The wire gauge is
based on temperature resistance of 75°C, in accordance with
UL requirements and
recommendations. Do not reduce the wire gauge when using high-temperature resistant wire.
Model Name
Main Circuit Terminals
R/L1、S/L2、T/L3、U/T1、V/T2、W/T3、
-/DC-、+1/DC+
Terminal
Max. Wire
Gauge
Min. Wire Gauge
Screw
Spec. and
Torque
(±10%)
Max. Wire
Gauge
Min. Wire Gauge
Screw
Spec. and
Torque
(±10%)
VFD370C43S-00
70 mm
2
(2/0 AWG)
50 mm
2
(1/0 AWG)
M8
80 kg-cm
(69.4 lb-in.)
(7.84 Nm)
35 mm
2
(2 AWG) 25 mm
2
(4 AWG)
M8
80 kg-cm
(69.4 lb-in.)
(7.84 Nm)
VFD450C43S-00 70mm
2
(2/0 AWG)
VFD370C43S-21 50 mm
2
(1/0 AWG)
VFD450C43S-21 70mm
2
(2/0 AWG)

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
