Delta C2000 Plus Series User Manual

Chapter 5 Main Circuit TerminalsC2000 Plus
5-19

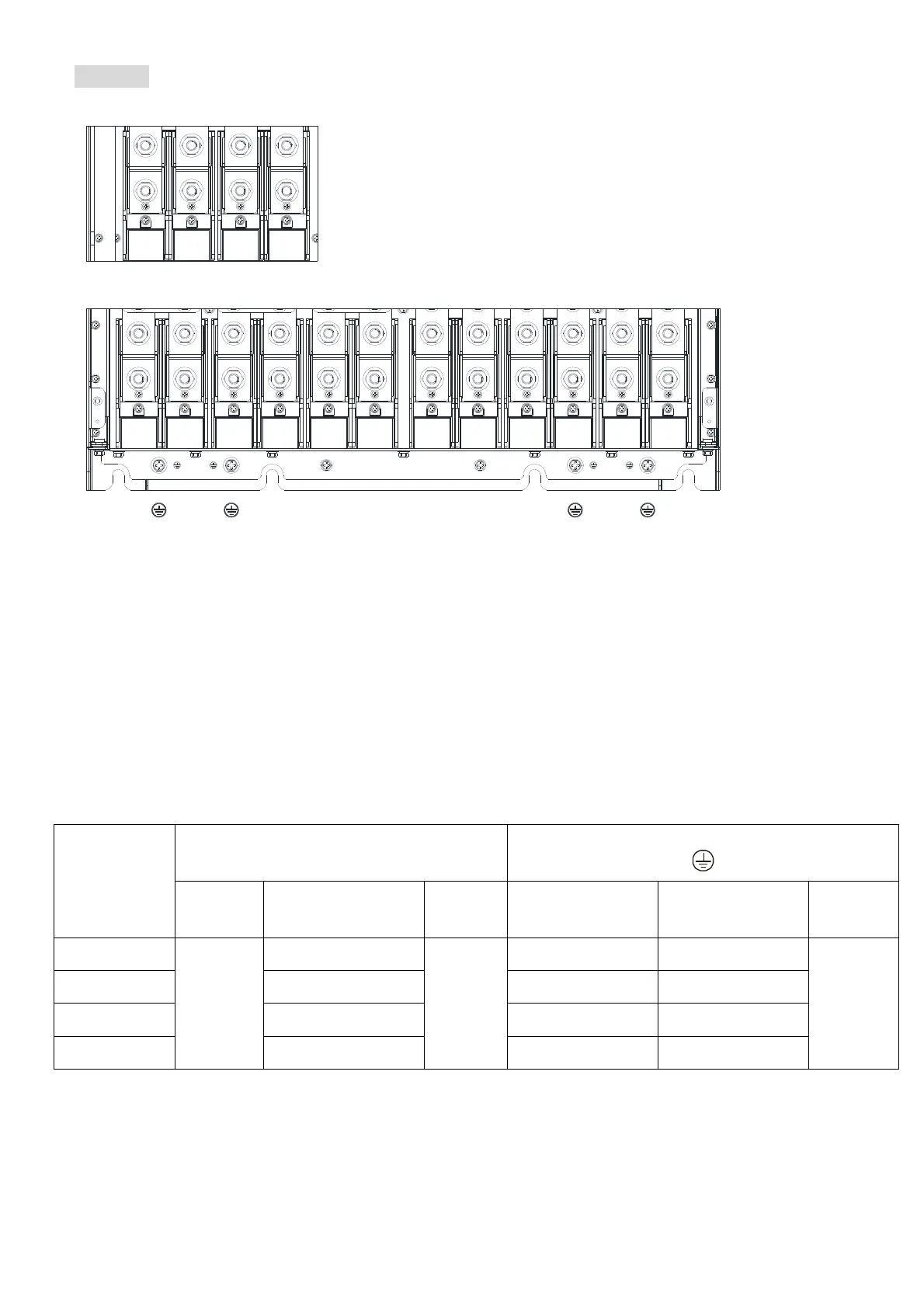

Frame H
R/L11 U/T1R/L12 V/T2S/L22
+1/DC+
S/L21 W/T3T/L32
-/DC-
T/L31
 If you install at Ta 40°C (model names with last digit C-21) / 50°C (model names with last digit A-00)
environment, use copper wires have a voltage rating of 600V and are temperature resistance to
75°C
or 90°C.
 If you install at Ta 40°C (model names with last digit C-21) / 50°C (model names with last digit A-00)
above environment, use copper wires have a voltage rating of 600V and are temperature resistant
ntance to 90°C or above.
 For VFD5000C43A-00 models: if you install at Ta 40°C above environment, use copper wires that
have a voltage rating of 600V and are temperature resistance to 90°C or above.
 For VFD5600C43A-00, VFD5600C43C-21 models: if you install at Ta 30°C above environment, use
copper wires that have a voltage rating of 600V and are temperature resistance to 90°C or above.
 To be UL installation compliant, you must use copper wires when installing. The wire gauge is based
on temperature resistance of 75°C, in accordance with
UL requirements and recommendations. Do
not reduce the wire gauge when using high-temperature resistant wire.
Model Name
Main Circuit Terminals
R/L11、R/L12、S/L21、S/L22、T/L31、T/L32、U/T1、
V/T2、W/T3、-/DC-、+1/DC+
Terminal
Max. Wire
Gauge
Min. Wire Gauge
Screw Spec.
and Torque
(±10%)
Max. Wire Gauge Min. Wire Gauge
Screw Spec.
and Torque
(±10%)
VFD5000C43A-00
240 mm
2
*4
(500 MCM*4)
240 mm
2
*4 (400 MCM*4)
M12
408 kg-cm
(354.1 lb-in.)
(39.98 Nm)
240 mm
2
*4
(400 MCM*4)
240 mm
2
*2
(400 MCM*2)
M8
180 kg-cm
(156.2 lb-in.)
(17.65 Nm)
VFD5600C43A-00 240 mm
2
*4 (500 MCM*4)
240 mm
2
*4
(500 MCM*4)
240 mm
2
*2
(500 MCM*2)
VFD5000C43C-21 240 mm
2
*4 (400 MCM*4)
240 mm
2
*4
(400 MCM*4)
240 mm
2
*2
(400 MCM*2)
VFD5600C43C-21 240 mm
2
*4 (500 MCM*4)
240 mm
2
*4
(500 MCM*4)
240 mm
2
*2
(500 MCM*2)
