 Import the ESI file

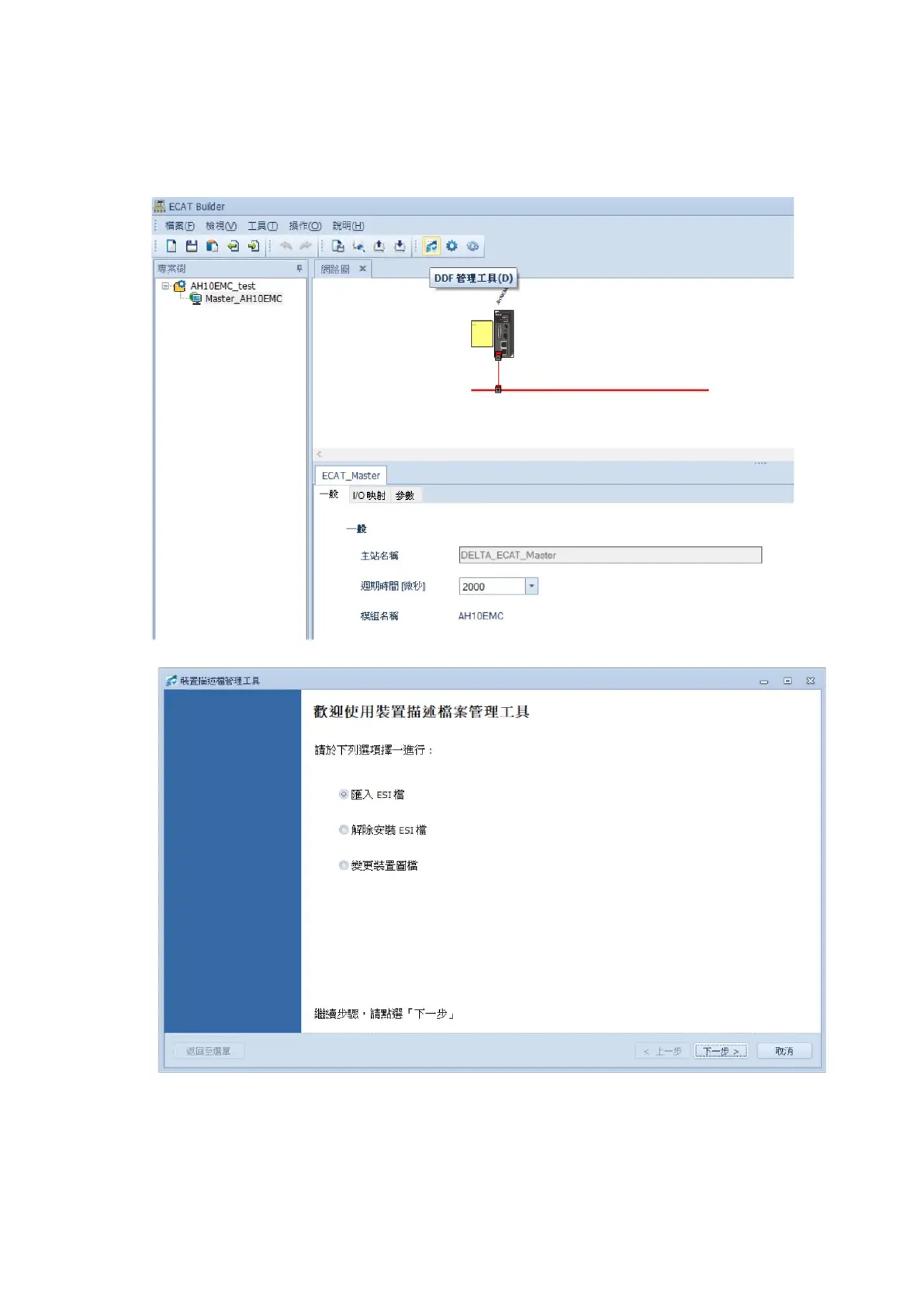

Click DDF Management Tool button, then follow step by step to import the ESI file. You can

download ESI file in Delta’s download center (See section 2.5).
