Delta CMM-EC02 - Installation and Wiring; Mounting Position of Communication Card

2. Installation and Wiring
This section introduces how CMM-EC02 connects to the M300 series and how CMM-EC02 links to the
internet.
2.1 Mounting Position of Communication Card

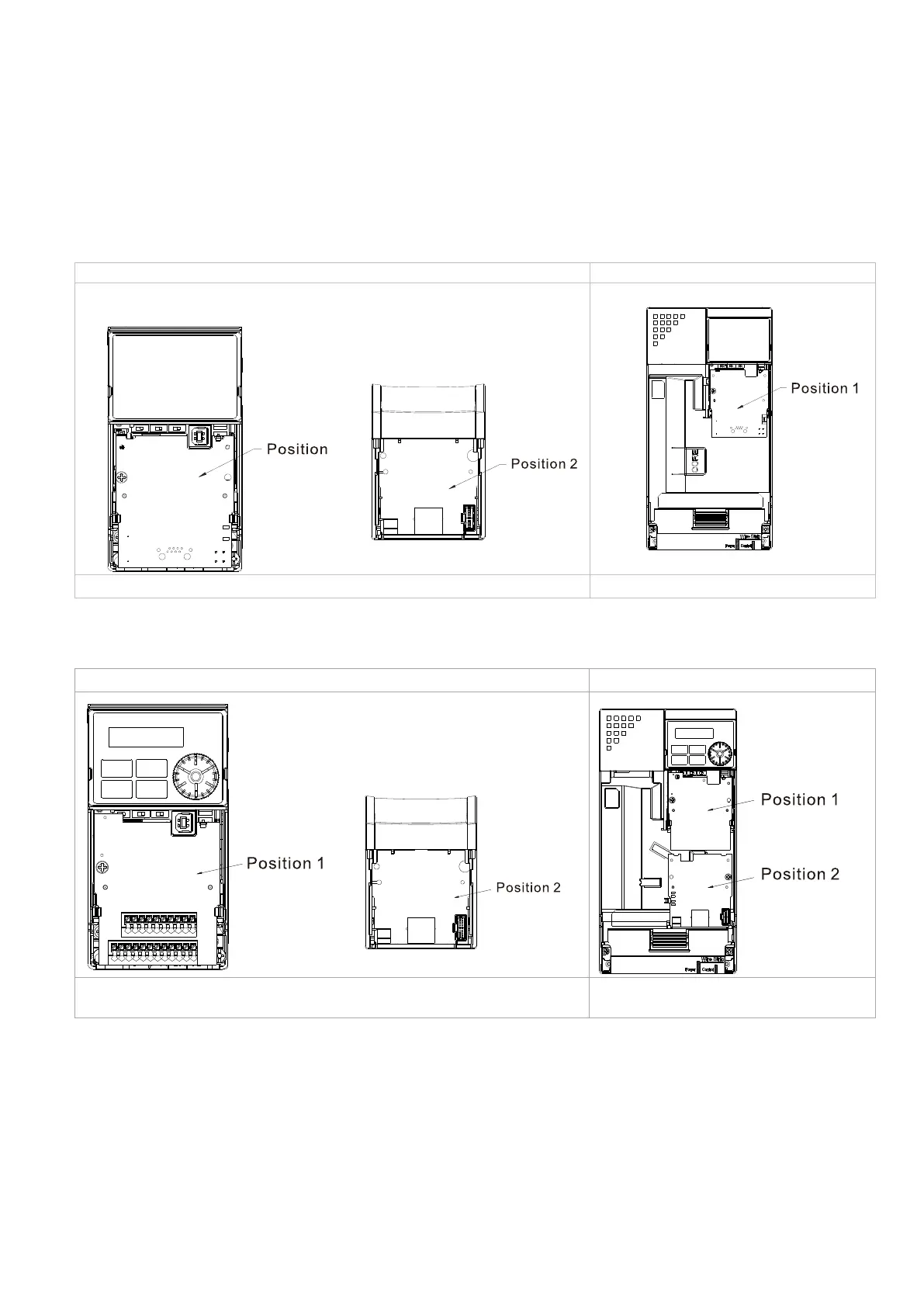

 MS300 Mounting Position of Communication Card
Frame A~D (option card mounting box)
Frame E and F
(Option card mounting box)
Fig 2-1
Fig 2-2
 MH300 Mounting Position of Communication Card
Frame A~D (option card mounting box)
Frame E and F
(Option card mounting box)
Fig 2-3 Fig 2-4
