Delta CP2000 Series User Manual

Chapter 12 Description of Parameter SettingsCP2000
12.1-06-30
Code Error name
Normal
mode
Fire Mode
Enable bypass
function
142
Auto-tuning error 1 (no feedback current
error) (AUE1)
Not
detectable
Not-detectable Not-detectable
143
Auto-tuning error 2 (motor phase loss
error) (AUE2)
Not
detectable
Not-detectable Not-detectable
144
Auto-tuning error 3 (no-load current I
0
measuring error) (AUE3)
Not
detectable
Not-detectable Not-detectable
148
Auto-tuning error 4 (leakage inductance
Lsigma measuring error) (AUE4)
Not
detectable
Not-detectable Not-detectable

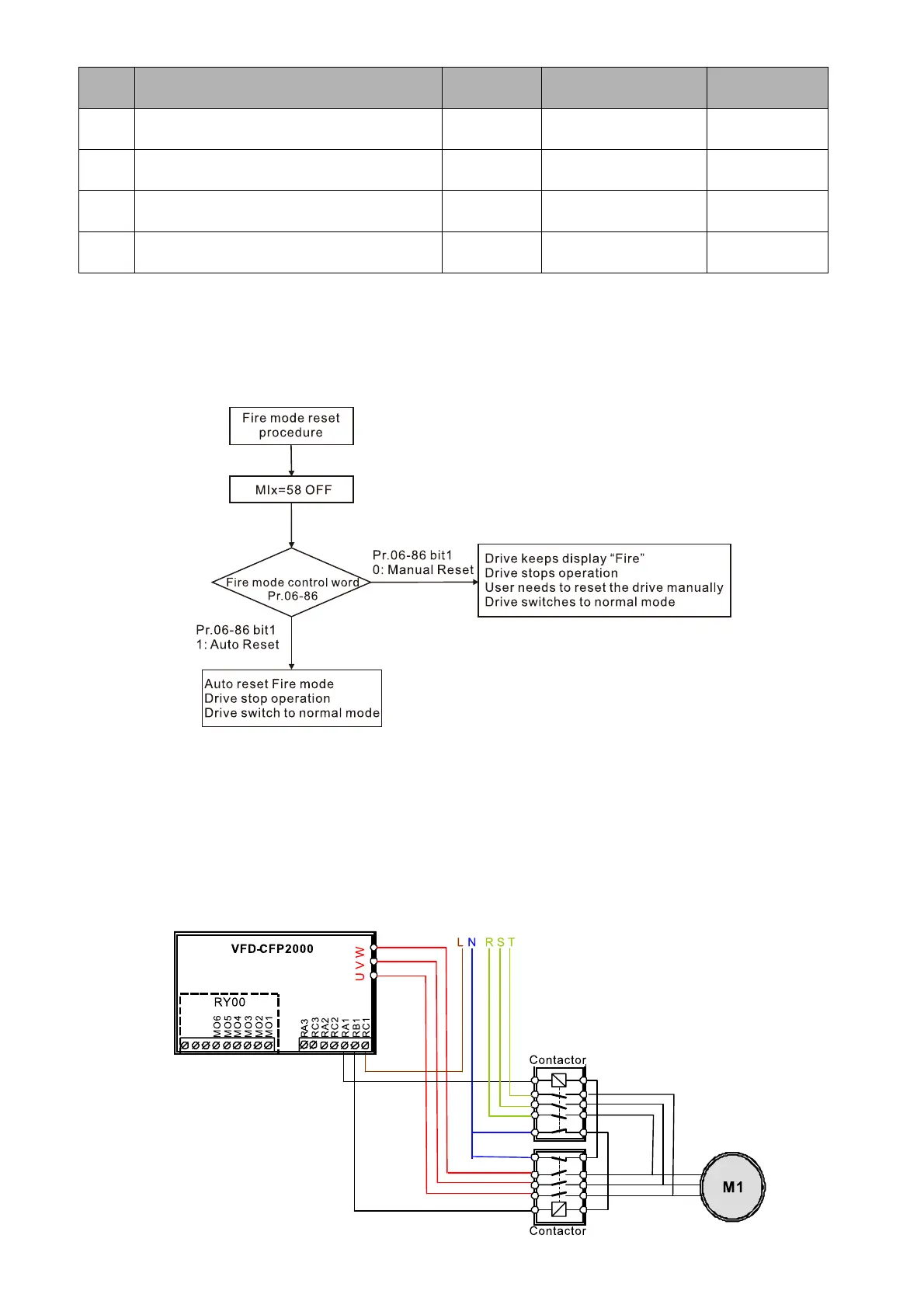

The Fire mode reset procedure:
When the terminal MIx=58 changes from ON to OFF, the drive starts to run “fire mode reset procedure”,
and determines whether to “Manual reset” or “Auto reset” fire mode according to the selection of
Pr.06-86 bit1.
Wiring Diagram:
1. When AC power is ON, RB1 and RC1 are ON, and RA1 and RC1 are OFF.
2. When operating in fire mode and bypass indication function is disabled, RB1 and RC1 are ON, and
the motor is driven by the drive.
3. When operating in fire mode and bypass indication function is enabled, RA1 and RC1 are ON, and
the motor runs under mains electricity.

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
