35

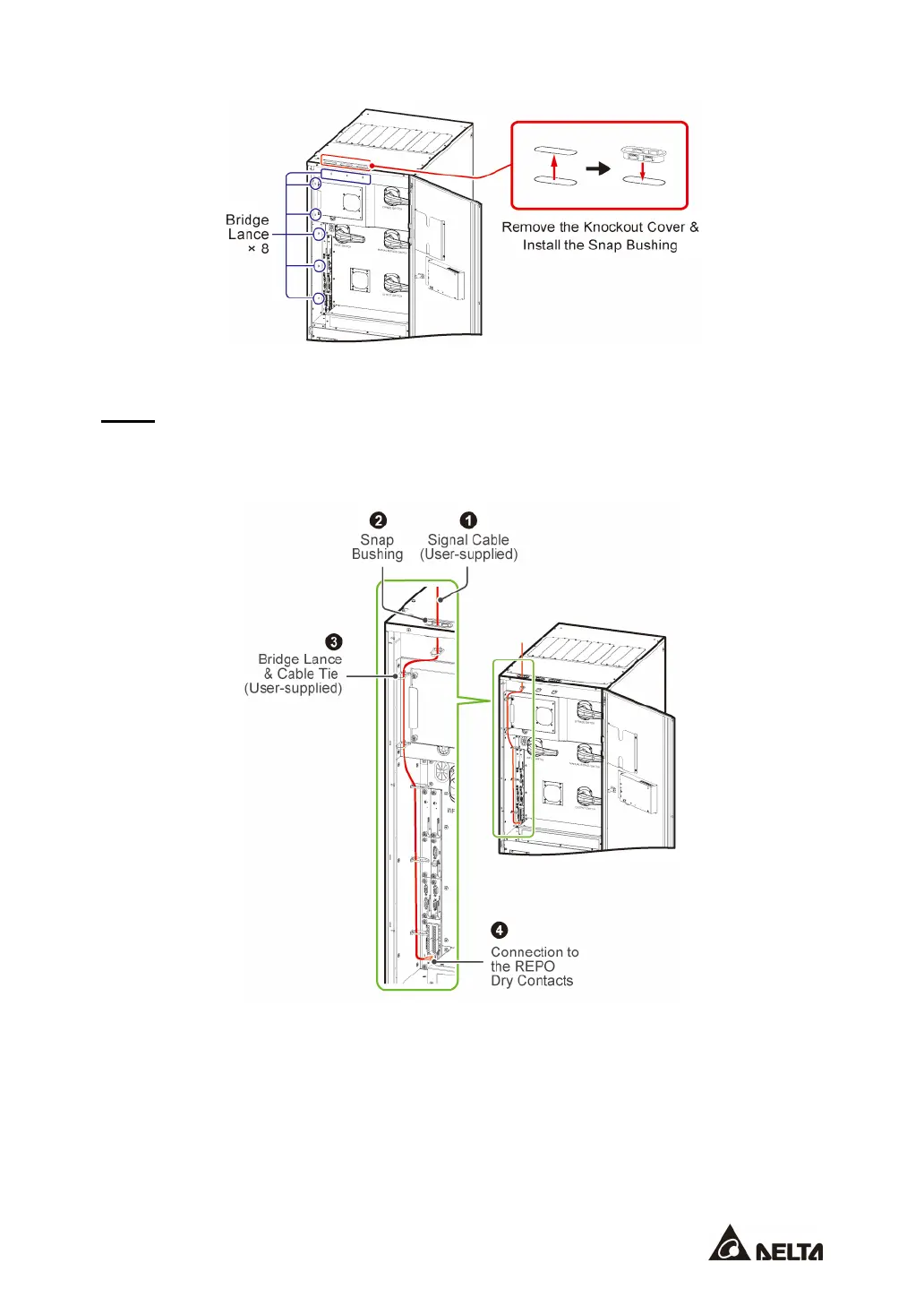

(Figure 4-5: 300kVA UPS_ Signal Cable Routing-1)
Step 2
Refer to instructions
❶
~
❹
below to properly route and secure the signal cable with cable
ties (user-supplied). There are eight bridge lances that you can choose to use.
(Figure 4-6: 300kVA UPS_ Signal Cable Routing-2)
