Delta DPS Series User Manual

37
Step 2
For top/ bottom entry, route the user-supplied signal cable (
❶
) through the snap bushing
(
❷
), use a cable tie (user-supplied) for each wire mount (
❸
) to fix the signal cable on the
frame, and connect the signal cable to the REPO dry contacts (
❹
).
NOTE:
The number of the wire mounts and cable ties shown in the figures are for
reference only. The actual number depends on your on-site application.

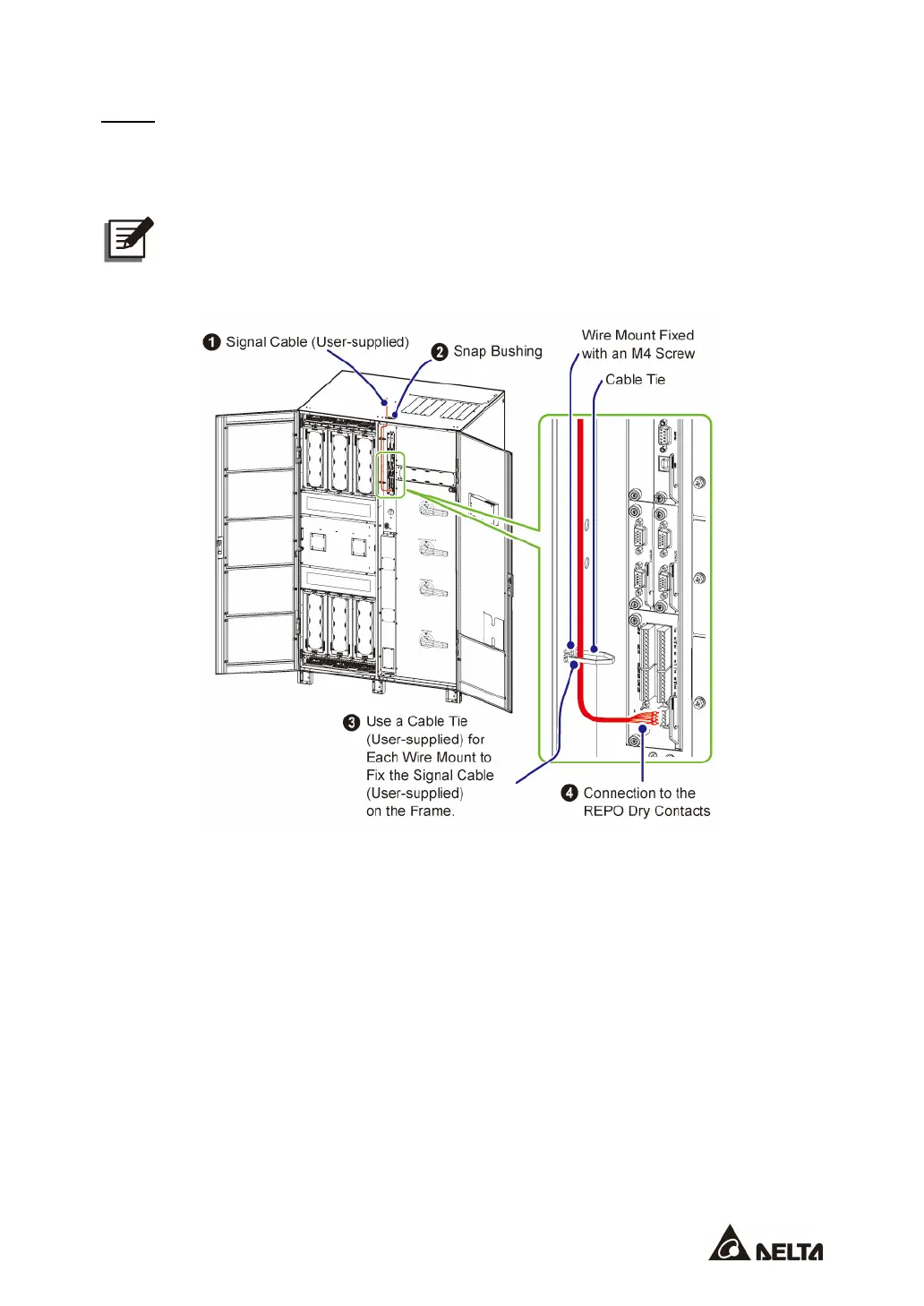

(Figure 4-8: 400/ 500/ 600kVA UPS_ Signal Cable Routing-2_ Top Entry)
