63

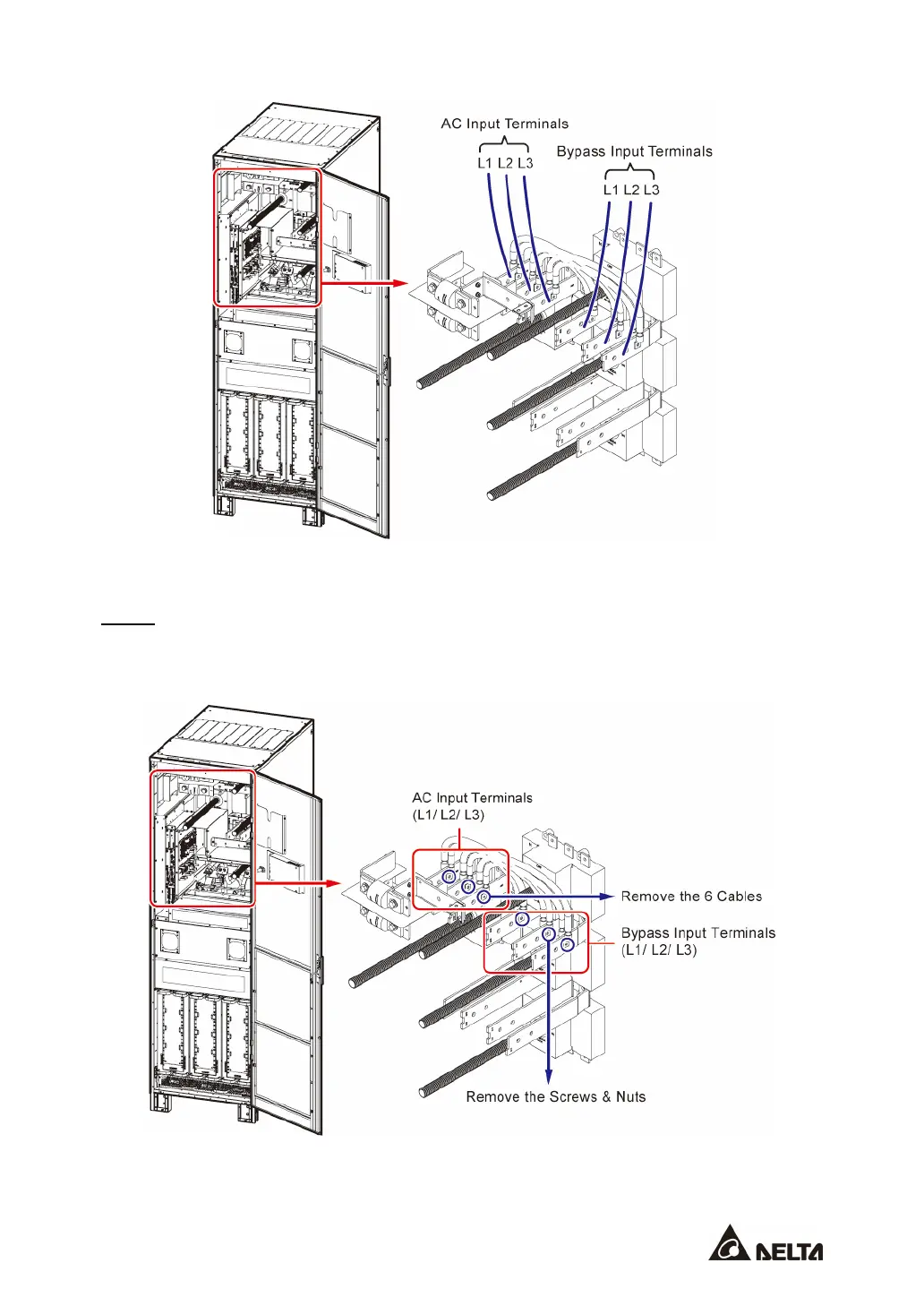

(Figure 5-8: 300kVA UPS_ AC Input Terminals & Bypass Input Terminals)
Step 2
Remove all the cables between the AC Input terminals (L1/ L2/ L3) and the Bypass Input
terminals (L1/ L2/ L3).
(Figure 5-9: 300kVA UPS_ Remove the Cables between the AC Input Terminals
& Bypass Input Terminals)
