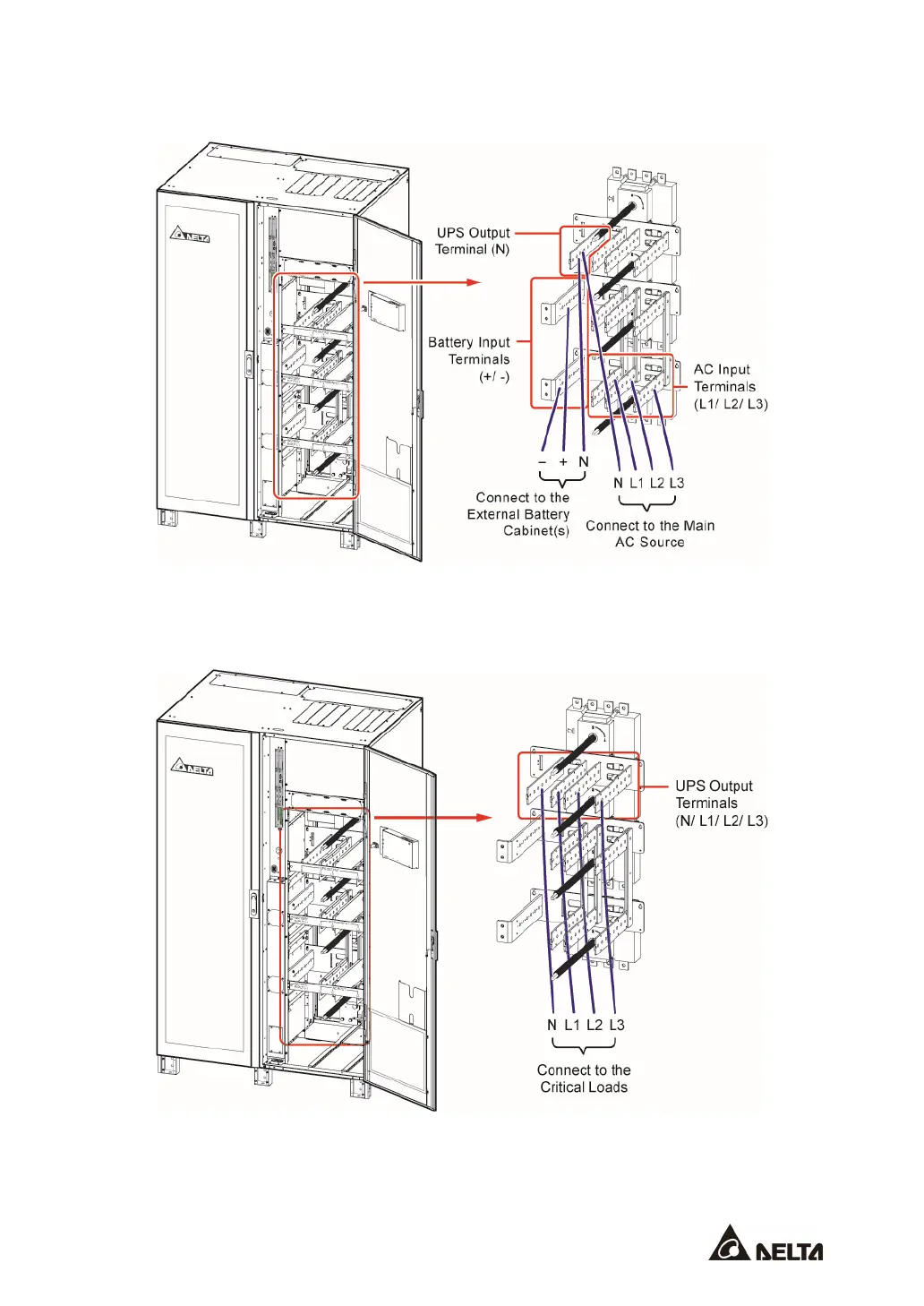

Single Input_ Bottom Wiring_ Step 1
(Figure 5-29: 400/ 500/ 600kVA UPS Single Unit Single Input_ Bottom Wiring _ Step 1)
Single Input_ Bottom Wiring_ Step 2
(Figure 5-30: 400/ 500/ 600kVA UPS Single Unit Single Input_ Bottom Wiring _ Step 2)
