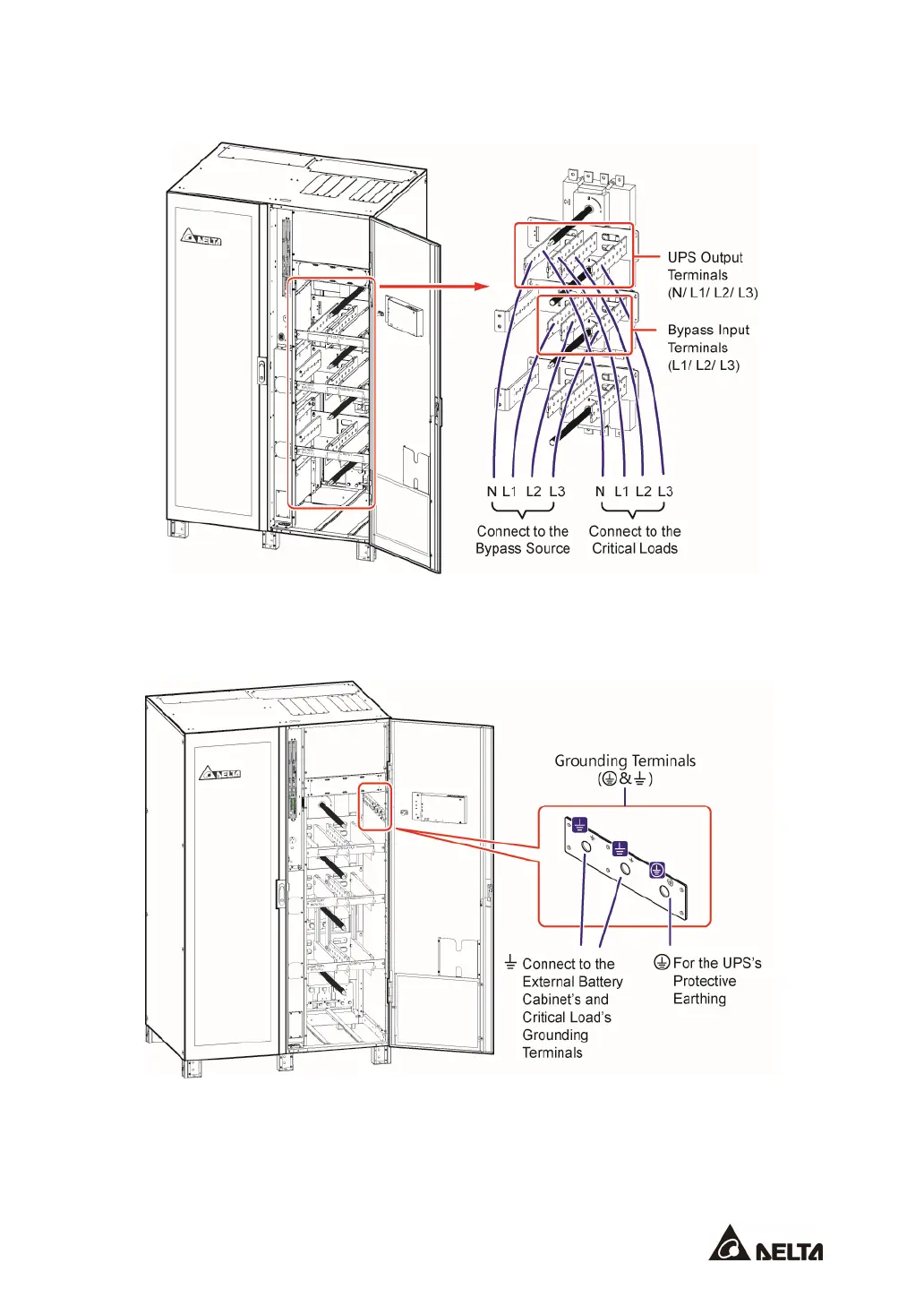

Dual Input_ Bottom Wiring_ Step 2
(Figure 5-36: 400/ 500/ 600kVA UPS Single Unit Dual Input_ Bottom Wiring_ Step 2)
Dual Input_ Bottom Wiring_ Step 3
(Figure 5-37: 400/ 500/ 600kVA UPS Single Unit Dual Input_ Bottom Wiring_ Step 3)
