93

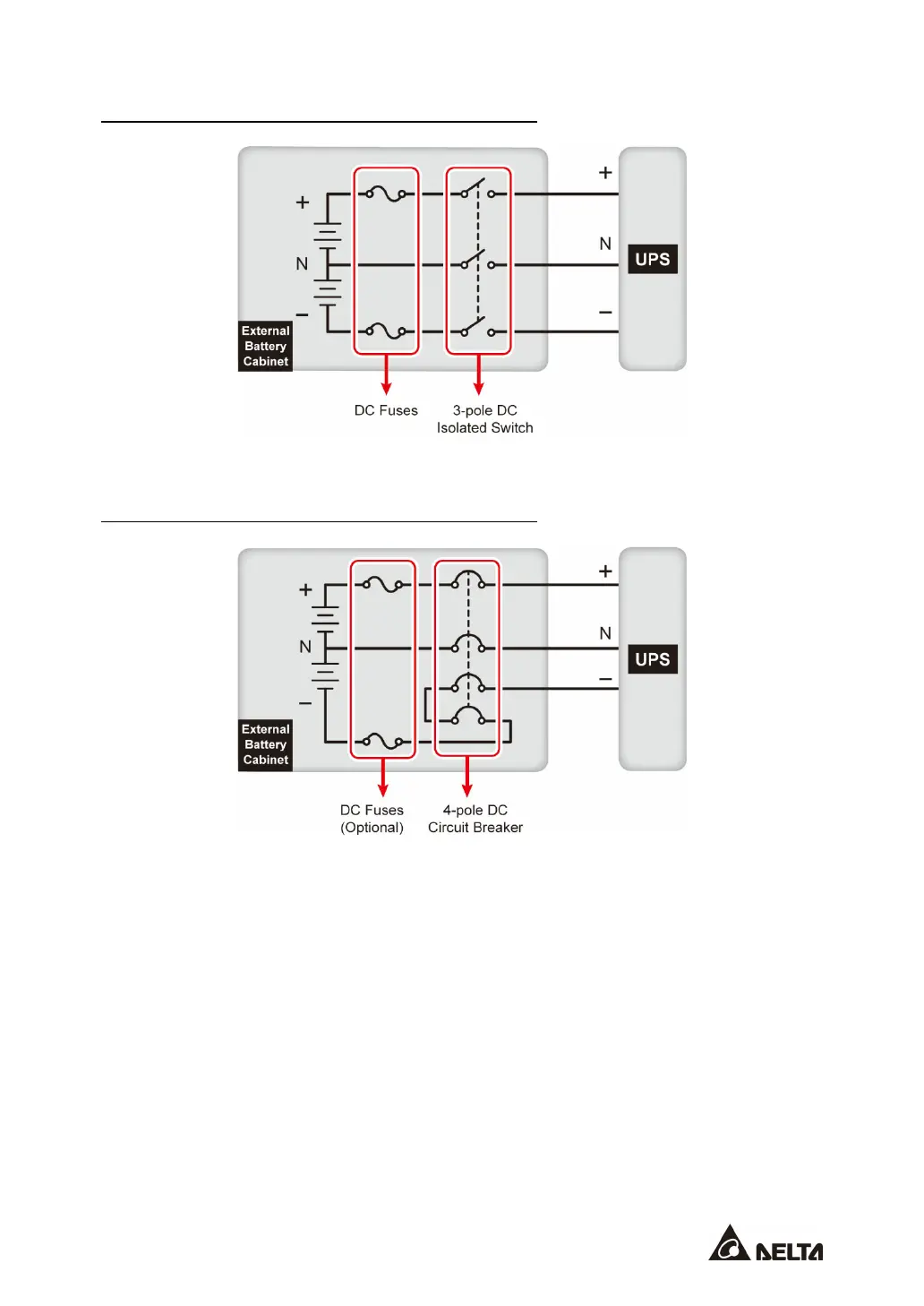

External Battery Cabinet’s Protective Device (Option 2)
(Figure 5-49: Installation of a 3-pole DC Isolated Switch in Series with DC Fuses)
External Battery Cabinet’s Protective Device (Option 3)
(Figure 5-50: Installation of a 4-pole DC Circuit Breaker in Series with Optional DC Fuses)
