Chapter 3 Featured Functions
Note:
If you want to change default PVID of an interface, create VLAN and then includes
the interface as a member.

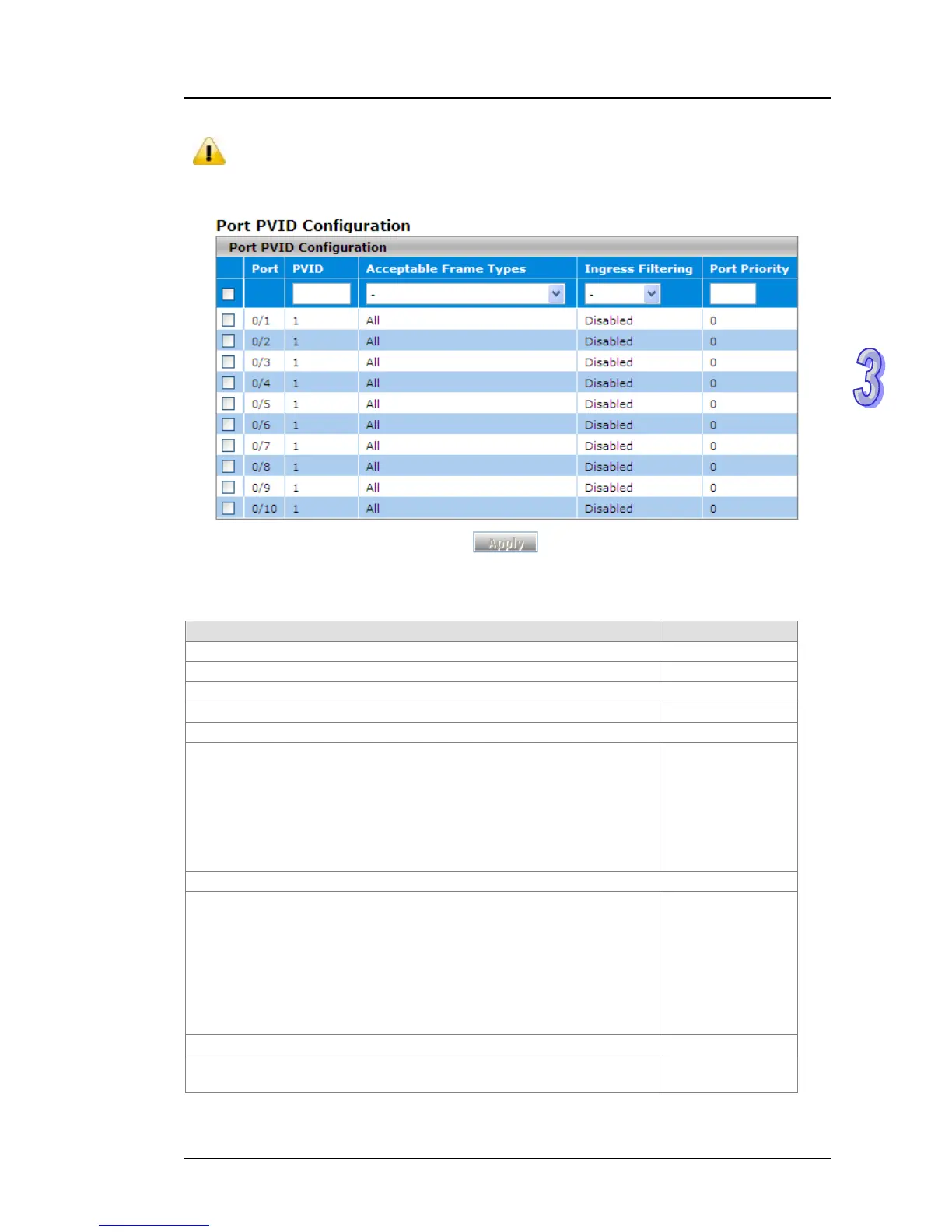

Port PVID Configuration
Description Factory Default
Port
This field displays the interface number or port channel number.
interface number
PVID
This field displays current PVID. 1
Acceptable Frame Types
Specify the types of frames that can be received on the interface:
All: Accept tagged, untagged, and priority-tagged frames. Untagged
or priority-tagged frames are assigned the VLAN ID for this
interface. VLAN-tagged frames are forwarded.
Tagged: Only forward VLAN-tagged frames, drop all other frames.
UnTagged and Priority Tagged: Forward untagged and
priority-tagged frames, drop VLAN-tagged frames.
All
Ingress Filtering
Specify whether the ingress filtering is applied:
Enabled: The ingress filtering is enabled for the interface. If the
interface is not a member of VLAN with which the frame is
associated, an incoming frame is dropped. In a tagged frame, VLAN
is identified by the VLAN ID in the tag. In an untagged frame, VLAN
is PVID.
Disabled: The ingress filtering is disabled for the interface. All
frames are forwarded.
Disabled
Port Priority
Enter the default priority that is assigned to incoming untagged
packets. Enter a number between 0 and 7. 7 is the highest priority.
0
3-59
To Next Page
