DVS Series Managed Industrial Ethernet Switches User’s Manual
The steps of configuring an ACL:
1. Create a MAC-based ACL name.
2. Create a rule and assign it to an ACL.
3. Assign an ACL to an interface.

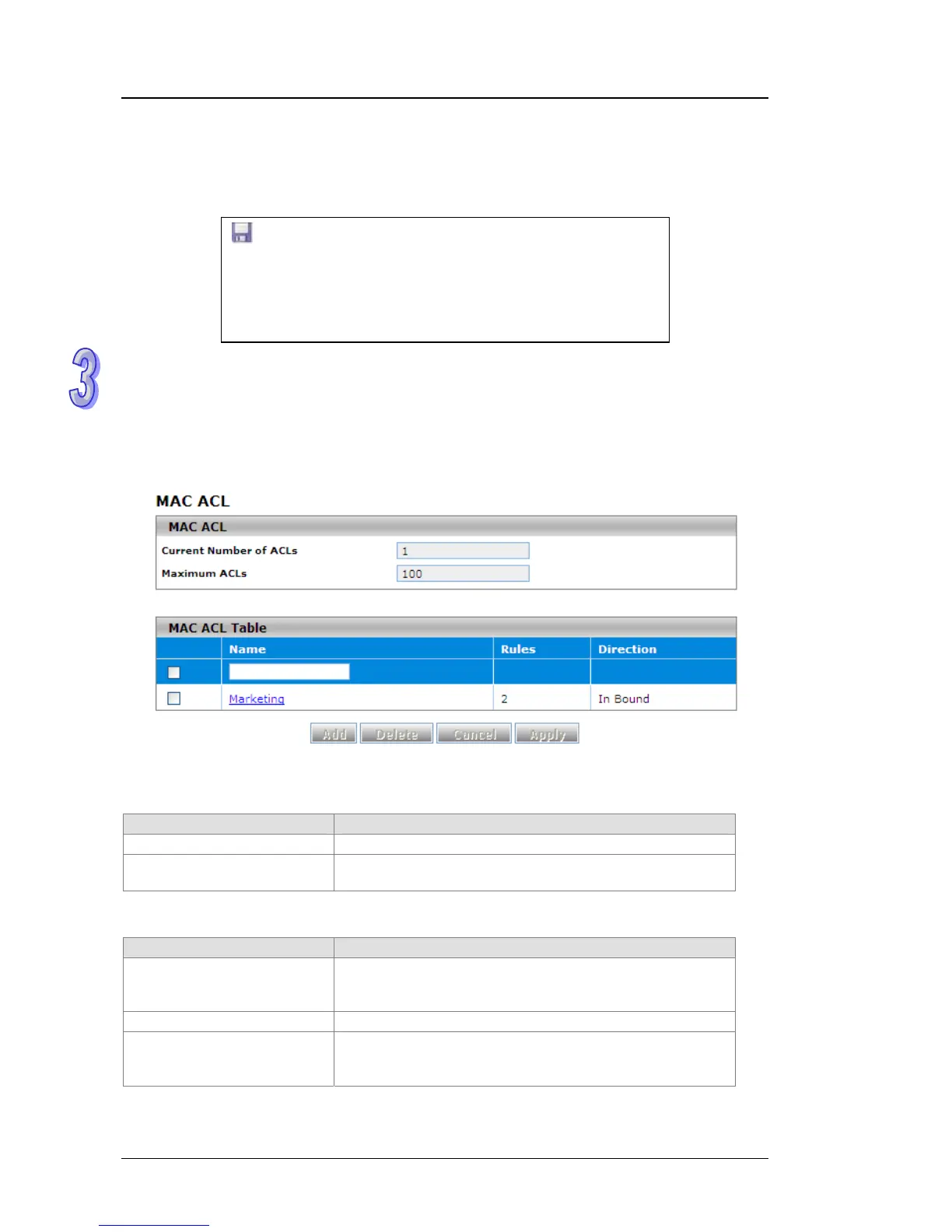

3.10.1 MAC ACL
A MAC ACL consists of a set of rules that are matched sequentially to compare the packet. With a
MAC ACL, you can specify the MAC address of the source device, destination device, or both.
When a packet matchs the criteria with a rule, and the specified rule action (permit or deny) is
applied, then any additional rules will not be checked whether the packet is match or not.
MAC ACL
Setting Description
Current Number of ACLs The field displays the sum of the configured ACLs.
Maximum ACLs
The field displays the maximum number of MAC ACLs that
can be configured (100).
MAC ACL Table
Setting Description
Name
Specify a name for an ACL. The name can include
alphabetic, numeric, dash, underscore, or space
characters. It must start with an alphabetic character.
Rules The number of rules that are configured for the MAC ACL.
Direction
The direction of packet traffic that is affected by the MAC
ACL. This is a fixed entry that always shows In Bound; only
inbound traffic is subject to the MAC ACL.
IMPORTANT:
Make sure that you save the configuration in the Save
Configuration page after you have applied the configuration
changes. (Save ConfigSave Configuration) If you don’t
save the configuration, then the configuration will be cleared
after the switch is rebooted.
3-76
