Chapter 4 Installation & Wiring
20
H
D
W

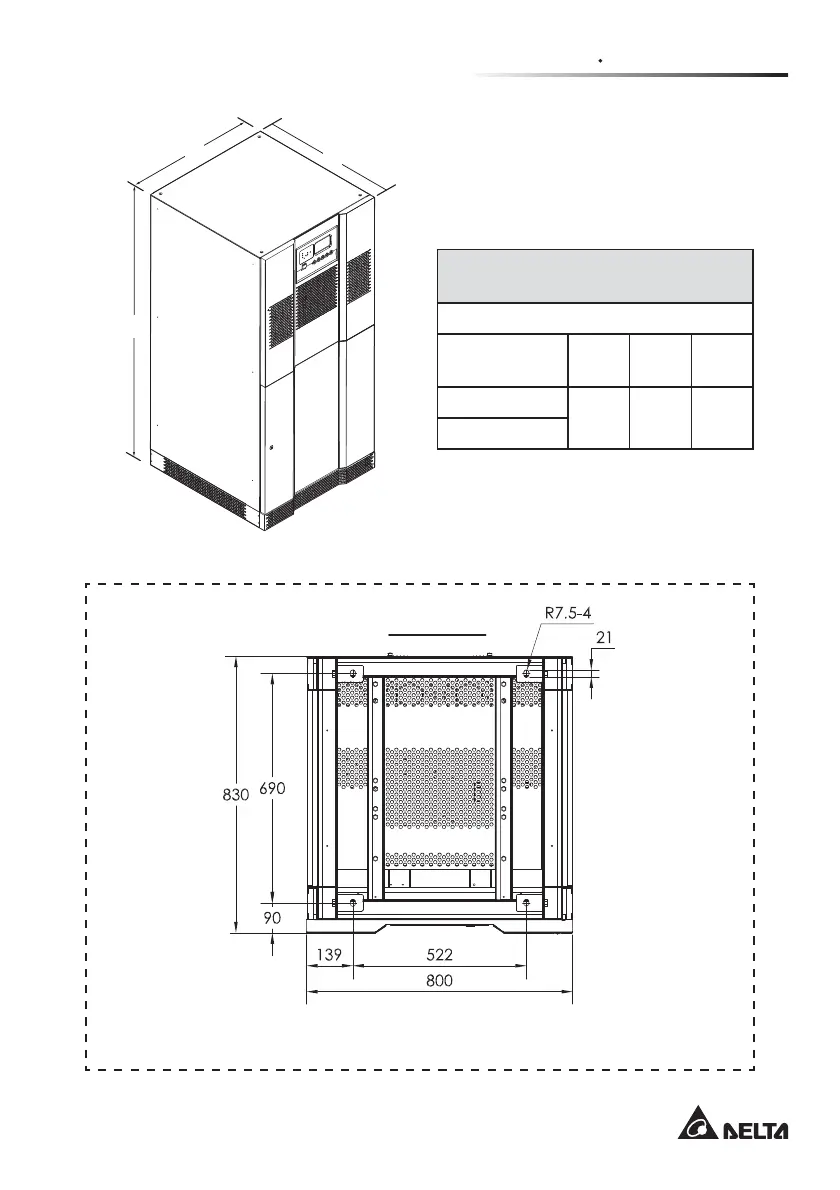

Figure 4-3
836XQLWSUR¿OHGLPHQVLRQVWDEOH
(Model 400/ 230Vac only)
Figure 4-3
Rating
(kVA)
Width
(mm)
Depth
(mm)
Height
(mm)
80K - 12P
800 830 1700
100~120K - 6P
Figure 4-4
Bottom View
(Front)
