Delta NT Series - Page 26

21
Ultron NT Series
D
W
H

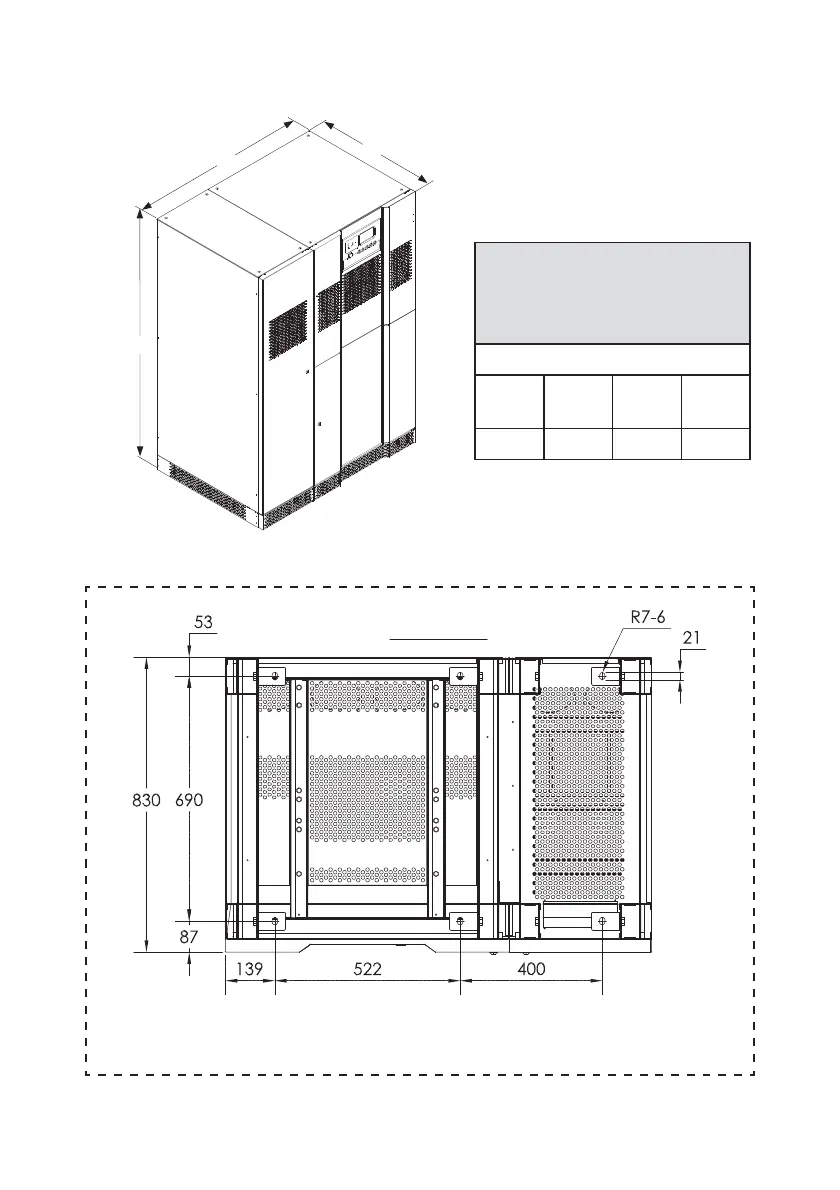

Figure 4-5
836XQLWSUR¿OHGLPHQVLRQVWDEOH
(100kVA Model_ Input: 480Vac;
Bypass: 208/ 120Vac; Output:
208/ 120Vac)
Figure 4-5
Rating
(kVA)
Width
(mm)
Depth
(mm)
Height
(mm)
100 1200 830 1700
Figure 4-6
Bottom View
(Front)
