Ultron NT Series
Installation Procedures:

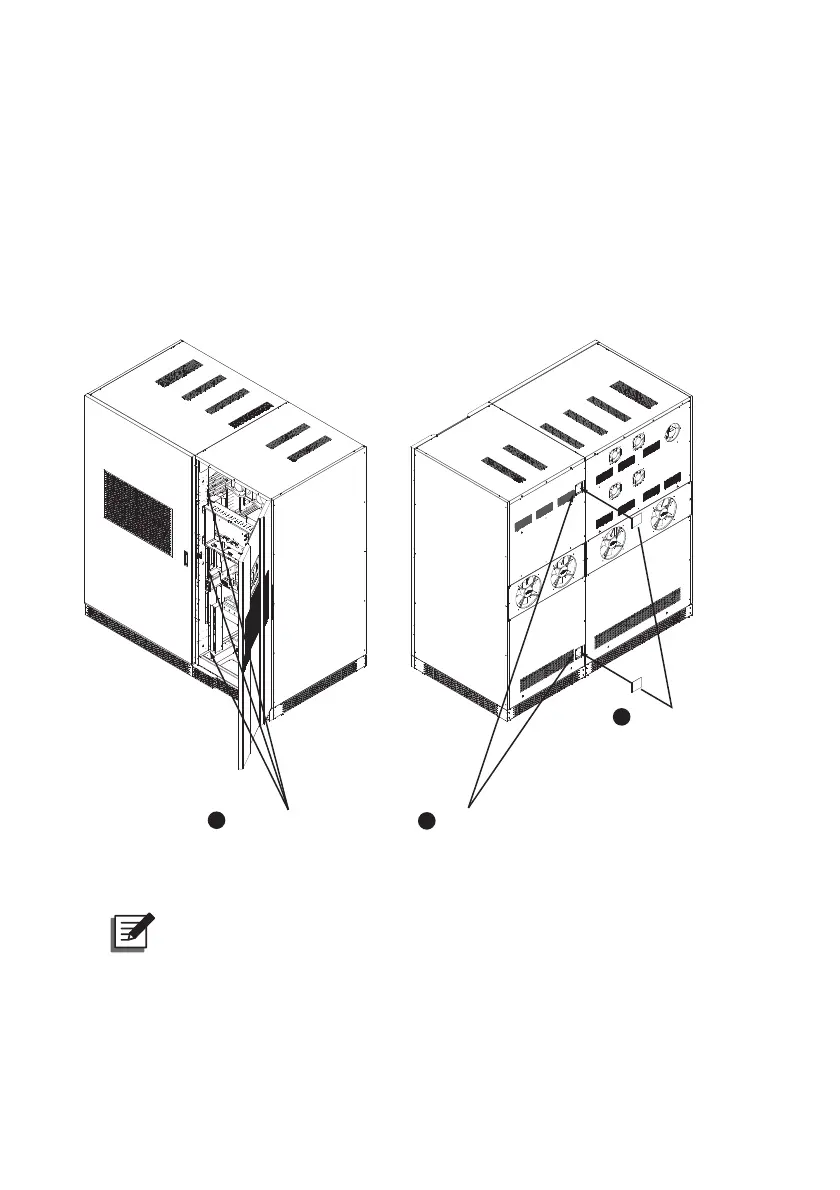

1. Join the cabinets:
- Position two cabinets.
- Use the provided screws to join the two cabinets together.
- There are 5 junction points (see Figure 4-35).
(Front) (Rear)
Fix the 3 provided
screws here.
Remove the two
square plates.
Fix the 2 provided
screws here.
1
2
3
Figure 4-35
NOTE:
The above mentioned cabinet connection procedures can only be
executed after the UPS is fixed in the designated location. After the
cabinet connection is done, do not move the UPS by any tools or
HTXLSPHQW
