Amplon N Series
5.2 Input/ Output Wiring
NOTE :
1. The UPS doesn’t have any built-in backfeed protection device. Please
install a backfeed protection device in front of the input power. The
suggested backfeed protection device rating is as follows:
UPS Suggested Backfeed Protection Device Rating
6kVA 240VAC/ 40A
10kVA 240VAC/ 65A
2. Each model’s input/ output wiring methods are the same. Below, we only
use model UPS103N2004N0B0 (10 kVA) as an example for illustration.
1

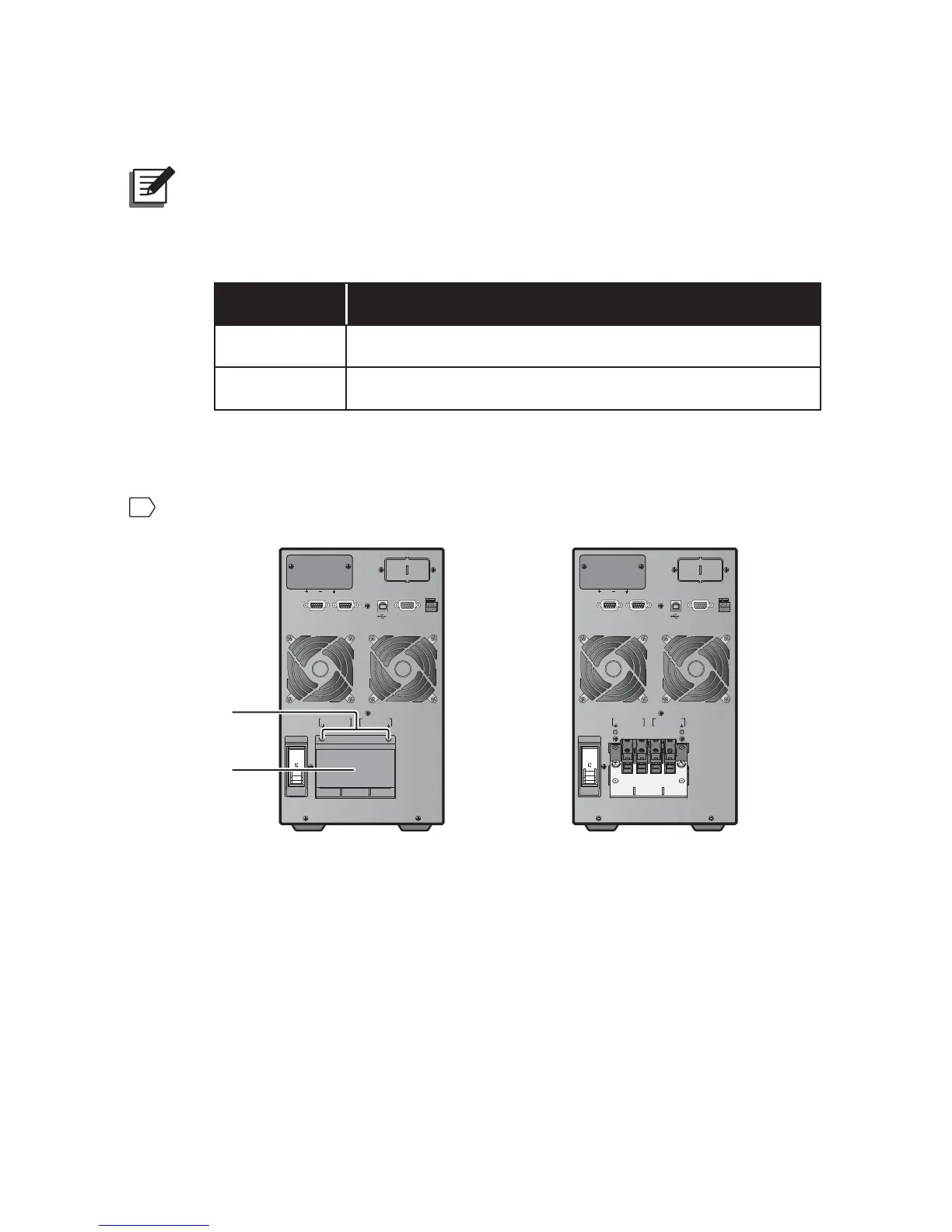

Remove the two screws from the wiring panel shown below.
)LJXUH5HPRYDORI:LULQJ3DQHO
(After Removal of Wiring Panel) (Before Removal of Wiring Panel)
ON
OFF
RS-23 2 REPOREPO
PARALLE L PARALLE L
INPUT
BREAKER
UPS O UTPU T
N
N
L
L
AC INPUT
EXTERNAL BATT. CONNECTOR 240Vdc.48A
MINI SLOT
ON
OFF
RS-23 2 REPOREPO
PARALLEL PARALLEL
INPUT
BREAKER
UPS O UTPU T
N
N
L
L
AC INPUT
EXTERNAL BATT. CONNECTOR 240Vdc.48A
MINI SLOT
Two Screws
Wiring Panel
