Delta UPS602N2004N035 - External Battery Pack Connection

30
Amplon N Series
5.3 External Battery Pack Connection
NOTE :
1. When connecting the external battery pack with the UPS, you must install
an appropriate non-fuse DC breaker or the fast-acting fuse that meets the
VDIHW\FHUWL¿FDWLRQ'RQRWXVHDQ$&EUHDNHU
2. The breaker must be a 2-pole non-fuse DC breaker with characteristics of
1-pole 250Vdc, 2-pole 500Vdc and 35kA (or above) DC breaking capacity.

z
For models UPS602N2004N035 (6 kVA ) & UPS103N2004N035 (10 kVA ):
1

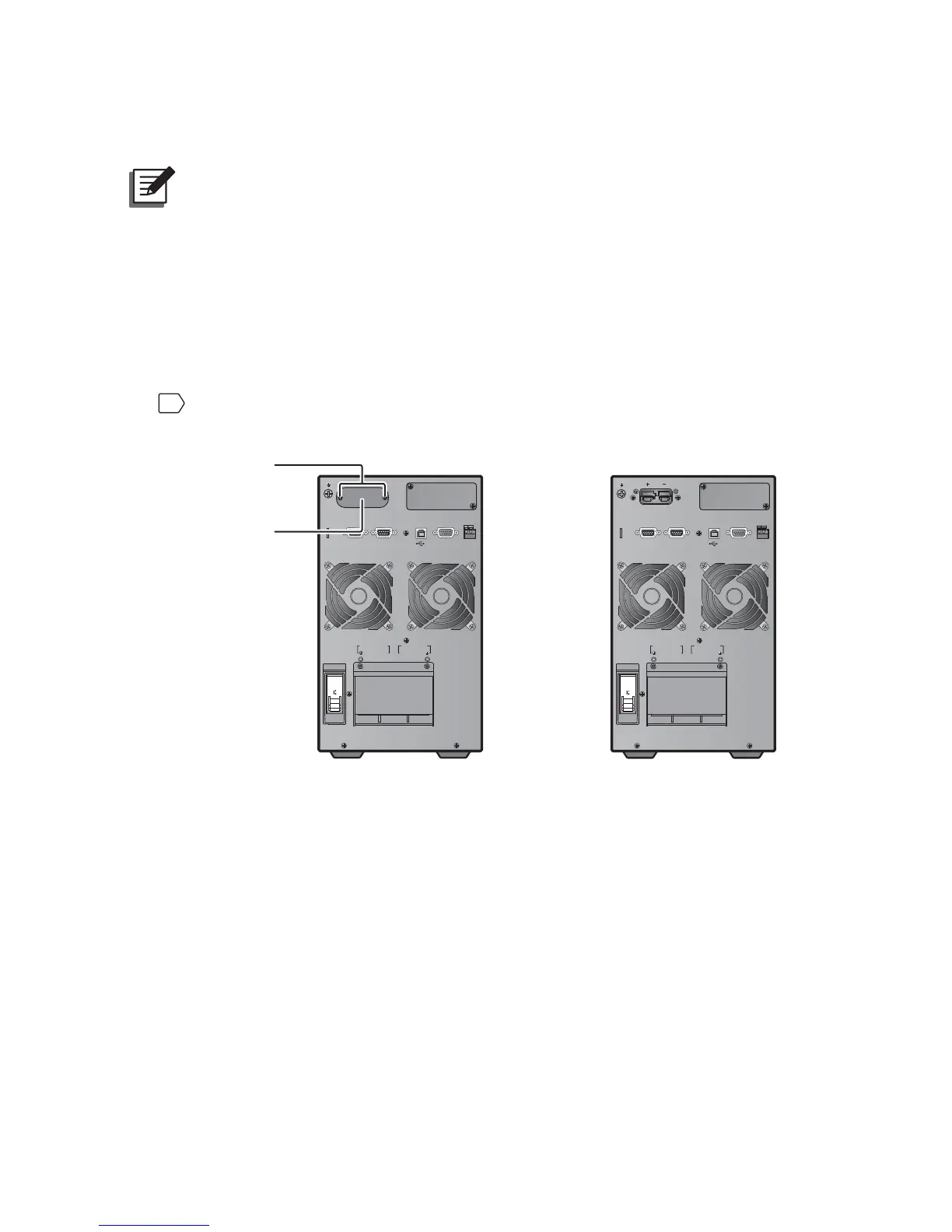

Remove the two screws from the external battery connector’s panel shown
below.
)LJXUH5HPRYDORI([WHUQDO%DWWHU\&RQQHFWRU¶V3DQHO
(After Removal of External
Battery Connector’s Panel)
(Before Removal of External
Battery Connector’s Panel)
ON
OFF

EXTERNAL BATT. CONNECTOR
240Vdc .48A
SMART SLOT
RS-23 2 REPOREPO
PARALLEL PARALLEL
INPUT
BREAKER
UPS O UTPU T
N
N
L
L
AC INPUT
ON
OFF

EXTERNAL BATT. CONNECTOR
240Vdc .48A
SMART SLOT
RS-23 2 REPOREPO
PARALLEL PARALLEL
INPUT
BREAKER
UPS O UTPU T
N
N
L
L
AC INPUT
Two Screws
External Battery
Connector’s Panel
